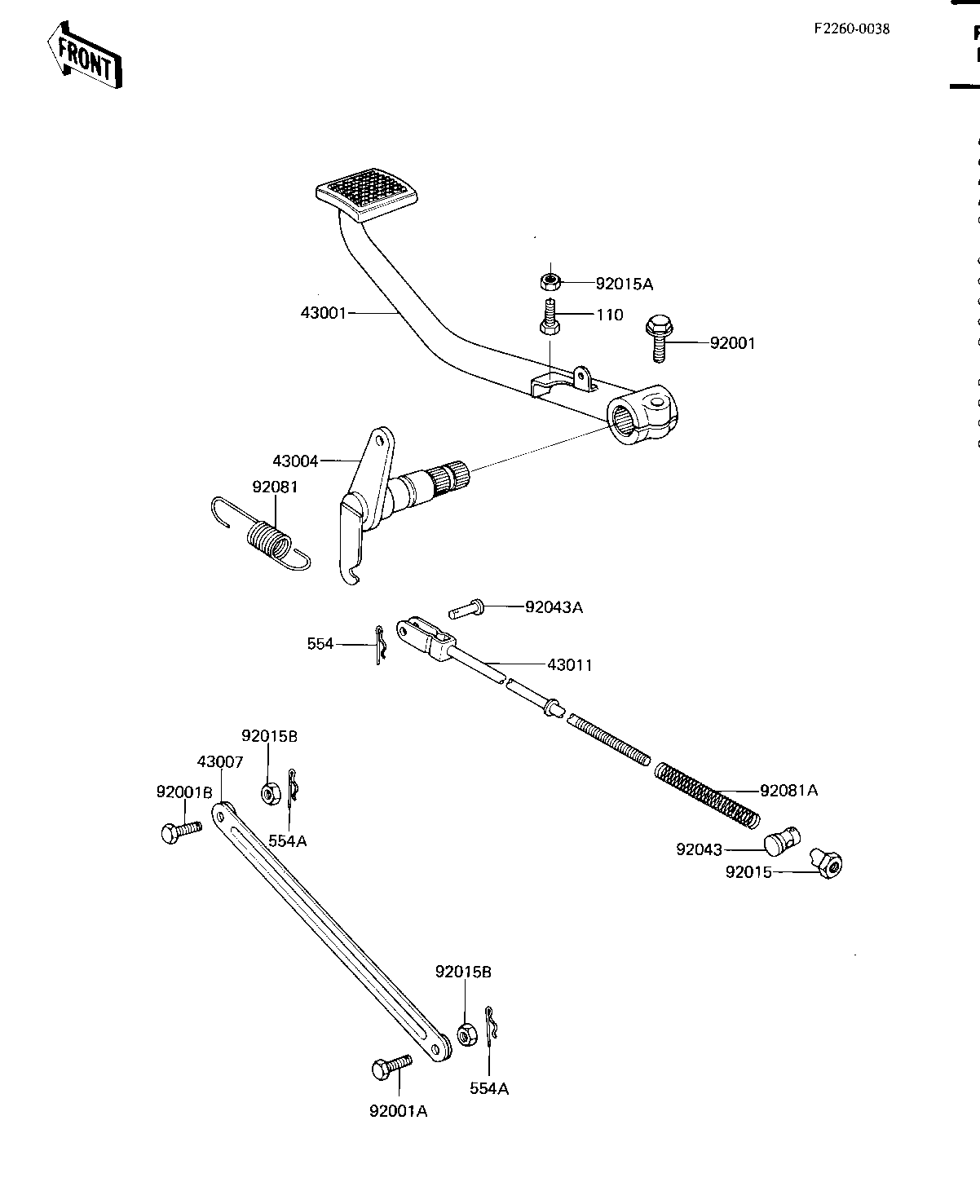

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE 43001 43001-1067 1
SHAFT-BRAKE 43004 43004-1027 1
TORQUE ROD 43007 43007-1016 1
ROD,BRAKE 43011 43011-1016 1
BOLT-FLANGED,8X25 92001 130G0825 1
BOLT 92001A 92001-1519 1
BOLT TORQUE LINK FIT 92001B 92003-103 1
NUT-BRAKE ROD ADJUST 92015 92015-042 1
NUT-6MM 92015A 92015-1078 1
NUT,FLANGED,10MM 92015B 92015-1428 2
PIN-BRAKE ROD 92043 92043-065 1
PIN,BRAKE ROD FITTIN 92043A 92043-090 1
SPRING,BRAKE PEDAL 92081 43005-029 1
SPRING,BRAKE ROD 92081A 43012-001 1
BOLT-UPSET,6X20 110 112G0620 1
WASHER SPRING 10MM 461 461F1000 2
PIN,SNAP 554 554A0600 1
PIN,SNAP 554A 554A0800 2
