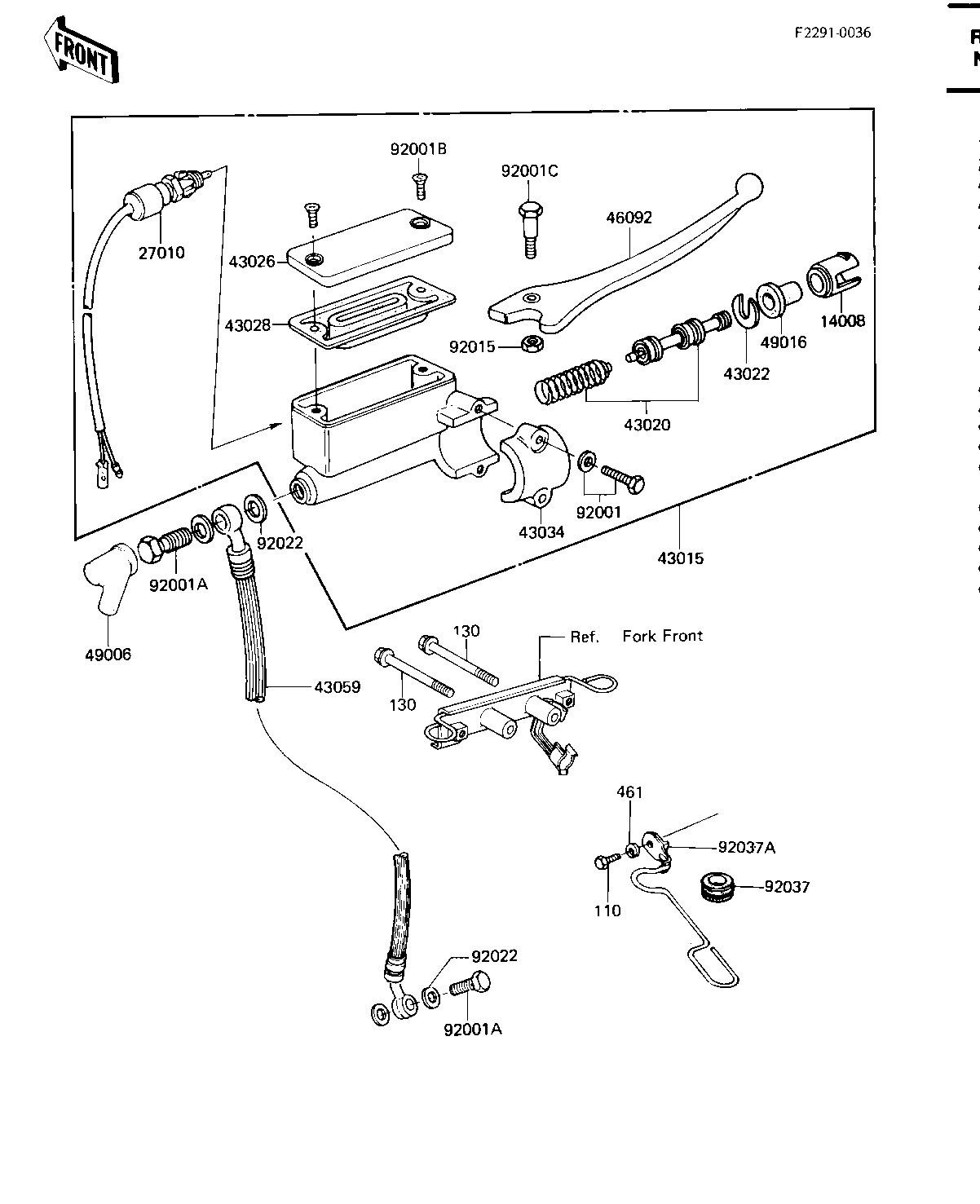

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LINER,PISTON 14008 14008-1007 1
SWITCH,BRAKE 27010 27010-1028 1
CYLINDER ASSY,MASTER 43015 43015-1043 1
PISTON-COMP-BRAKE 43020 43020-1027 1
STOPER,PISTON 43022 43022-1001 1
CAP,OIL CUP 43026 43026-1006 1
DIAPHRAGM 43028 43028-1008 1
HOLDER,MASTER CYLIND 43034 43034-1001 1
HOSE-BRAKE,FR,L=1090 43059 43059-1196 1
LEVER,FRONT BRAKE 46092 46092-1011 1
BOOT,DUST 49006 49006-1041 1
DUST COVER 49016 49016-1010 1
BOLT,HEX HEAD,6X25 92001 43033-003 2
BOLT,OIL,L=23 92001A 92002-1888 2
SCREW,COUNTERSUNK HE 92001B 92001-1055 2
BOLT,CLUTCH LEV FITT 92001C 92001-1056 1
NUT 6MM 92015 312B0600 1
WASHER-OIL BOLT 92022 43067-001 4
DAMPER RUBBER,CYL HS 92037 43064-006 1
CLAMP,CABLE 92037A 92037-1116 1
BOLT-UPSET,6X12 110 112G0612 2
BOLT-UPSET,6X40 110A 112G0640 2
WASHER SPRING 6MM 461 461F0600 4
