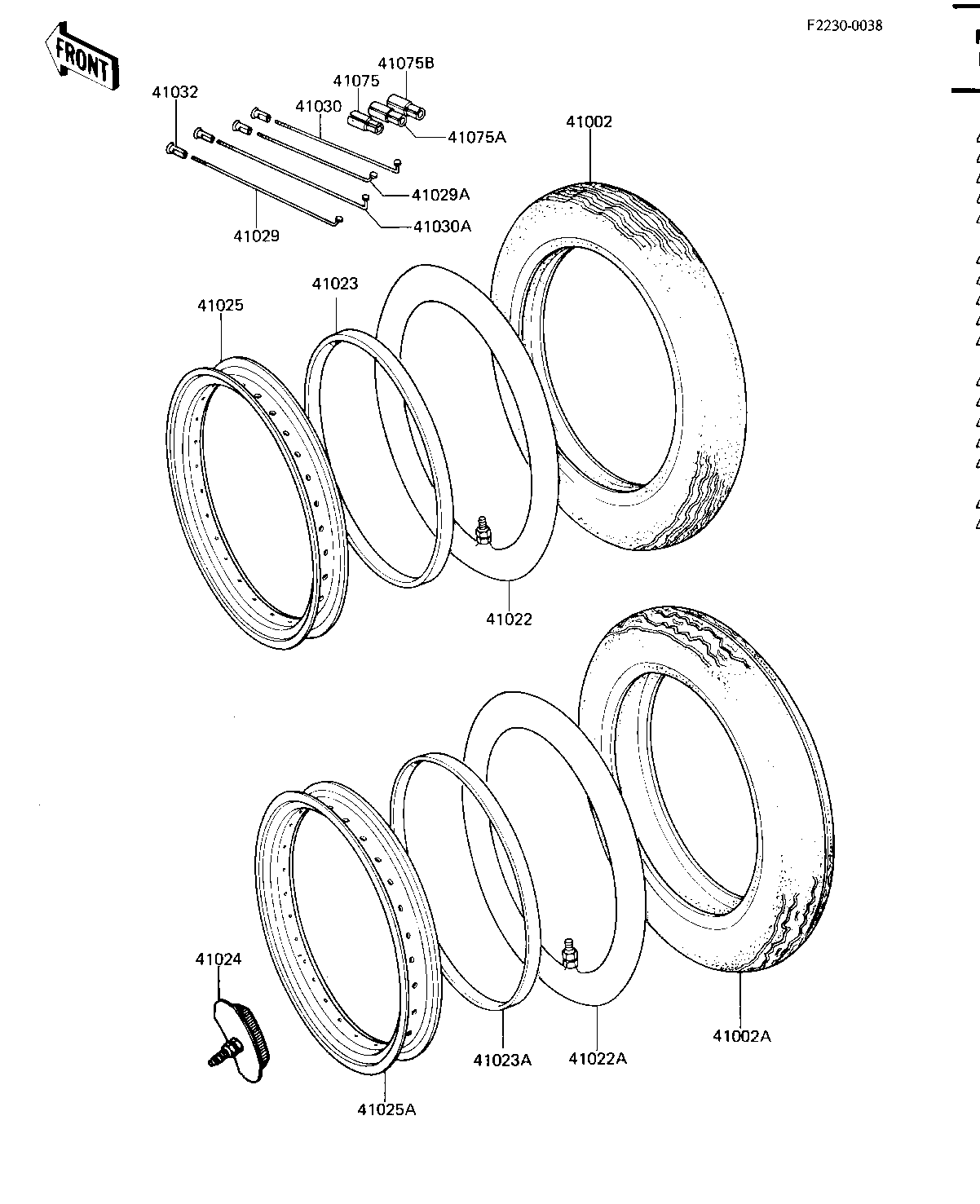

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE 325H-19 F11 41002 41002-1190 1
TIRE 130/90-16 K427 41002A 41002-1191 1
*** N.L.A.*** (Canada) 41022 41022-030 1
TUBE-TIRE,RR,130/90- 41022A 41022-1010 1
BAND RIM 41023 41023-015 1
BAND,RIM,120/90-16 41023A 41023-1023 1
STOPPER-RIM,3.00(DUN 41024 41024-1004 2
RIM,FRONT 41025 41025-1049 1
RIM,REAR 41025A 41025-1050 1
SPOKE-INNER,FRONT 41029 41029-1062 20
SPOKE-INNER,REAR 41029A 41029-1063 20
SPOKE-OUTER,FRONT 41030 41030-1054 20
SPOKE-OUTER,REAR 41030A 41030-1055 20
NIPPLE-SPOKE 41032 41032-1005 80
WEIGHT,BALANCE,10G 41075 41075-1007 AR
WEIGHT,BALANCE,20G 41075A 41075-1008 AR
WEIGHT,BALANCE,30G 41075B 41075-1009 AR
