Parts Diagrams |

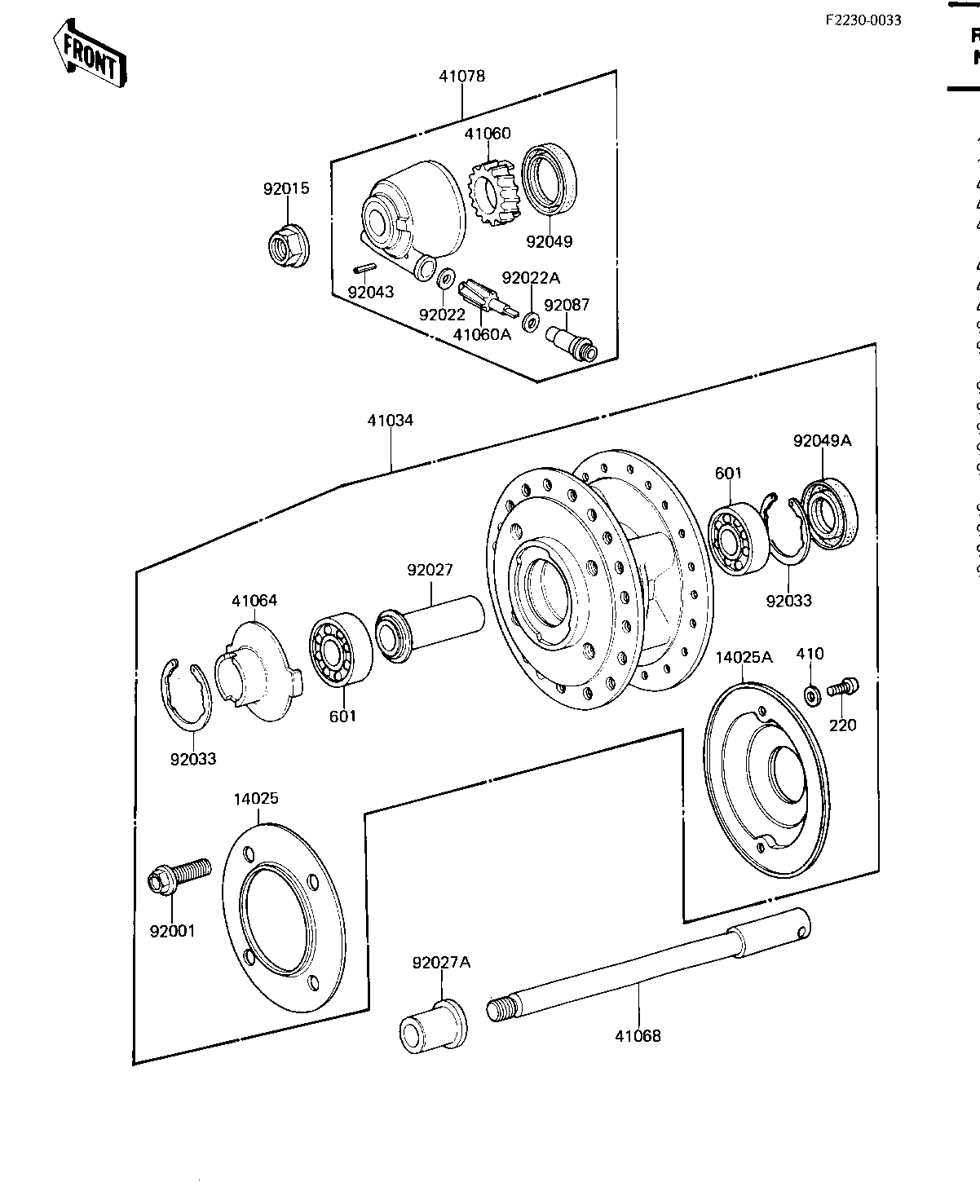

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,DUST,LH | 14025 | 14025-1277 | 1 | ||
COVER,DUST,RH | 14025A | 14025-1341 | 1 | ||
DRUM-ASSY,FR BRK | 41034 | 41034-1033 | 1 | ||
GEAR,SPEEDOMETER | 41060 | 41059-026 | 1 | ||
PINION,SPEEDOMETER,9 | 41060A | 41060-1016 | 1 | ||
RECEIVER,SPEEDOMETER | 41064 | 41064-1006 | 1 | ||
AXLE,FRONT,L=204M/M | 41068 | 41068-1009 | 1 | ||
GEAR BOX ASSY, | 41078 | 41078-1013 | 1 | ||
BOLT,HEX HEAD,10X30 | 92001 | 92001-1173 | 4 | ||
NUT,14MM | 92015 | 92015-1407 | 1 | ||
WASHER THRST SPD PIN | 92022 | 41063-001 | 1 | ||
WASHER THRST SPD PIN | 92022A | 41063-001 | 1 | ||
COLLAR,FR HUB L=55M/ | 92027 | 92027-1223 | 1 | ||
COLLAR,FR AXLE L=30M | 92027A | 92027-1225 | 1 | ||
CIRCLIP,42MM | 92033 | 92033-1041 | 2 | ||
PIN,SPRING | 92043 | 41082-001 | 1 | ||
OIL SEAL,BJN30427-C3 | 92049 | 92049-1057 | 1 | ||
OIL SEAL,AG1144AO | 92049A | 92049-1058 | 1 | ||
BUSHING,METER GEAR | 92087 | 92087-1002 | 1 | ||
SCREW-PAN-CROS | 220 | 220B0514 | 2 | ||
WASHER PLAIN 5MM | 410 | 410B0500 | 2 | ||
UNAVAILABLE IN PRICE BOOK | 601 | 601B63022 | 2 |
COVER,DUST,LH | |
REF # | 14025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,DUST,RH | |
REF # | 14025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DRUM-ASSY,FR BRK | |
REF # | 41034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,SPEEDOMETER | |
REF # | 41060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PINION,SPEEDOMETER,9 | |
REF # | 41060A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RECEIVER,SPEEDOMETER | |
REF # | 41064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
AXLE,FRONT,L=204M/M | |
REF # | 41068 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR BOX ASSY, | |
REF # | 41078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,10X30 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,14MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER THRST SPD PIN | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER THRST SPD PIN | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,FR HUB L=55M/ | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,FR AXLE L=30M | |
REF # | 92027A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP,42MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,SPRING | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL,BJN30427-C3 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL,AG1144AO | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,METER GEAR | |
REF # | 92087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER PLAIN 5MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
UNAVAILABLE IN PRICE BOOK | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
