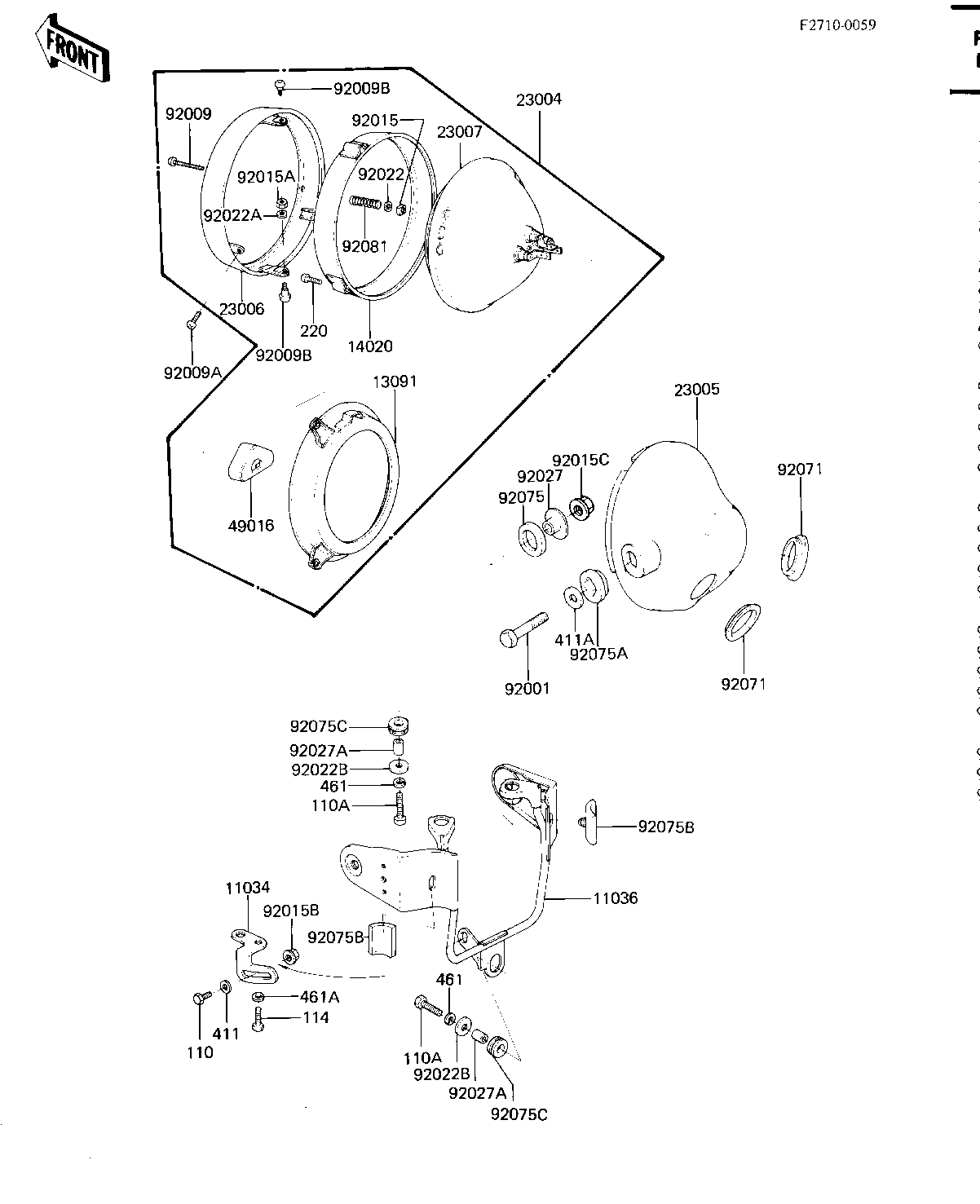

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET, | 11034 | 11034-1792 | 1 | ||
BRACKET-A,HEAD LAMP | 11036 | 11036-1173 | 1 | ||
RING,HEAD LAMP MOUNT | 13091 | 23074-001 | 1 | ||
RING,HEAD LAMP MOUNT | 14020 | 23072-001 | 1 | ||
LAMP-HEAD | 23004 | 23004-1052 | 1 | ||
BODY-COMP-HEAD LAMP | 23005 | 23005-1016 | 1 | ||
RIM,HEAD LAMP | 23006 | 23006-038 | 1 | ||
SEALED BEAM UNIT | 23007 | 23007-1006 | 1 | ||
DUST COVER,HEAD LAMP | 49016 | 49016-1009 | 1 | ||
BOLT,10MM | 92001 | 92007-024 | 2 | ||
SCREW FORCUS ADJUST | 92009 | 23019-021 | 1 | ||
SCREW,PAN HEAD,5X14 | 92009A | 23019-022 | 2 | ||
SCREW-PAN HEAD,5X12 | 92009B | 23019-023 | 2 | ||
NUT,4MM | 92015 | 23020-018 | 1 | ||
NUT,HEAD LAMP RIM FI | 92015A | 23020-023 | 2 | ||
NUT-6MM | 92015B | 92015-1078 | 1 | ||
NUT,FLANGED,10MM | 92015C | 92015-1428 | 2 | ||
WASHER | 92022 | 23021-004 | 1 | ||
WASHER-PLAIN,5MM | 92022A | 23021-012 | 2 | ||
WASHER 6.5X20X1.6T | 92022B | 92022-125 | 3 | ||
COLLAR,HEAD LIGHT | 92027 | 23052-011 | 2 | ||
COLLAR,REAR FENDER | 92027A | 92027-162 | 3 | ||
GROMMET | 92071 | 92071-1008 | 2 | ||
DAMPER RUBBER | 92075 | 23066-021 | 2 | ||
DAMPER RUBBER | 92075A | 23066-022 | 2 | ||
DAMPER RUBBER | 92075B | 92075-1243 | 2 | ||
DAMPER RUBBER,RR FEN | 92075C | 92075-209 | 3 | ||
SPRING FOCUS ADJUST | 92081 | 23014-005 | 1 | ||
BOLT-UPSET 6X14 | 110 | 112B0614 | 1 | ||
BOLT-UPSET | 110A | 112G0625 | 3 | ||
BOLT-SMALL-UPSET,8X1 | 114 | 115G0816 | 1 | ||
SCREW PAN HEAD 3X12 | 220 | 220B0312 | 2 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 1 | ||
WASHER-PLAIN,10MM | 411A | 411D1000 | 2 | ||
WASHER SPRING 6MM | 461 | 461F0600 | 3 | ||
WASHER SPRING 8MM | 461A | 461F0800 | 1 |
