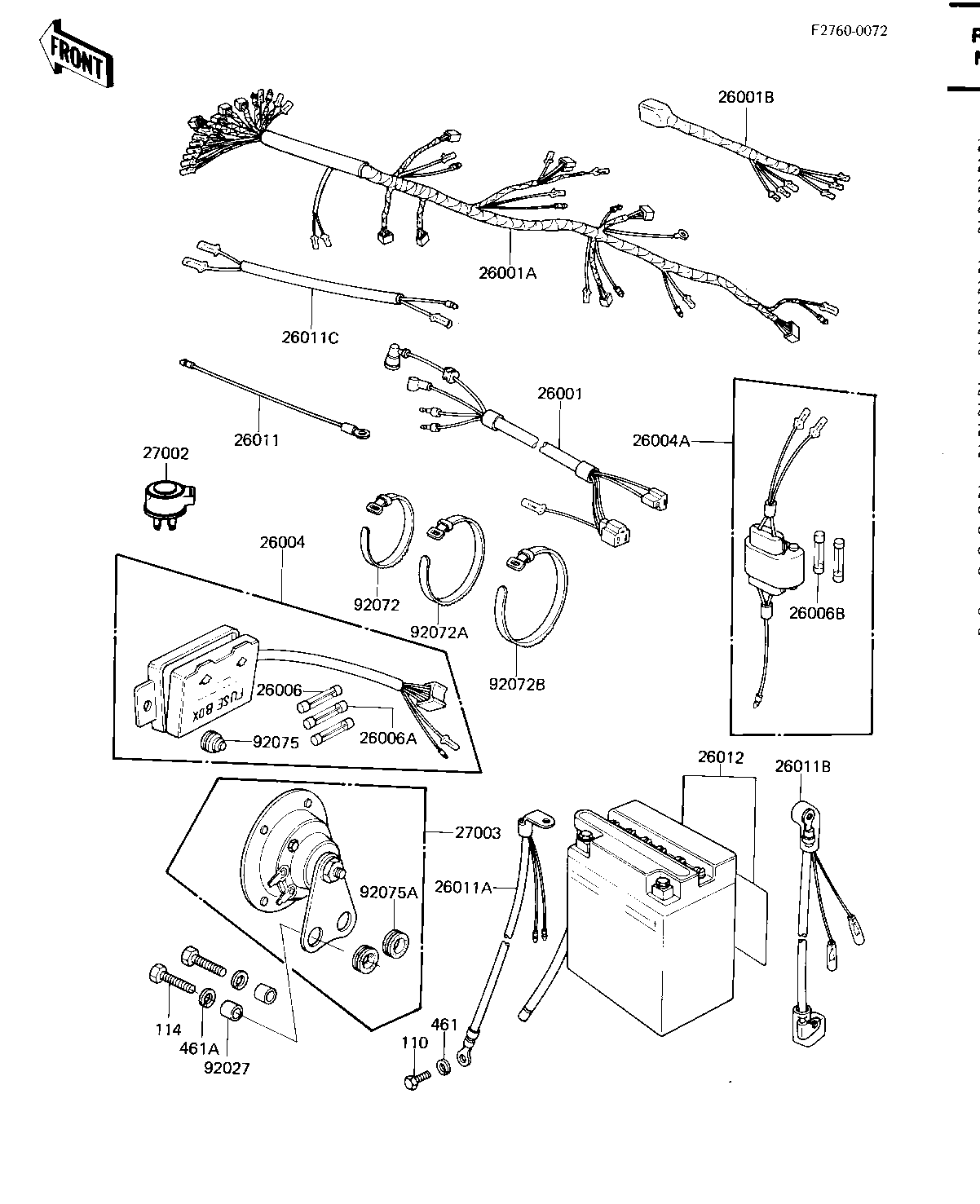

1982 CSR Twin - CHASSIS ELECTRICAL EQUIPMENT
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WIRING HARNESS | 26001 | 26001-1024 | 1 | ||
HARNESS,MAIN | 26001A | 26001-1272 | 1 | ||
WIRING HARNESS,REAR | 26001B | 26002-063 | 1 | ||
FUSE ASSY | 26004 | 26004-035 | 1 | ||
FUSE-ASSY,ACCESSORY | 26004A | 26004-1014 | 1 | ||
FUSE 10A | 26006 | 26006-003 | 3 | ||
FUSE-20A | 26006A | 26006-005 | 2 | ||
FUSE,10A,L=30M/M | 26006B | 26006-1002 | 3 | ||
LEAD WIRE,SIGNAL LAM | 26011 | 26011-063 | 2 | ||
WIRE-LEAD,BATTERY | 26011A | 26011-1146 | 1 | ||
WIRE-LEAD | 26011B | 26011-1131 | 1 | ||
WIRE-LEAD | 26011C | 26011-1132 | 1 | ||
YUA BAT YB14L-A2 | 26012 | 26012-1008 | 1 | ||
RELAY-TURN SIGNAL | 27002 | 27002-011 | 1 | ||
HORN | 27003 | 27003-074 | 1 | ||
COLLAR,HORN FITTING | 92027 | 92027-271 | 2 | ||
BAND,SHORT | 92072 | 92072-030 | 2 | ||
BAND,MIDDLE | 92072A | 92072-031 | 3 | ||
BAND,WIRING HARNESS | 92072B | 92072-056 | 3 | ||
DAMPER RUBBER,FUSE | 92075 | 92075-279 | 1 | ||
DAMPER RUBBER,HORN M | 92075A | 92075-294 | 2 | ||
BOLT-UPSET,6X12 | 110 | 112G0612 | 1 | ||
BOLT-SMALL-UPSET 8X2 | 114 | 115G0825 | 2 | ||
WASHER SPRING 6MM | 461 | 461F0600 | 1 | ||
WASHER SPRING 8MM | 461A | 461F0800 | 2 |
