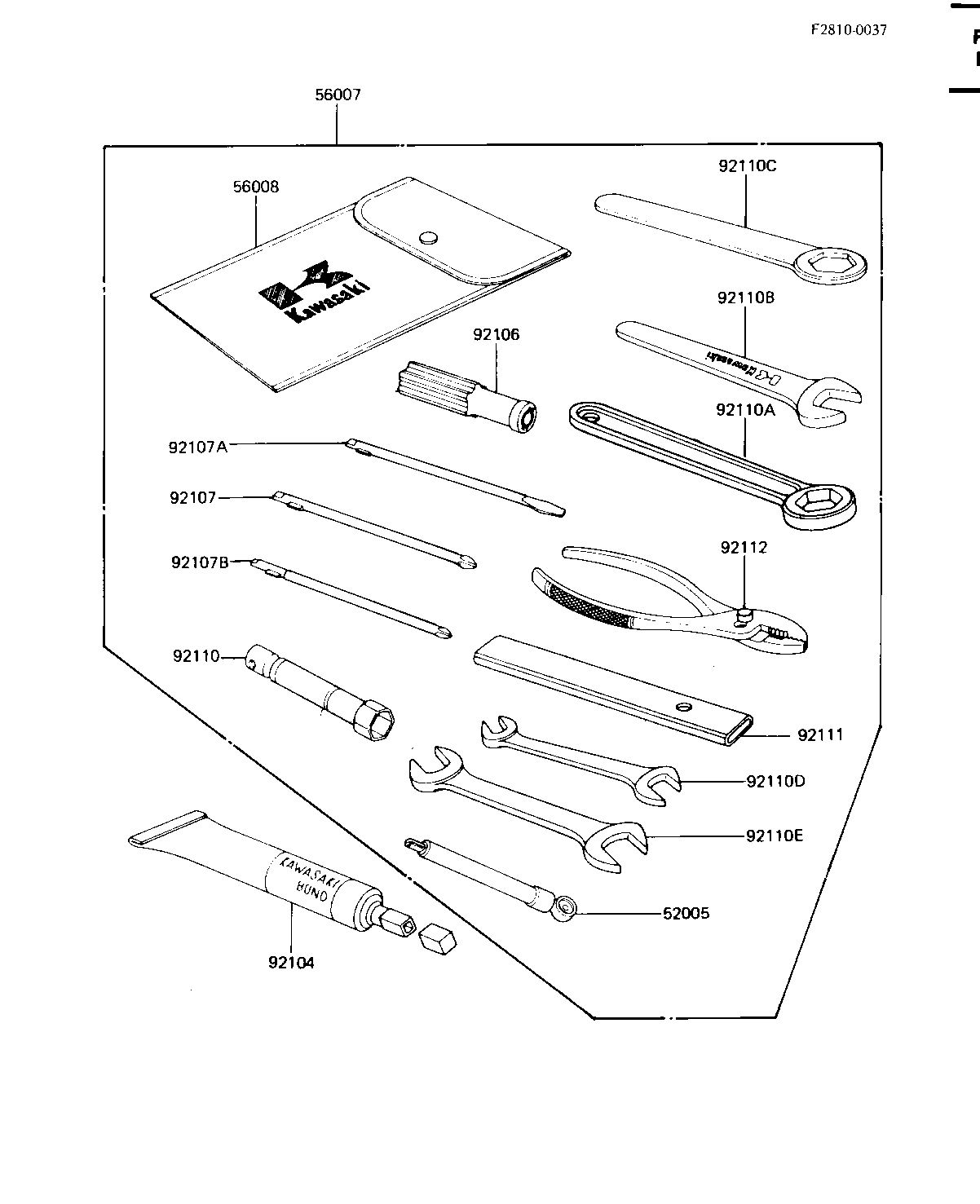

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GAUGE,AIR,3.5KG/CM2 52005 52005-1031 1
TOOLKIT 56007 56007-1071 1
BAG,TOOL 56008 56008-009 1
LIQUID GASKET 92104 92104-002 1
GRIP,SCREW DRIVER 92106 92106-1001 1
TOOL-DRIVER 92107 92107-1052 1
92107-1052 (Canada) 92107A 92107-007 1
92107-1002 (Canada) 92107B 92107-008 1
WRENCH,SPARK PLUG 92110 92108-008 1
TOOL-WRENCH,BOX END, 92110A 92110-1147 1
WRENCH,OPEN END,19M/ 92110B 92110-1004 1
WRENCH,BOX 22MM 92110C 92110-1024 1
TOOL-WRENCH,OPEN END 92110D 92110-1038 1
TOOL-WRENCH,OPEN END 92110E 92110-1153 1
TOOL-WRENCH,OPEN END, 92119 92111-004 1
PLIERS,160MM 92112 92112-003 1
