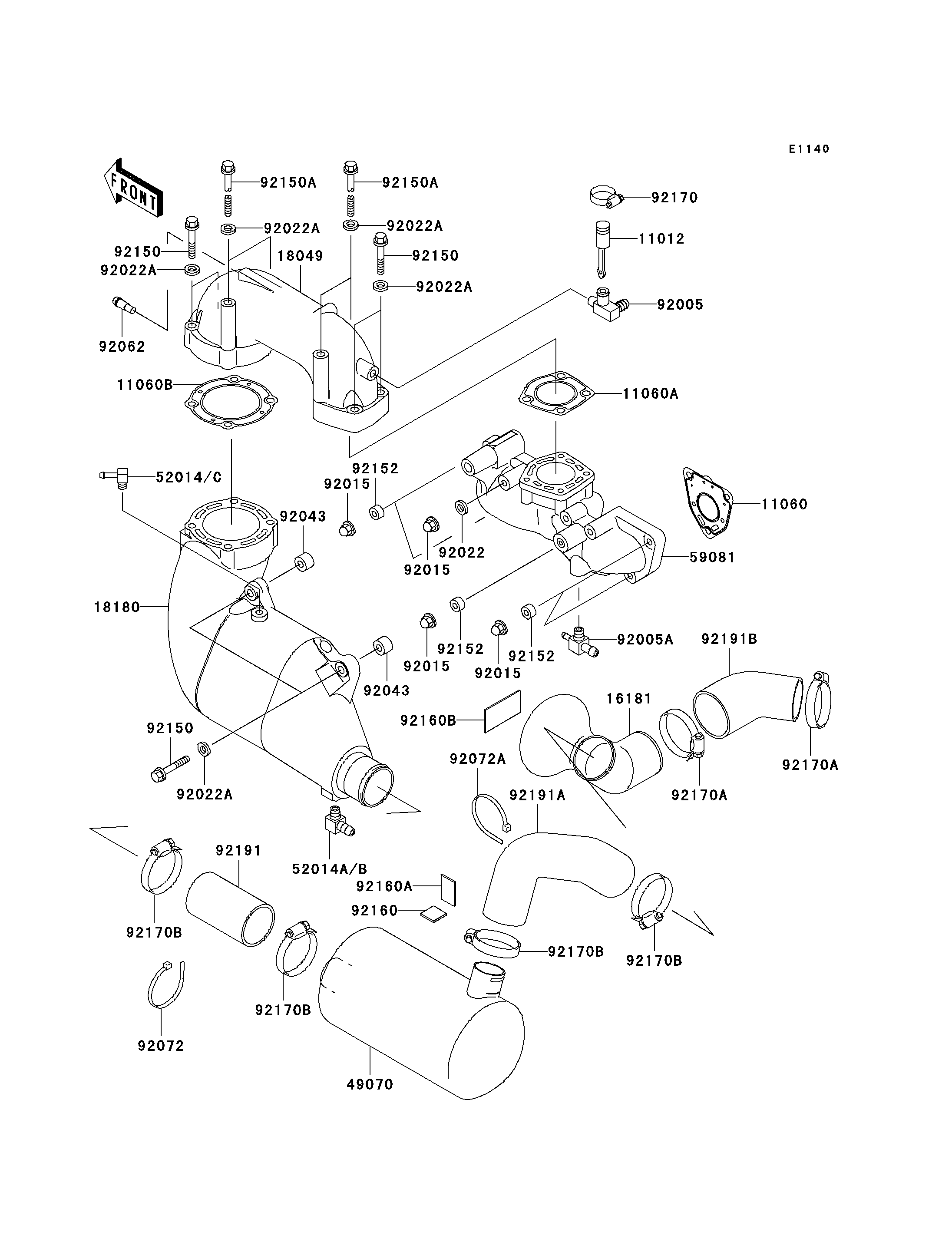

2001 1100 STX D.I. - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11012
11060
11060A
11060B
16181
18049
18180
49070
52014
52014B
59081
92005
92005A
92015
92015
92015
92015
92022
92022A
92022A
92022A
92022A
92022A
92043
92043
92062
92072
92072A
92150
92150
92150
92150A
92150A
92152
92152
92152
92160
92160A
92160B
92170
92170A
92170A
92170B
92170B
92170B
92170B
92191
92191A
92191B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3757 1
GASKET 11060 11060-3767 3
GASKET,MANIFOLD 11060A 11060-3768 1
GASKET,MUFFLER 11060B 11060-3769 1
TANK-RESONATOR 16181 16181-3702 1
PIPE-EXHAUST 18049 18049-3776 1
BODY-MUFFLER 18180 18180-3730 1
MUFFLER-COMP 49070 49070-3736 1
ELBOW 52014 52014-3709 1
ELBOW 52014B 52014-3718 1
MANIFOLD-EXHAUST 59081 59081-3730 1
FITTING 92005 92005-3715 1
FITTING 92005A 92005-3720 1
NUT,CAP,8MM 92015 92015-1371 9
WASHER,8.2X18X1.5 92022 92022-1964 4
WASHER,10.2X20X1.5 92022A 92022-3742 10
PIN,11X14X12.3 92043 92043-1266 2
NOZZLE 92062 92062-3705 1
BAND,L=368.3 92072 92072-3808 1
BAND 92072A 92072-3857 3
BOLT,10X50 92150 92150-3819 6
BOLT,10X125 92150A 92150-3825 4
COLLAR 92152 92152-3726 5
DAMPER,25X25 92160 92160-3864 1
DAMPER,40X25 92160A 92160-3865 1
DAMPER 92160B 92160-3913 1
CLAMP 92170 92170-3729 1
CLAMP 92170A 92170-3760 2
CLAMP 92170B 92170-3764 4
TUBE 92191 92191-3922 1
TUBE,MUFFLER-RESONATOR 92191A 92191-3944 1
TUBE,RESONATOR-TAILPIPE 92191B 92191-3945 1
