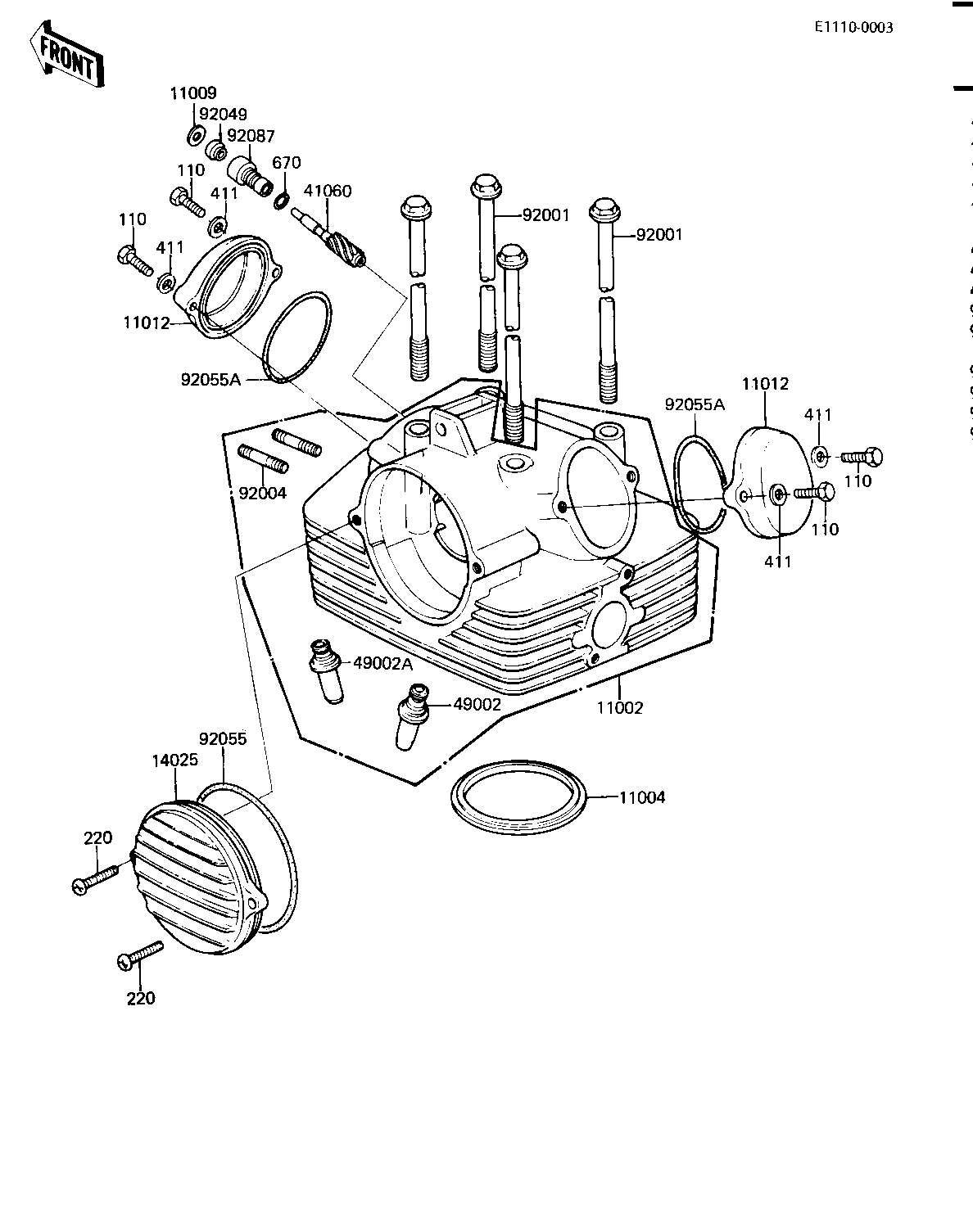

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-ASSY-CYLINDER 11002 11002-5025 1
GASKET,CYLINDER HEAD 11004 11004-1002 1
GASKET,TACHO GEAR 11009 92065-104 1
CAP,ROCKER ARM 11012 11027-004-2H 2
COVER,CAM 14025 14025-1276 1
GEAR,TACHOMETER 41060 13223-012 1
GUIDE,INLET VALVE 49002 12013-003 1
GUIDE,EXHAUST VALVE 49002A 49002-1010 1
BOLT,8X233 92001 92003-220 4
STUD,8X30 92004 92004-1069 2
OIL SEAL 92049 92050-075 1
"O" RING,99M/M 92055 92055-107 1
"0" RING,53.5MM 92055A 92055-112 2
GUIDE,TACHOMETER GEAR 92087 92087-011 1
BOLT-UPSET 110 112G0625 4
SCREW PAN HEAD 6X25 220 220B0625 2
WASHER PLAIN 6MM 411 411B0600 4
"0" RING,10MM 670 670D1510 1
