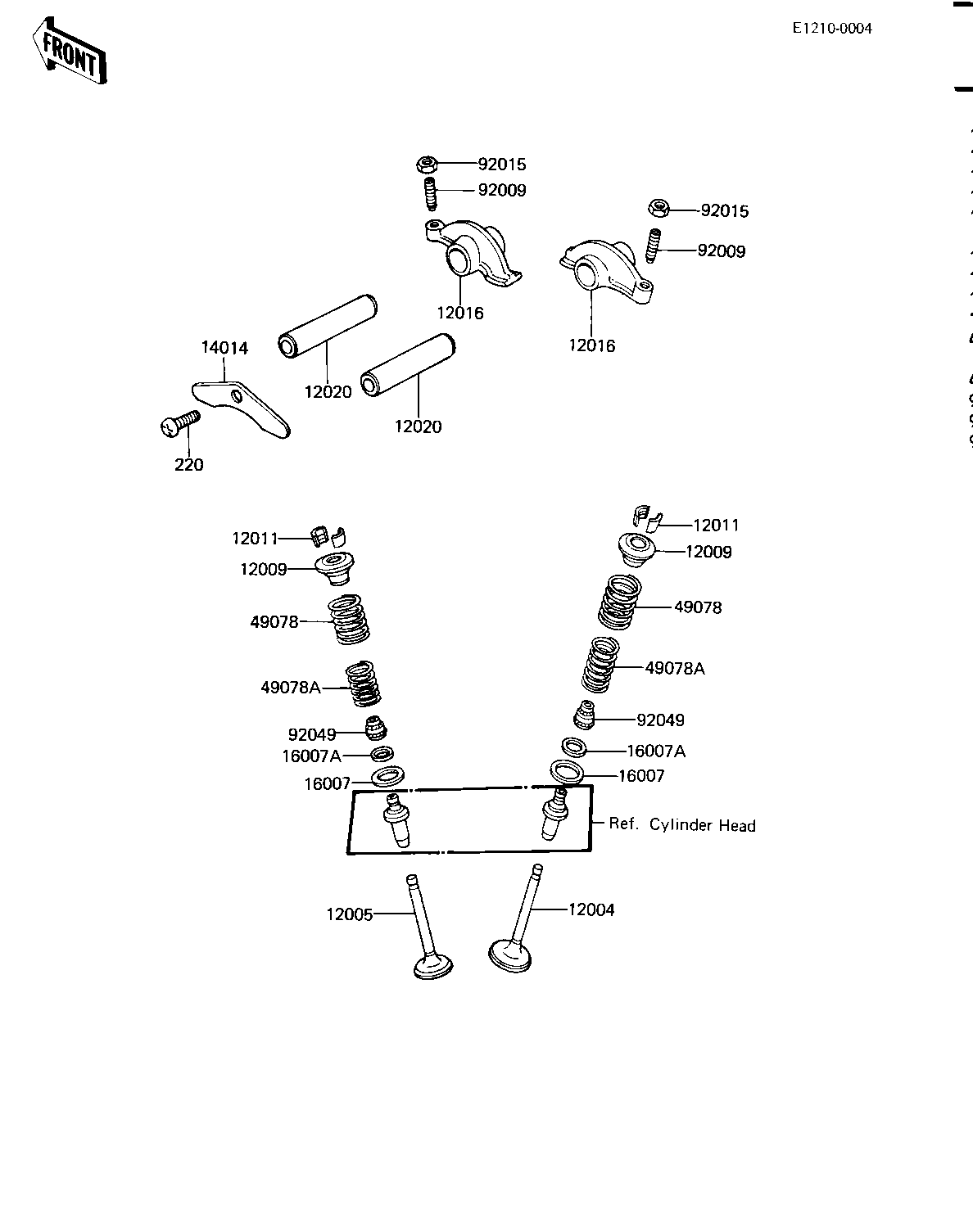

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,INLET 12004 12004-1006 1
VALVE,EXHAUST 12005 12005-1005 1
RETAINER,VALVE SPRING 12009 12009-006 2
SPLIT KEEPER 12011 12011-004 4
ARM,ROCKER 12016 12016-012 2
SHAFT,ROCKER ARM 12020 12020-004 2
PLATE,POSITIONING 14014 14014-034 1
SEAT,VLV OUTER SPRING 16007 12010-005 2
SEAT,VLV INNER SPRING 16007A 12010-006 2
SPRING,OUTER VALVE 49078 12007-013 2
SPRING,INNER VALVE 49078A 12007-014 2
SCREW,SLOTTED,ROCKER 92009 92013-009 2
NUT,ROCKER ARM FITTNG 92015 92016-061 2
OIL SEAL,RV37129.5 92049 92049-016 2
SCREW PAN HEAD 6X14 220 220B0614 1
