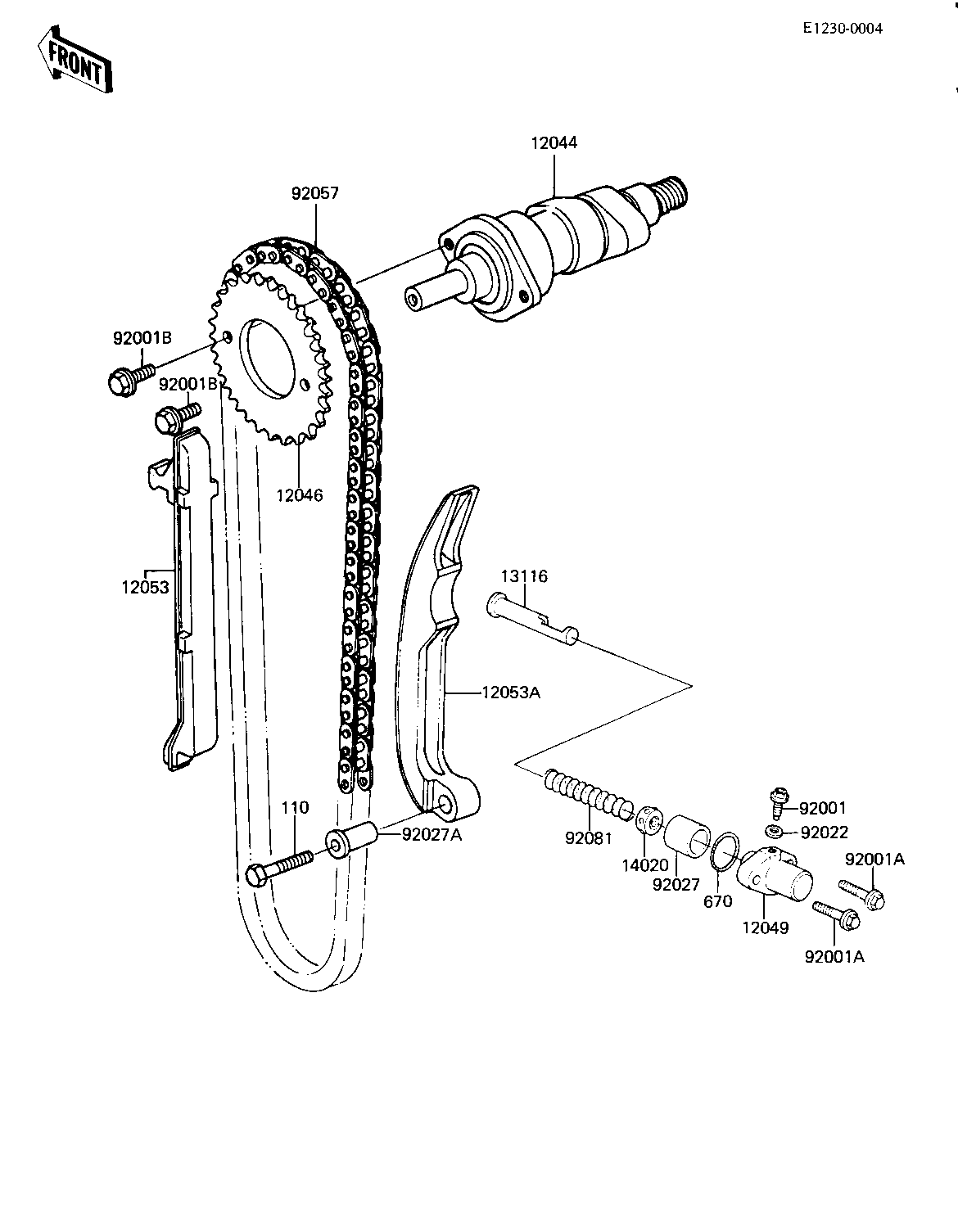

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,CAM 12044 12044-1028 1
SPROCKET,CAM SHAFT 12046 12046-1007 1
TENSIONER,CAM CHAIN 12049 12049-1055 1
SLIPER,CAM CHAIN 12053 12053-023 1
SLIPER,CAM CHAIN 12053A 12053-024 1
ROD,PUSH,CAM CHAIN 13116 13116-1019 1
RETAINER 14020 14020-1002 1
BELT,TENSIONER ADJUST 92001 92001-1155 1
BOLT,FLANGED,6X22 92001A 92001-1352 2
BOLT,SPROCKET FITTING 92001B 92003-208 2
WASHER OIL PUMP BANJO 92022 92022-077 1
COLLAR,TENSIONER 92027 92027-1273 1
COLLAR 92027A 92027-155 1
CHAIN,CAM 92057 21070-013 1
SPRING,TENSIONER 92081 92081-1105 1
BOLT-UPSET 110 112G0630 1
"O" RING,22MM 670 670B2022 1
