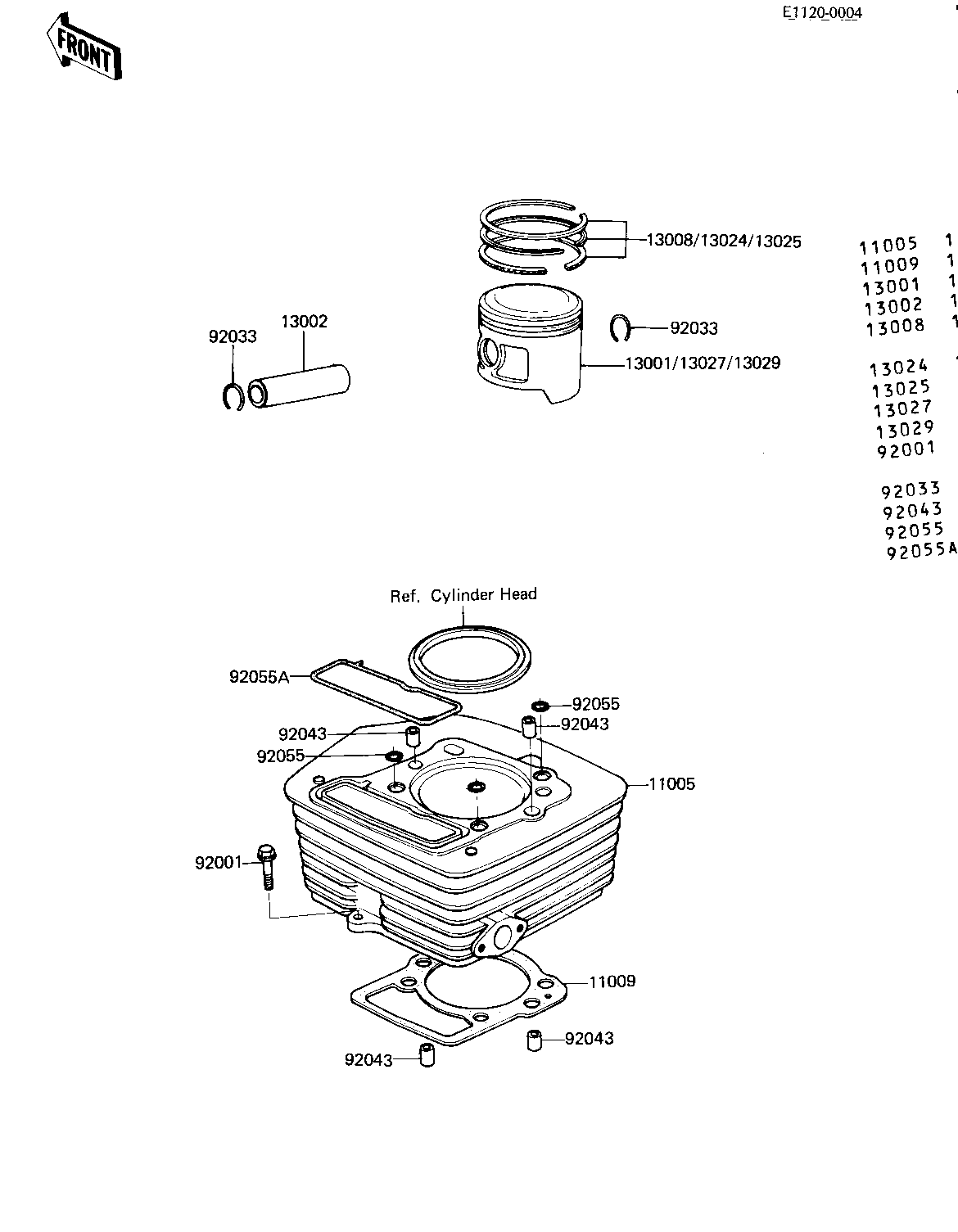

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-1174 1
GASKET,CYLINDER BASE 11009 11009-043 1
PISTON,S.T.D 13001 13001-1037 1
PIN-PISTON 13002 13002-1013 1
RING SET,STD 13008 13008-5012 1
RING SET,0.040"O/S 13024 13024-5008 1
RING SET,0.020"O/S 13025 13025-5007 1
PISTON,0.040 O/S 13027 13027-1005 1
PISTON,0.020 O/S 13029 13029-1003 1
BOLT 92001 92003-202 1
CIRCLIP,PISTON PIN 92033 92036-021 2
PIN,DOWEL,10X8.2X14 92043 92043-1037 4
RING-O,10MM 92055 92055-1149 3
"0" RING 92055A 92055-105 1
