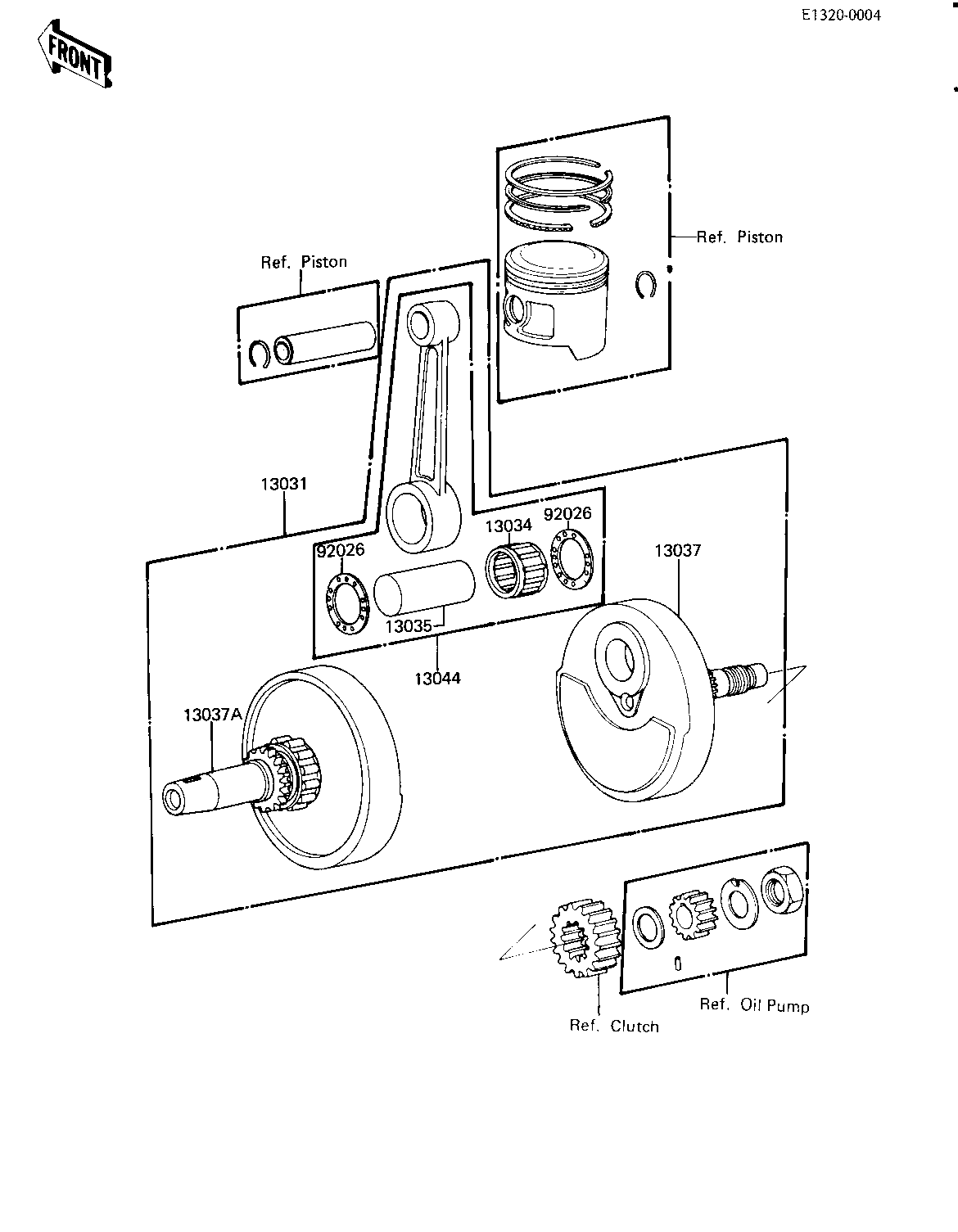

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANK & CONROD ASSY 13031 13031-1029 1
BRG,NEEDLE PK293921.4 13034 13034-031 1
PIN,CRANK 13035 13035-035 1
CRANKSHAFT,R.H 13037 13037-1064 1
CRANKSHAFT,L.H 13037A 13037-5003 1
CONNECTING ROD SET 13044 13044-5005 1
SPACER,CONNECTING ROD 92026 92026-087 2
