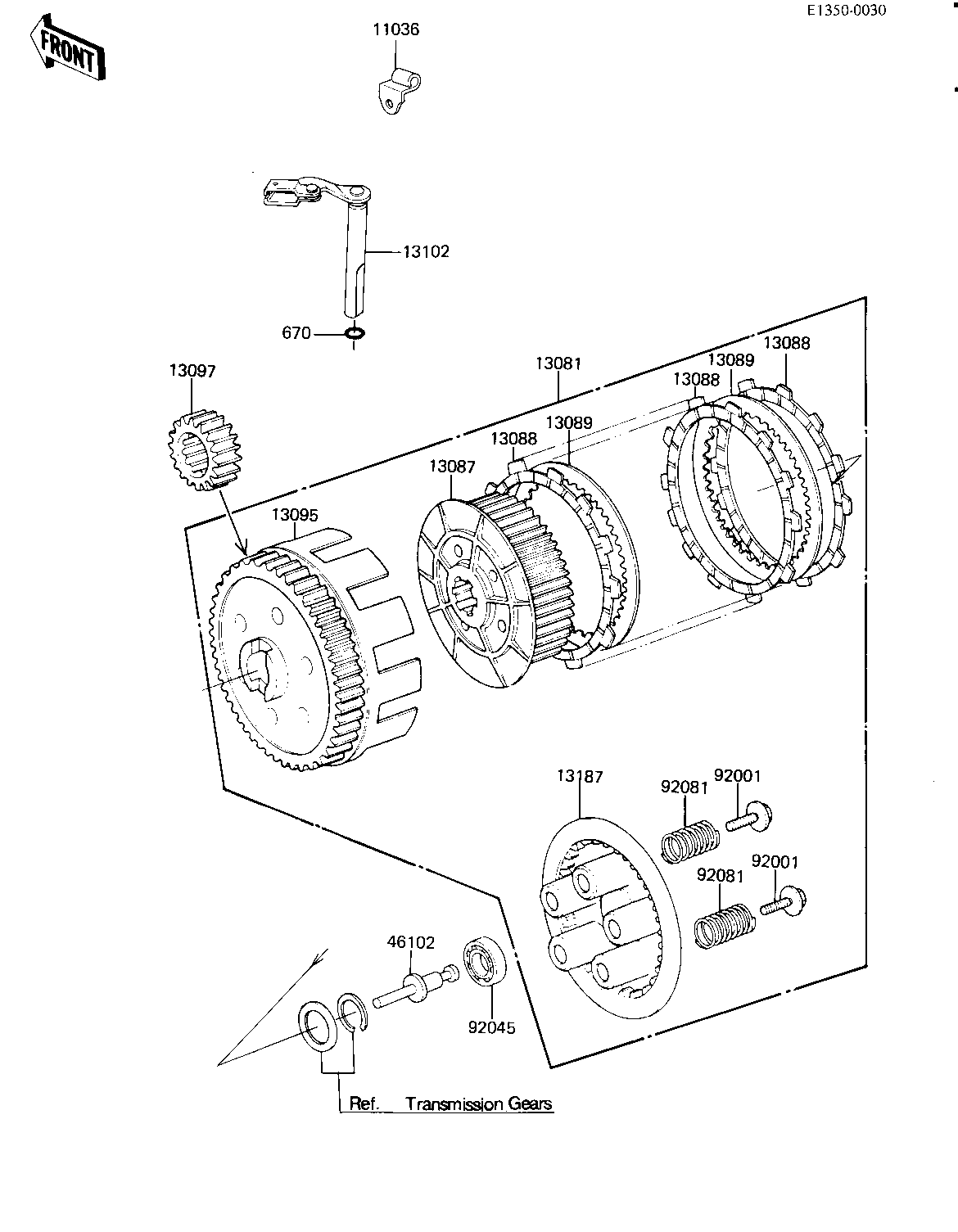

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CLUTCH CABLE 11036 11045-1081 1
CLUTCH-ASSY 13084 13081-1068 1
HUB,CLUTCH 13087 13087-1001 1
PLATE,CLUTCH FRICTION 13088 13088-1008 7
PLATE CLUTCH STEEL 13089 13089-013 6
HOUSING,CLUTCH 13095 13095-1015 1
GEAR,PRIMARY 13097 13121-035 1
RELEASE,CLUTCH 13102 13102-1011 1
PLATE-CLUTCH OPERATIN 13187 13187-1008 1
ROD,CLUTCH PUSH 46102 46102-1033 1
BOLT,CLUTCH SPRING,6X 92001 92001-1576 5
BEARING-BALL 92045 92045-1235 1
SPRING-CLUTCH 92081 92081-083 5
"O" RING,9MM 670 670B1509 1
