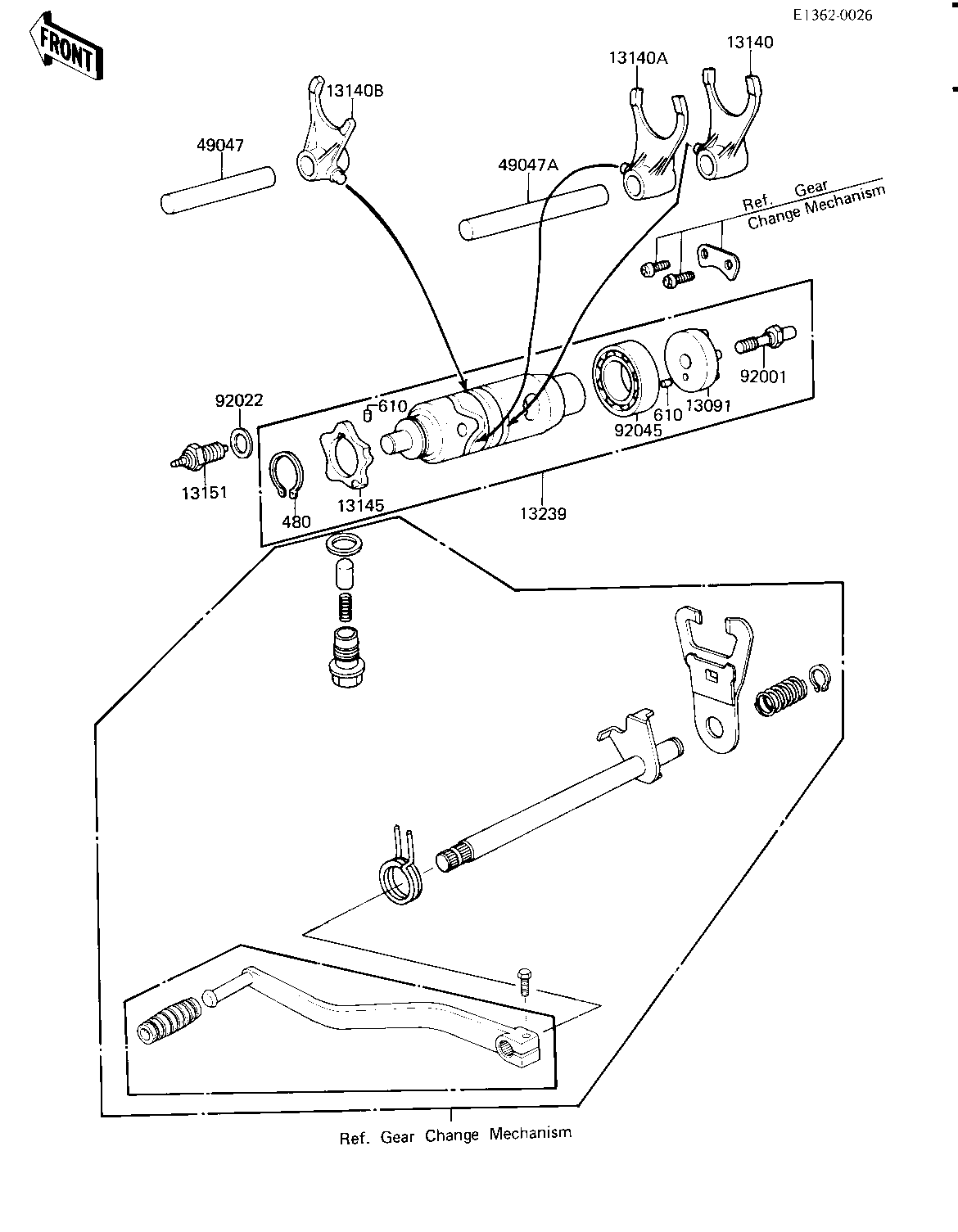

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,GEAR CHANGE 13091 13142-019 1
SHIFT FORK,LOW 13140 13140-073 1
SHIFT FORK,2ND&3RD 13140A 13140-074 1
SHIFT FORK,4TH&TOP 13140B 13140-075 1
DISK,SHIFT DRUM 13145 13145-1002 1
SWITCH,NEUTRAL 13151 13151-1007 1
DRUM ASSY,GEAR SHIFT 13239 13239-1036 1
ROD,SHIFT 71.7M/M 49047 49047-1002 1
ROD,SHIFT 93.7M/M 49047A 49047-1003 1
BOLT 92001 92001-166 1
GASKET CHECK VALVE 92022 92065-058 1
BEARING,BALL,#6905 92045 92045-036 1
CIRCLIP 24MM 480 480J2400 1
PIN-DOWEL,4X6 610 610A0406 2
