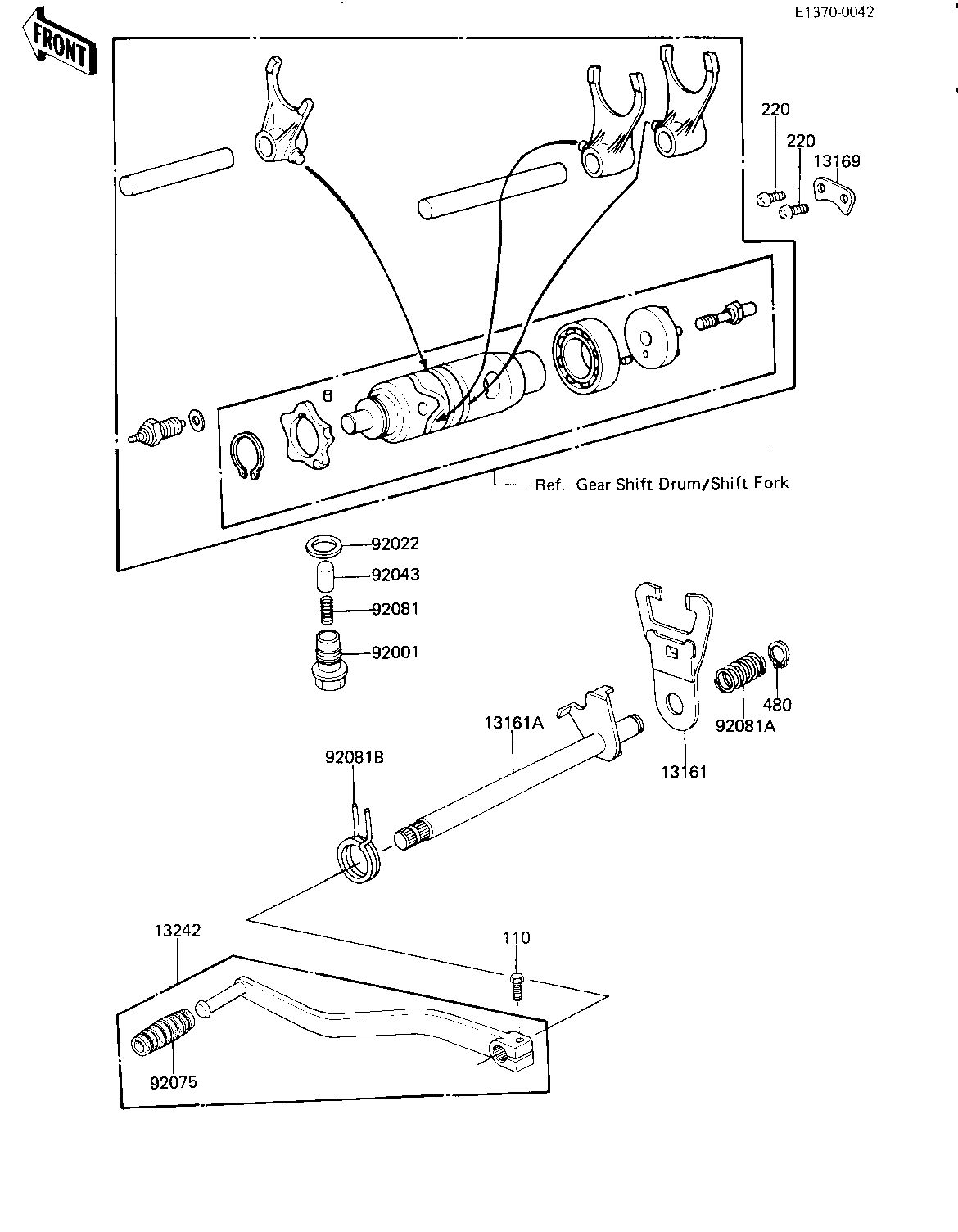

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER ASSY,GEAR SHIFT 13161 13161-044 1
LEVER ASSY,GEAR SHIFT 13161A 13161-1013 1
PLATE,GEAR CHANGE 13169 13169-014 1
LEVER-ASSY-CHANGE 13242 13242-1056 1
BOLT,NEUTRAL POSITION 92001 92001-182 1
WASHER,PLAIN 92022 92022-324 1
PIN,NEUTRAL POSITIONG 92043 92043-131 1
DAMPER,CHANGE PEDAL 92075 92160-1036 1
SPRING 92081 92081-112 1
SPRING,COIL 92081A 92081-149 1
SPRING,CHG PEDL RTRN 92018B 92083-028 1
BOLT-UPSET,6X20 110 112G0620 1
SCREW PAN HEAD 6X14 220 220B0614 2
CIRCLIP,13MM 480 480J1300 1
