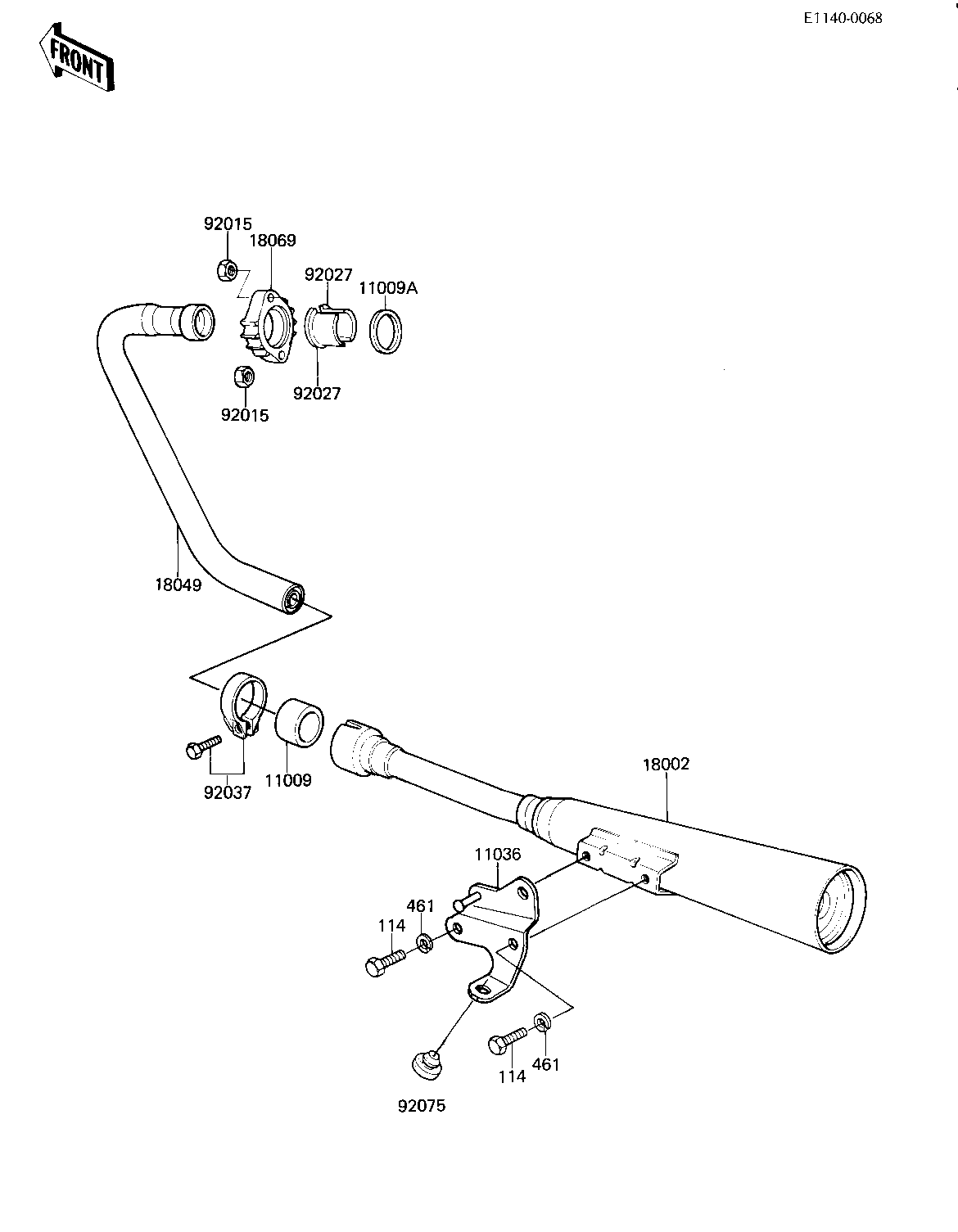

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MANIFOLD EXHAU 11009 11060-1068 1
GASKET,EXHAUST PIPE H 11009A 11009-1866 1
BRACKET-MUFFLER 11036 11036-1195 1
BODY-COMP-MUFFLER 18002 18002-1448 1
PIPE-EXHAUST 18049 18049-1387 1
HOLDER EXHAUST PIPE 18069 18069-1014 1
NUT-8MM 92015 92015-1143 2
COLLAR,EXHAUST PIPE 92027 92027-264 2
CLAMP 92037 92037-1226 1
DAMPER RUBB MAIN STAD 92075 92075-015 1
BOLT-SMALL-UPSET,8X14 114 115B0814 2
WASHER SPRING 8MM 461 461F0800 2
