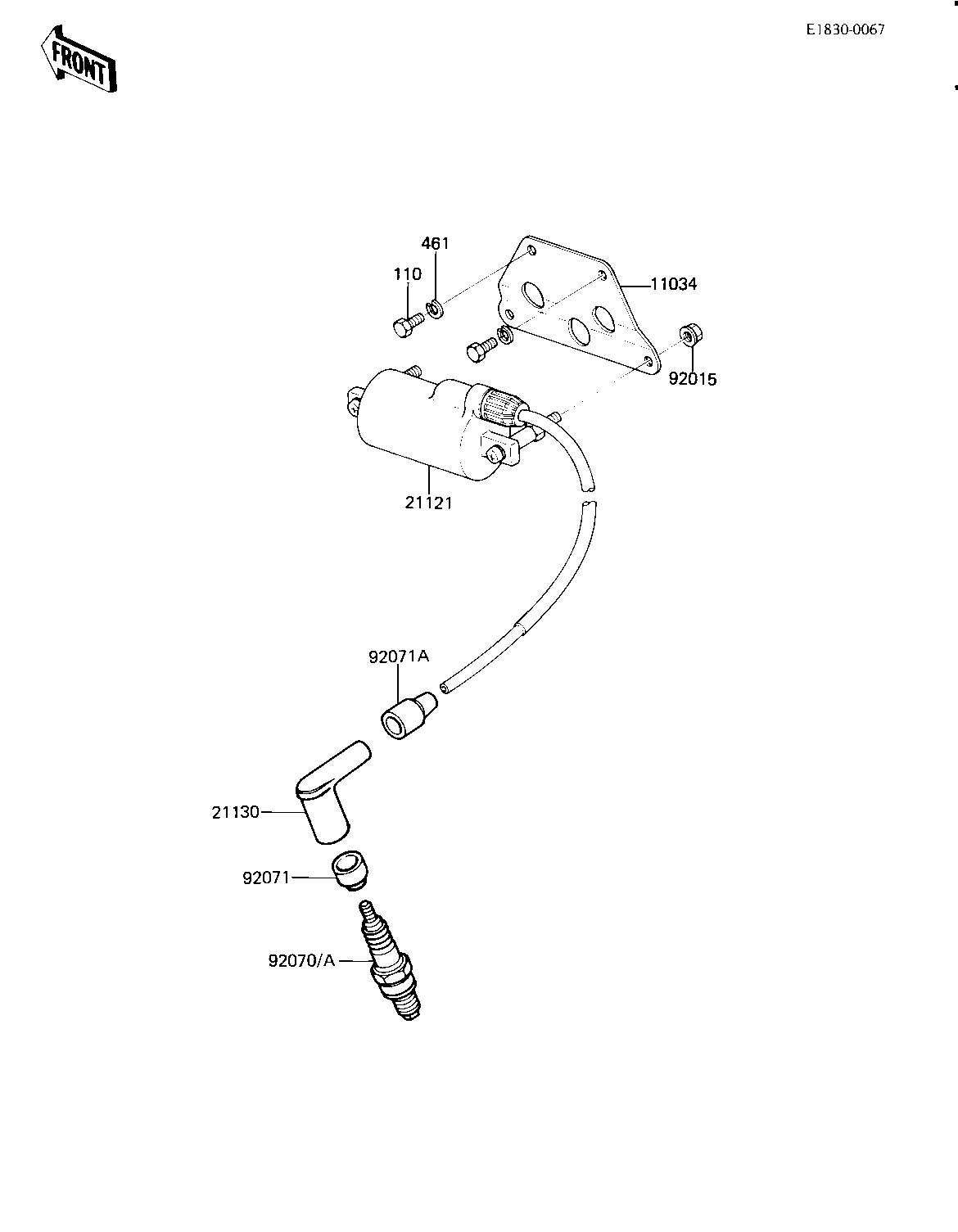

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,IGNITION COIL 11034 11034-1920 1
COIL-IGNITION 21121 21121-1043 1
CAP-SPARK PLUG,RTFM20 21130 21130-1007 1
NUT-6MM 92015 92015-1078 2
SPARK PLUG B7ES 92070 B7ES 1
GROMMET-PLUG CAP,A 92071 21131-004 1
GROMMET,SPARK PLG CAP 92071A 21132-005 1
BOLT-UPSET,6X16 110 112G0616 2
WASHER SPRING 6MM 461 461F0600 2
