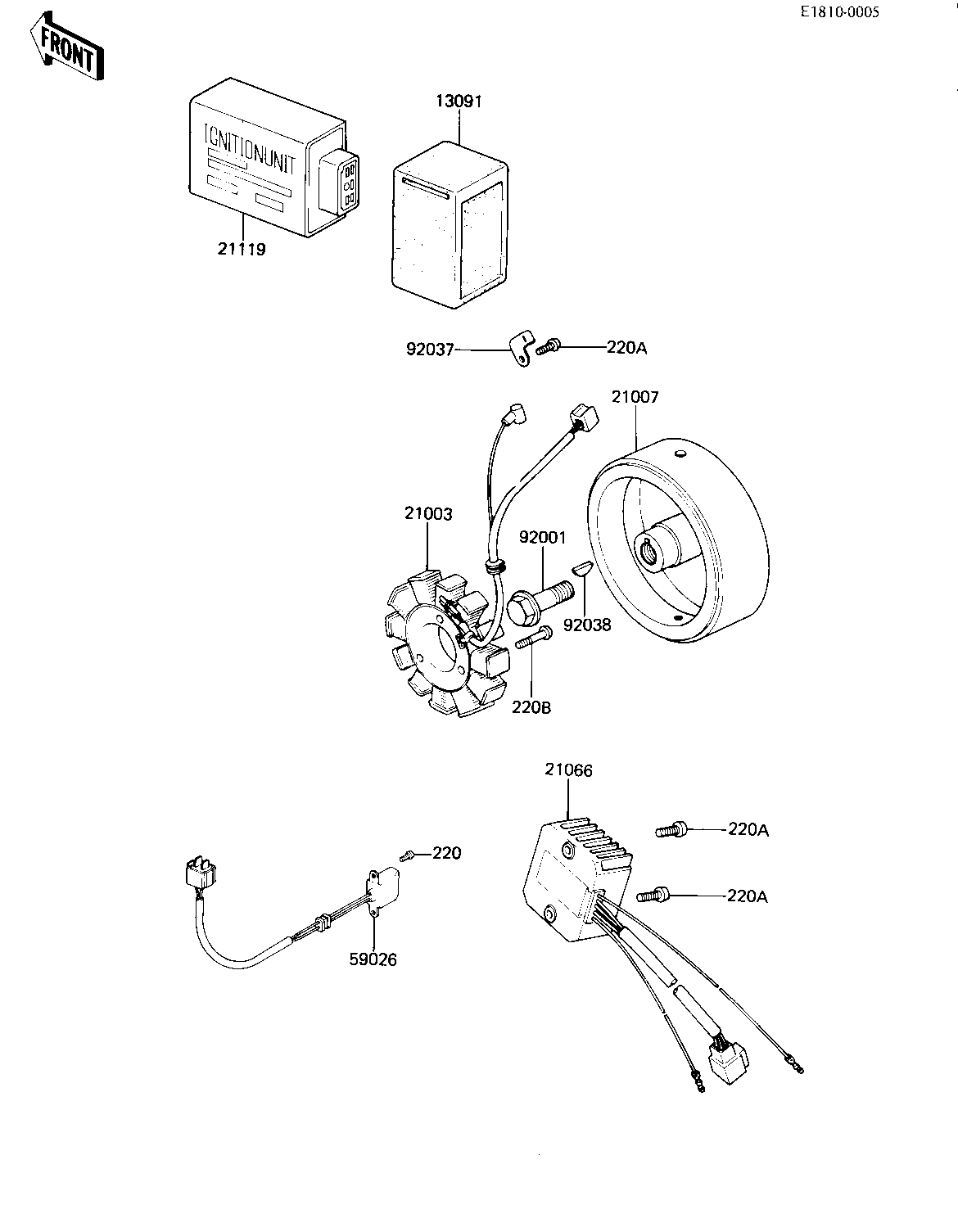

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13091 13091-1095 1
STATOR ASSY 21003 21003-1002 1
ROTOR 21007 21007-1032 1
REGULATOR,VOLTAGE 21066 21066-1014 1
IGNITER 21119 21119-1193 1
COIL-PULSING 59026 59026-1013 1
BOLT,10X40 92001 92001-1201 1
CLAMP 92037 92037-194 1
WOODRUFF KEY 92038 92038-001 1
SCREW PAN HEAD 5X8 220 220B0508 2
SCREW PAN HEAD 6X14 220A 220B0614 3
SCREW PAN HEAD 6X25 220B 220B0625 3
