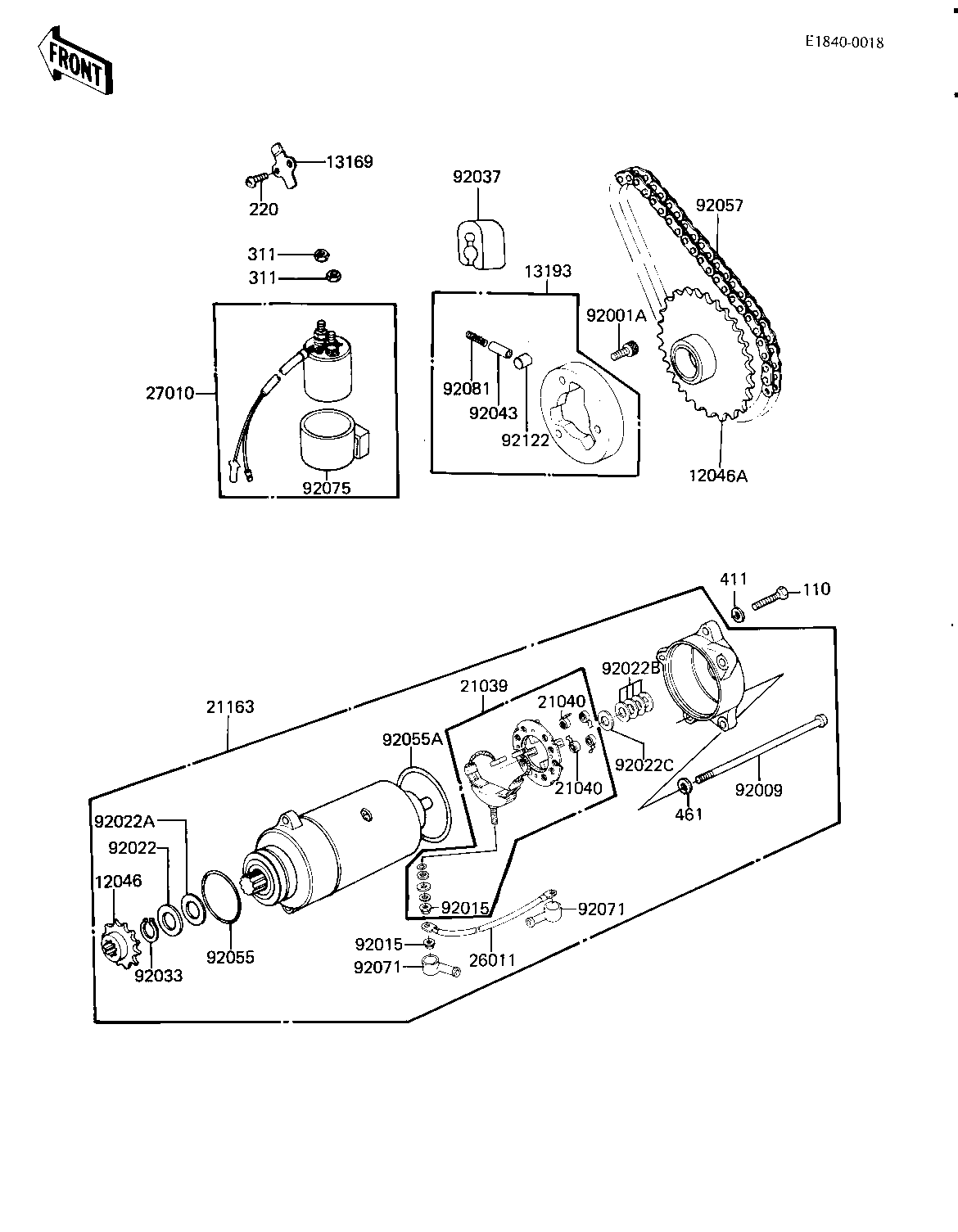

1982 CSR Belt - STARTER MOTOR/STARTER CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,STARTER MOTO 12046 12046-1004 1
SPROCKET,STARTER 12046A 12046-1023 1
PLATE 13169 13169-1010 1
CLUTCH ASSY,STARTING 13193 13193-1006 1
BRUSH,CARBON 21039 21039-1007 1
SPRING CARBON BRUSH 21040 21040-004 2
STARTER-ELECTRIC 21163 21163-1036 1
WIRE-LEAD,STARTER MOT 26011 26011-1201 1
SWITCH ASSY,MAGNETIC 27010 21164-005 1
BOLT 92001 120P0816 3
SCREW,PAN HEAD,6X119 92009 92009-1097 2
NUT-6MM 92015 92015-1078 2
WASHER,PLAIN,14MM 92022 21025-008 1
WASHER PLAIN 14MM 92022A 21025-009 1
WASHER,THRUST,0.2T 92022B 21025-011 AR
WASHER,THRUST,0.8T 92022C 92022-1132 1
CIRCLIP,13M/M 92033 92033-037 1
CLAMP,CABLE 92037 92037-1049 1
PIN 92043 92043-087 3
"0" RING,42.8MM 92055 21027-005 1
"0" RING,STARTER MOTR 92055A 92055-1086 1
CHAIN,DYNAMO 92057 92057-1009 1
CAP,STARTING MOTOR 92071 21017-020 2
DAMPER MAG SWITCH SHK 92075 21064-002 1
SPRING 92081 92081-110 3
PIN 92122 92122-001 3
BOLT-UPSET 110 112G0625 2
SCREW PAN HEAD 6X14 220 220B0614 1
NUT,6M/M 311 311G0600 2
WASHER PLAIN 6MM 411 411B0600 2
WASHER SPRING 6MM 461 461F0600 2
