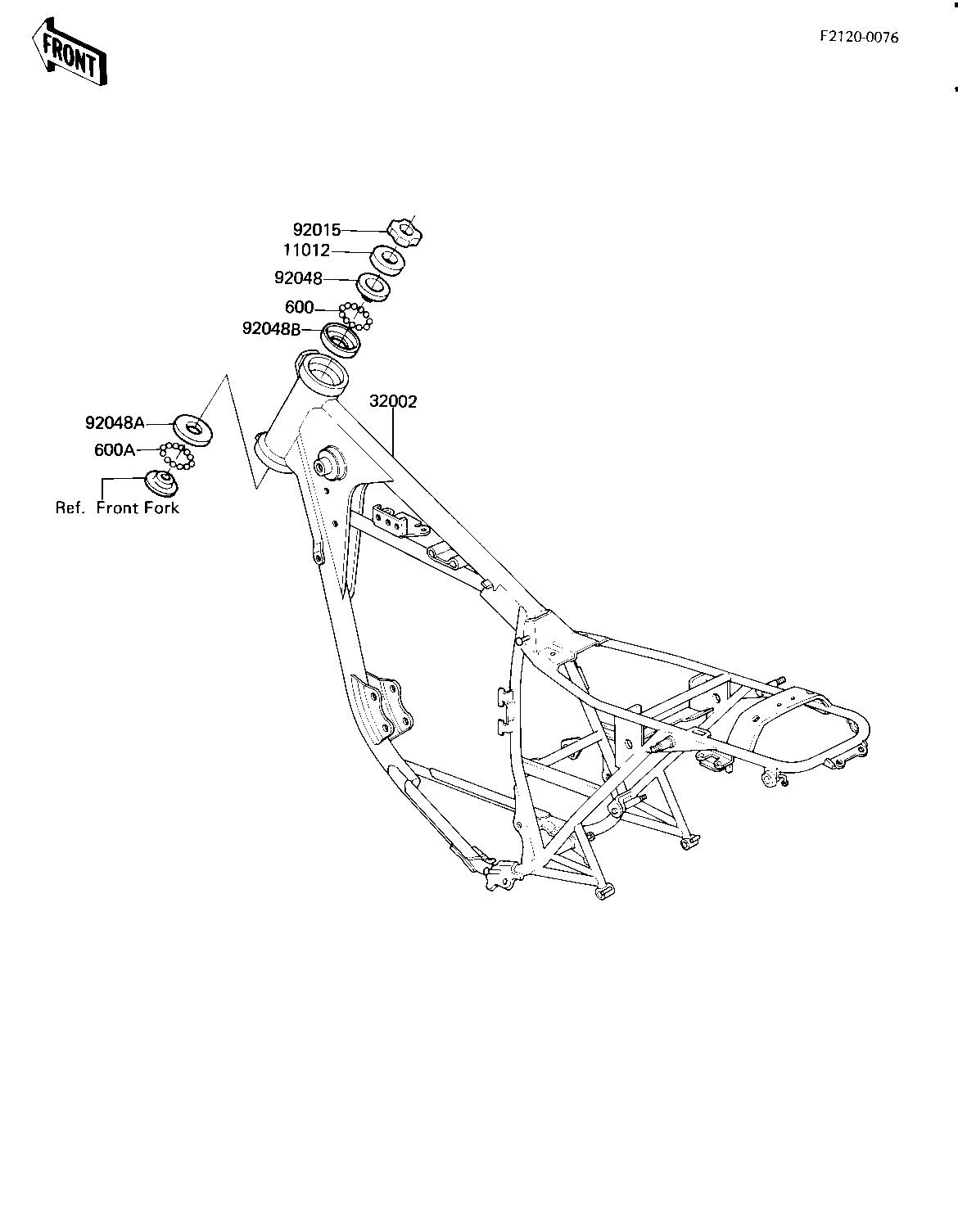

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING STEM 11012 46098-012 1
FRAME-COMP 32002 32002-1310 1
NUT,STEERING STEM 92015 92090-022 1
CONE,STRG STM BRG,UP 92048 92047-014 1
RACE STEERING BEARING 92048A 92048-005 1
RACE,STRG STM BEARING 92048B 92048-009 1
BALL STEEL 3/16' 600 600A0600 23
BALL STEEL 1/4' 600A 600A0800 19
