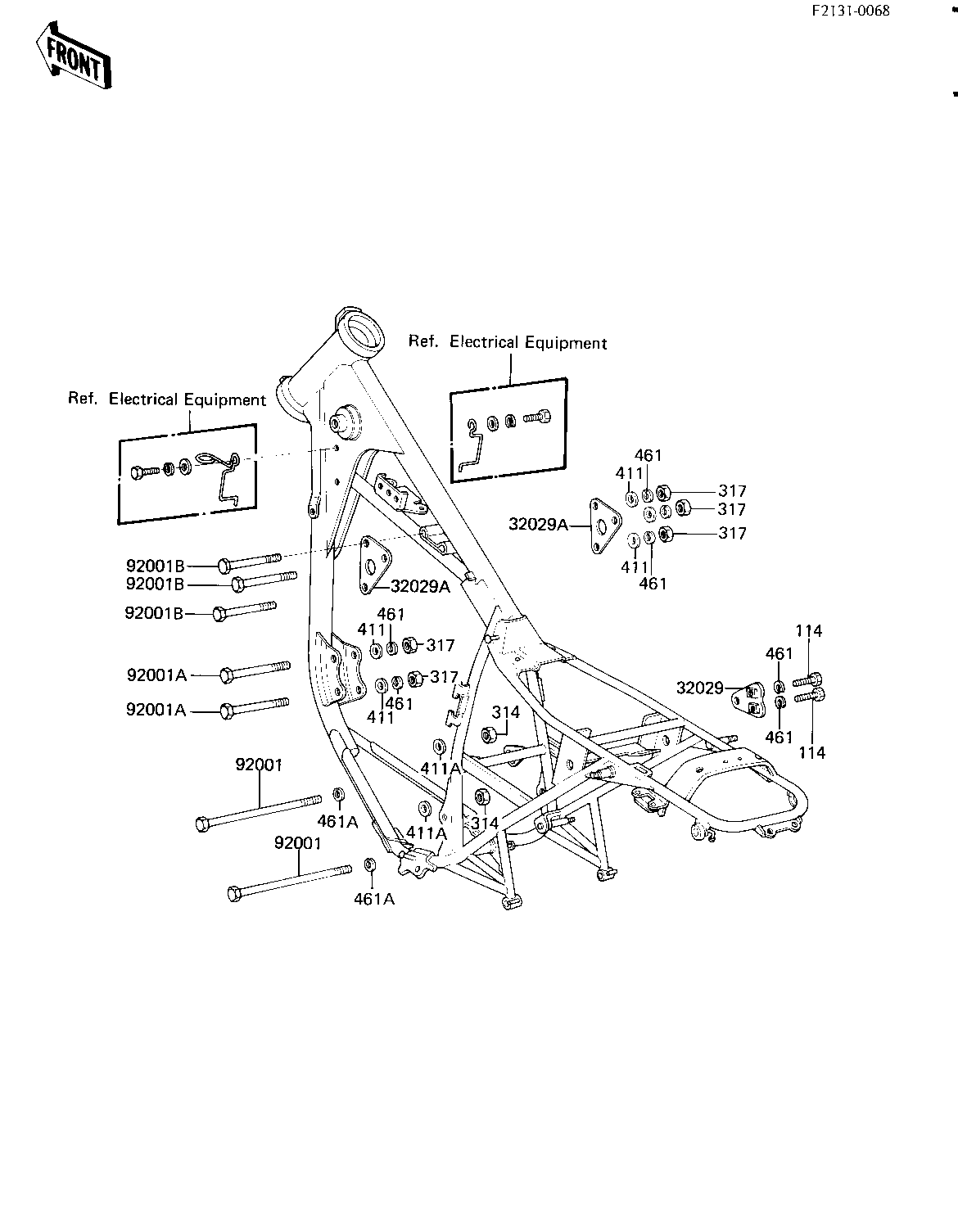

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ENGINE 32029 32029-1008 2
PLATE,ENGINE HEAD 32029A 32030-069 2
BOLT,FLANGED,10X115 92001 92001-1603 2
BOLT FLANGED,8X70 92001A 92001-1583 2
BOLT-8X63 92001B 92001-1397 3
BOLT-SMALL-UPSET,8X16 114 115G0816 4
NUT,10MM 314 314B1000 2
NUT,8M/M 317 317B0800 5
WASHER PLAIN 8MM 411 411B0800 5
WASHER PLAIN 10MM 411A 411B1000 2
WASHER SPRING 8MM 461 461F0800 9
WASHER SPRING 10MM 461A 461F1000 2
