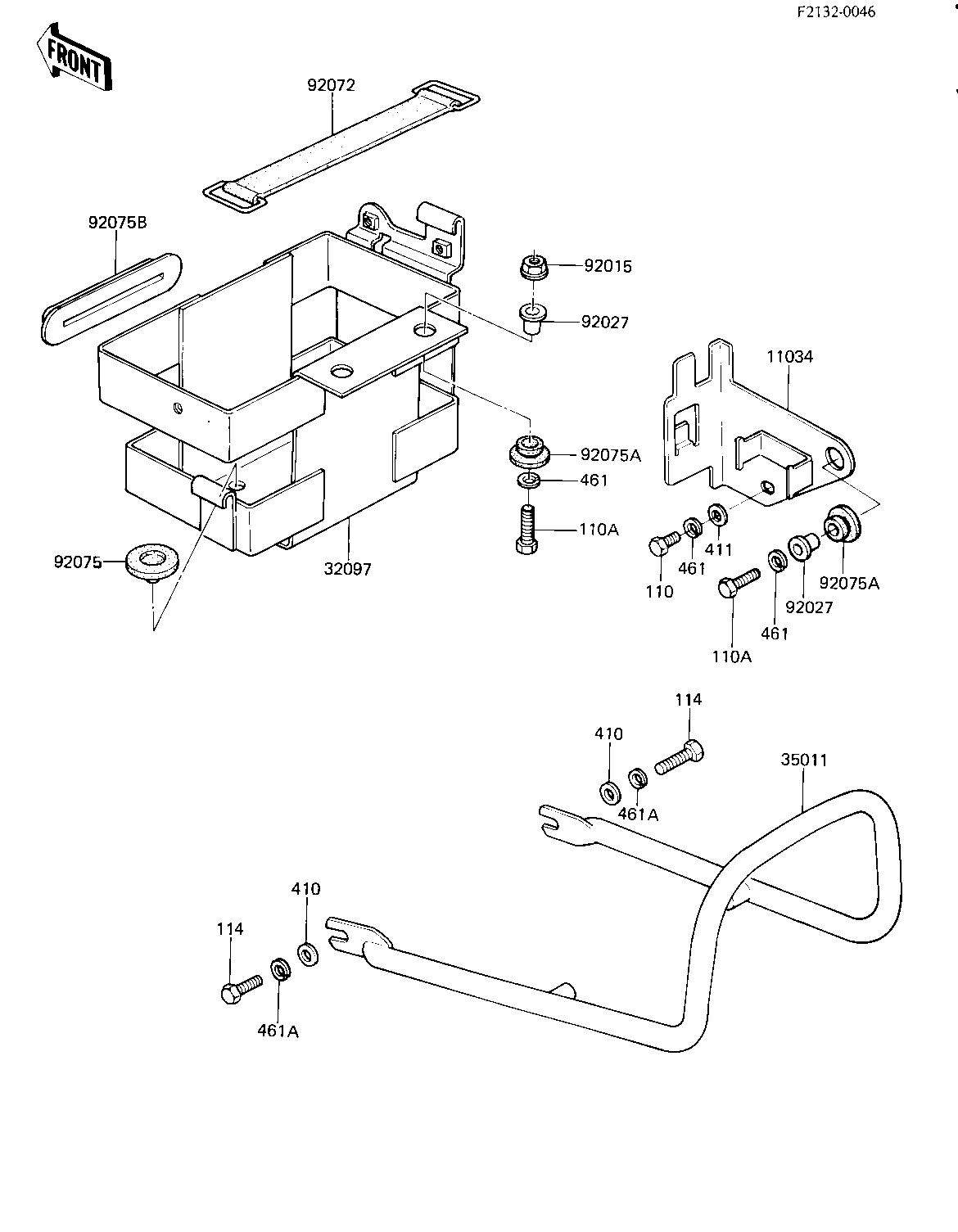

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RELAY 11034 11034-1672 1
CASE-BATTERY 32097 32097-1053 1
STAY 35011 35011-1105 1
NUT-6MM 92015 92015-1078 2
COLLAR 92027 92027-194 3
BAND BATTERY 92072 92072-006 1
DAMPER RUBBER 92075 92075-078 4
DAMPER RUBBER 92075A 92075-277 3
DAMPER RUBBER 92075B 92075-280 1
BOLT-UPSET,6X12 110 112G0612 1
BOLT 6X22 110A 112B0622 3
BOLT-SMALL-UPSET,8X16 114 115G0816 2
WASHER PLAIN 8MM 410 410B0800 2
WASHER PLAIN 6MM 411 411B0600 1
WASHER SPRING 6MM 461 461F0600 4
WASHER SPRING 8MM 461A 461F0800 2
