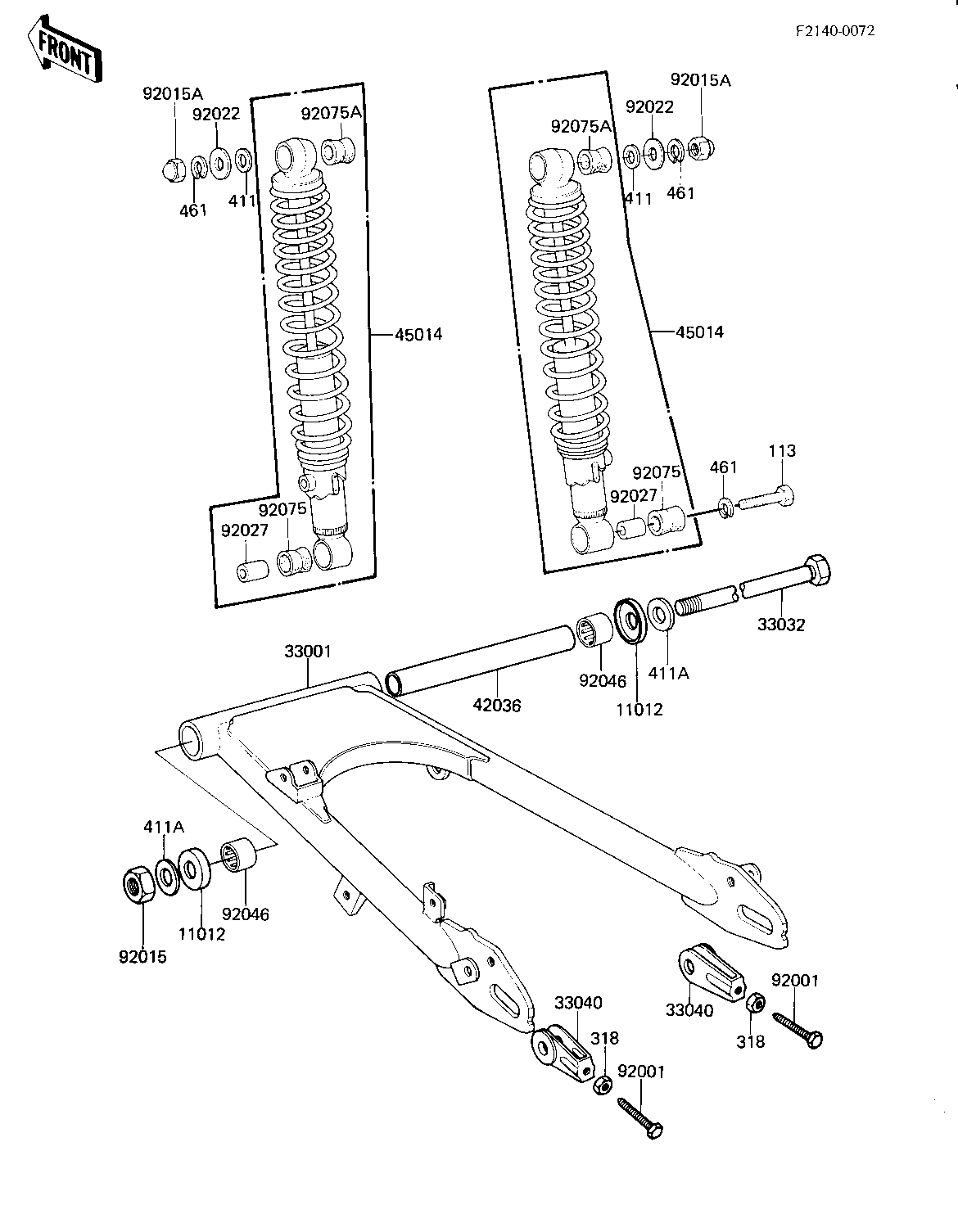

1982 CSR Belt - SWING ARM/SHOCK ABSORBERS
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,SWING ARM | 11012 | 33035-010 | 2 | ||
ARM-COMP-SWING | 33001 | 33001-1119 | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-1022 | 1 | ||
ADJUSTER,CHAIN | 33040 | 33040-1010 | 2 | ||
SLEEVE SWING ARM | 42036 | 42036-1021 | 1 | ||
SHOCK ABSBR RR | 45014 | 45014-1138 | 2 | ||
BOLT,8X50 | 92001 | 92001-1399 | 2 | ||
NUT-LOCK,14MM | 92015 | 92019-011 | 1 | ||
NUT SHOCK ABSORBER | 92015A | 92020-003 | 2 | ||
WASHER-PLN,10X22X3.2 | 92022 | 92022-176 | 2 | ||
BUSHING,SHOCK ABSORB | 92027 | 45016-008 | 2 | ||
BEARING-NEEDLE,HK2216 | 92046 | 92046-1115 | 2 | ||
BUSHING, SHCK ABS RUB | 92075 | 45017-012 | 2 | ||
BUSHING,SHCK ABS RUB | 92075A | 45017-015 | 2 | ||
BOLT HEX HEAD 10X35 | 113 | 113N1035 | 2 | ||
NUT 8MM | 318 | 318B0800 | 2 | ||
WASHER PLAIN 10MM | 411 | 411B1000 | 2 | ||
WASHER PLAIN 14MM | 411A | 411B1400 | 2 | ||
WASHER SPRING 10MM | 461 | 461F1000 | 4 |
