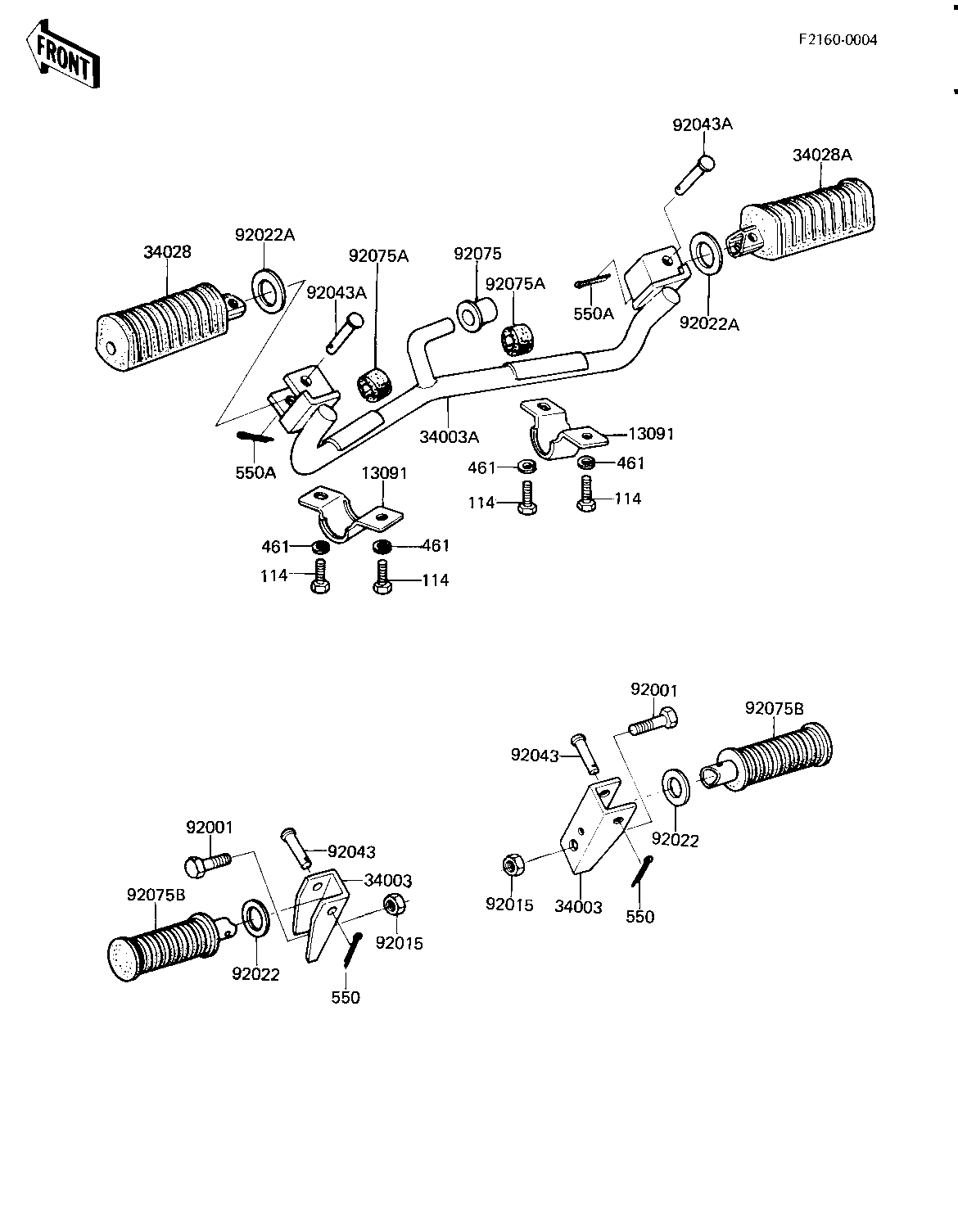

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,FOOTREST 13091 13091-1003 2
HOLDER,REAR FOOTREST 34003 34003-1025 2
HOLDER,STEP 34003A 34003-1118 1
STEP-ASSY,FR,LH 34028 34027-1106 1
STEP-ASSY,FR,RH 34028A 34027-1107 1
BOLT,HEX HEAD,10X40 92001 92003-213 2
NUT,LOCK,10MM 92015 92019-021 2
WASHER-PLAIN (OPT) 92022 92022-199 2
WASHER,PLAIN 92022A 92022-250 2
PIN 92043 92043-1464 2
PIN,FOOTREST BAR FIT 92043A 92043-115 2
DAMPER,RUBBER 92075 92075-1029 1
DAMPER,RUBBER 92075A 92075-306 2
RUBBER,FOOTREST 92075B 92076-027 2
BOLT-SMALL-UPSET,8X16 114 115G0816 4
WASHER SPRING 8MM 461 461F0800 4
PIN,COTTER,2.0X12 550 550D2012 2
PIN,COTTER,2.5X15 550A 550D2515 2
