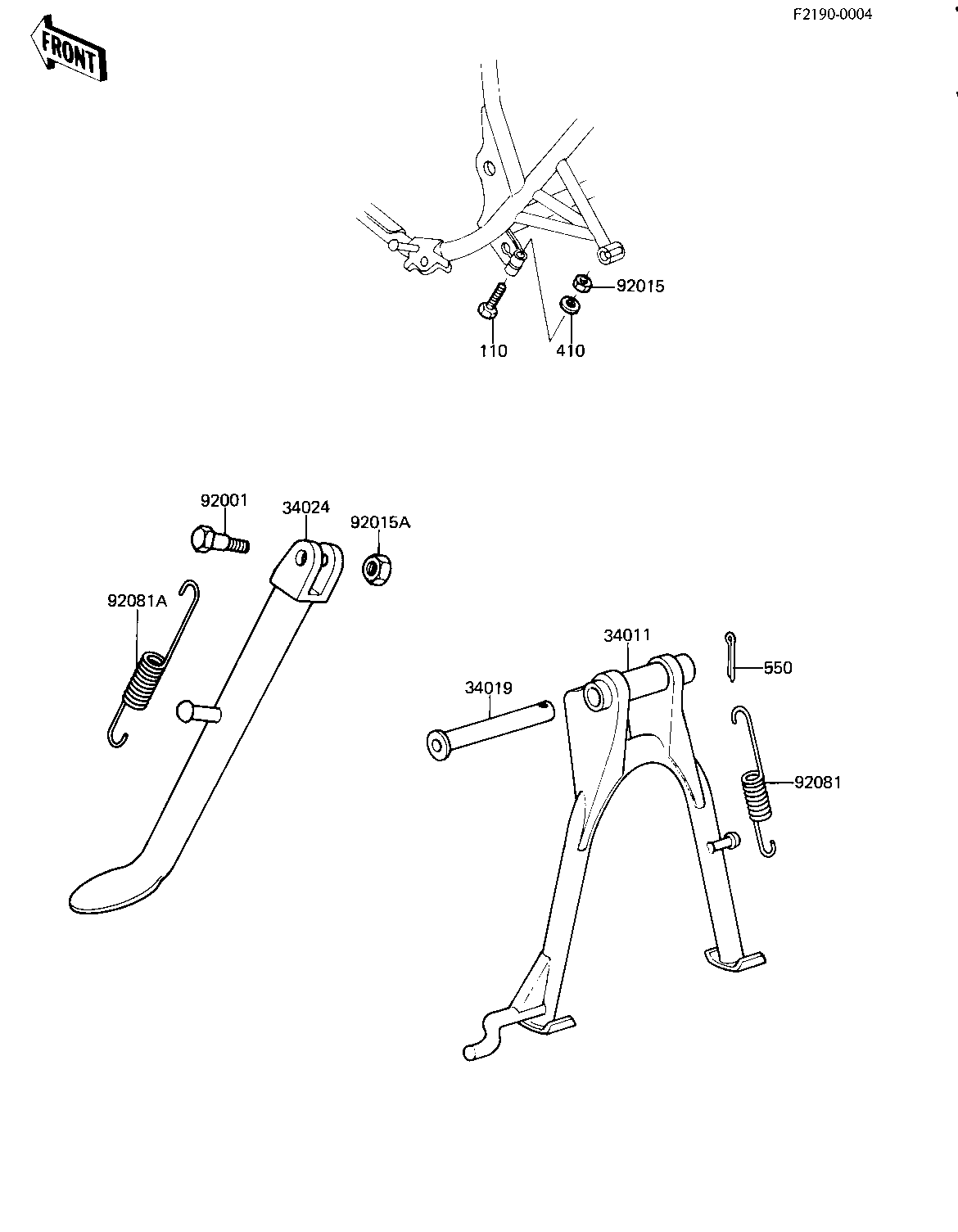

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-MAIN 34011 34011-1043 1
SHAFT MAIN STAND 34019 34019-011 1
STAND-SIDE 34024 34024-1074 1
BOLT, SIDE STAND FIT 92001 92003-157 1
NUT 92015 92019-008 2
NUT,LOCK,10MM 92015A 92019-021 1
SPRING,MAIN STAND 92081 34023-016 1
SPRING,SIDE STAND 92081A 34025-008 1
BOLT 6X35 110 110R0635 2
WASHER PLAIN 6MM 410 410B0600 2
PIN COTTER 3.0X30 550 550D3030 1
