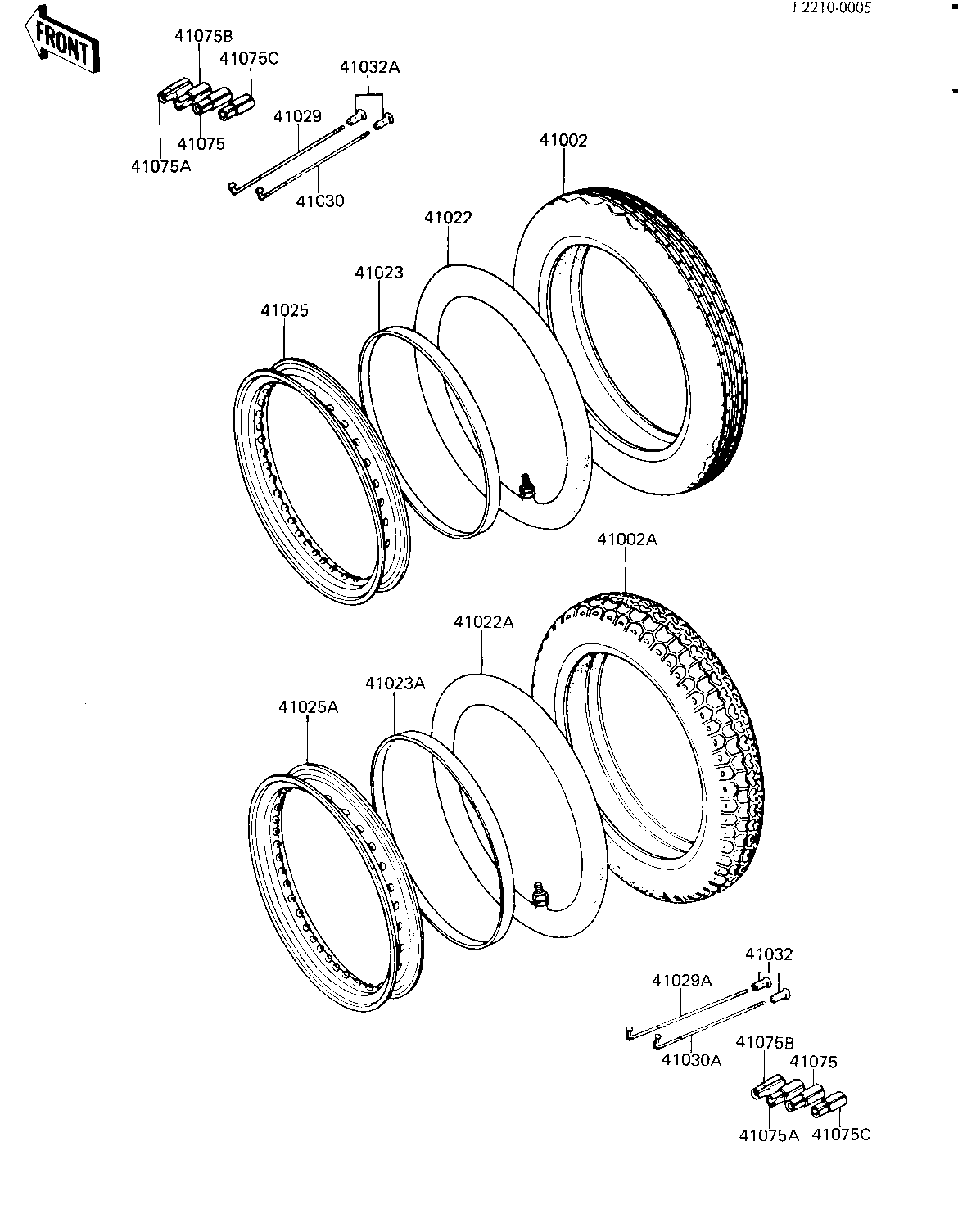

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE 41002 41002-1570 1
TIRE 120/90-16 Y987 R 41002A 41002-1212 1
TUBE 250/275-18 41022 41022-032 1
TUBE-TIRE,120/90-16(Y 41022A 41022-1046 1
BAND RIM 41023 41023-001 1
BAND,RIM 41023A 41023-1011 1
RIM,1.60X18 41025 41025-1020 1
RIM,2.15X16 41025A 41025-1021 1
SPOKE,FR INNER 41029 41029-1025 18
SPOKE,RR INNER 41029A 41029-1026 18
SPOKE,FR OUTER 41030 41030-1020 18
SPOKE,RR OUTER 41030A 41030-1021 18
NIPPLE,SPOKE 41032 41032-022 36
NIPPLE-SPOKE 41032A 41032-1055 36
WEIGHT,BALANCE,10G 41075 41075-1007 AR
WEIGHT,BALANCE,20G 41075A 41075-1008 AR
WEIGHT,BALANCE,30G 41075B 41075-1009 AR
WEIGHT,BALANCE,5G 41075C 41075-1010 AR
