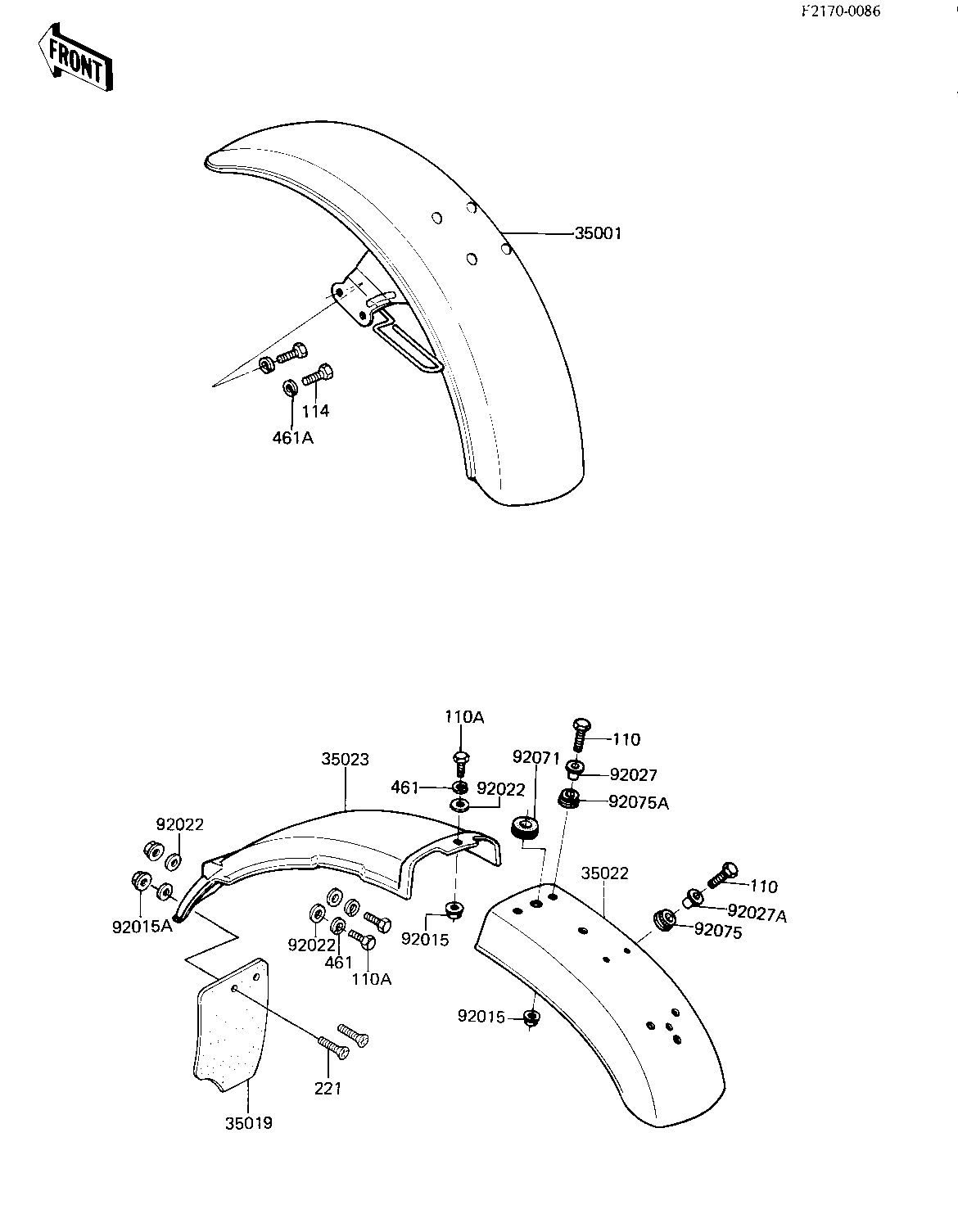

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR 35001 35001-1026 1
FLAP,FENDER 35019 35019-1032 1
FENDER-RR 35022 35022-1051 1
FENDER-RR 35023 35023-1041 1
NUT-6MM 92015 92015-1078 5
NUT,LOCK 6MM 92015A 92017-014 2
WASHER 6.5X20X1.6T 92022 92022-125 5
COLLAR 92027 92027-194 2
COLLAR 92027A 92027-251 2
GROMMET,HARNESS 92071 92071-099 1
DAMPER RUBBER,RR FENR 92075 92075-209 2
DAMPER RUBBER 92075A 92075-277 2
BOLT-UPSET,6X16 110 112G0616 3
BOLT 6X22 110A 112B0622 4
BOLT-SMALL-UPSET,8X16 114 115G0816 4
SCREW CNTSNK HD 6X16 221 221B0616 2
WASHER SPRING 6MM 461 461F0600 3
WASHER SPRING 8MM 461A 461F0800 4
