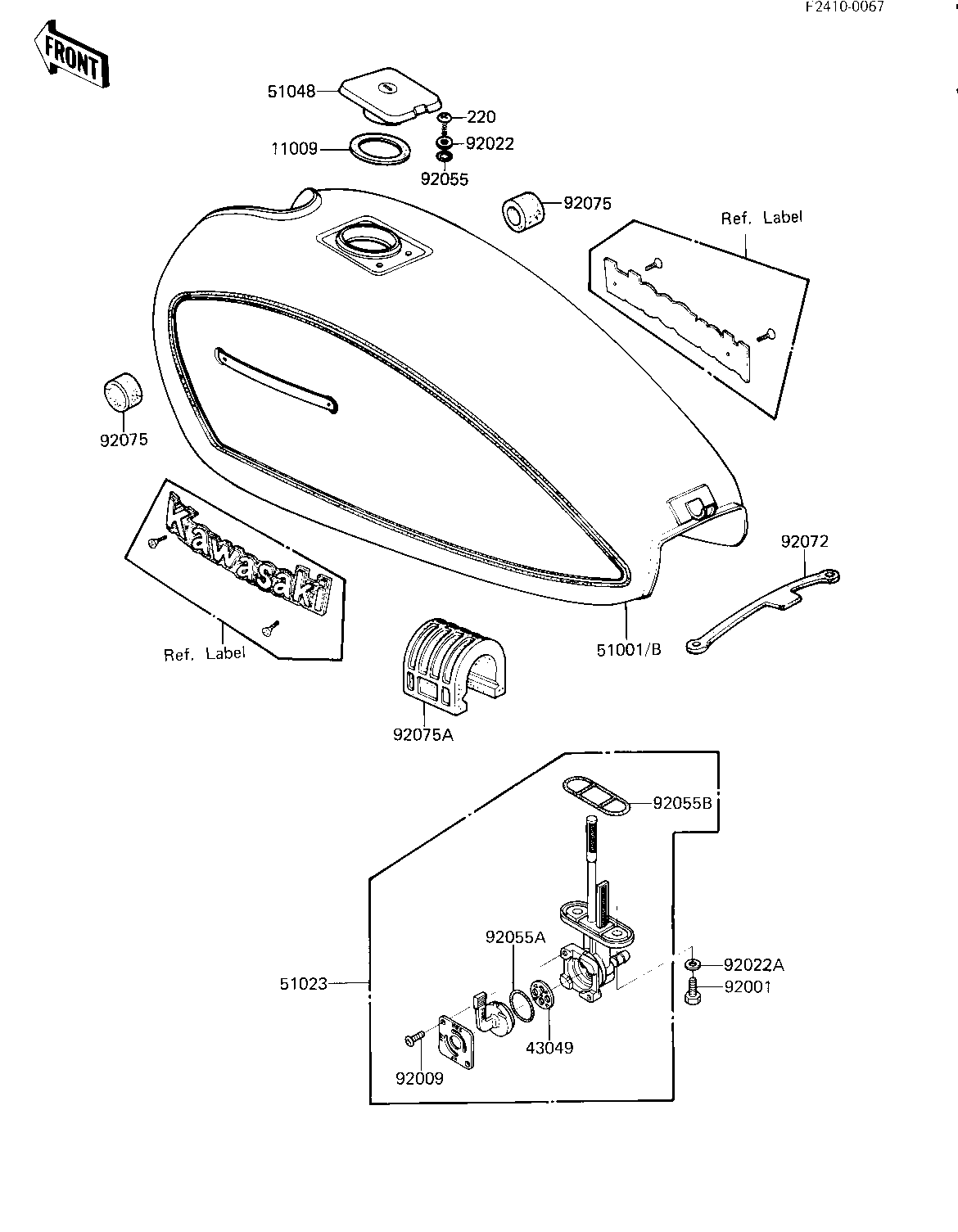

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK CAP 11009 11009-1051 1
PACKING,FUEL TAP VALV 43049 43049-1017 1
TANK-FUEL,L.M.RED 51001 51001-1039-E2 1
TANK-FUEL,EBONY 51001B 51001-5114-8G 1
TAP-ASSY,FUEL 51023 51023-1038 1
CAP ASSY TANK 51048 51048-1018 1
BOLT,6X20,FUEL TAP 92001 92001-1091 2
SCREW PAN HEAD 3X5 92009 220B0305A 2
WASHER,PLAIN 92022 92022-1038 2
WASHER-PLAIN 92022A 92022-183 2
"0" RING 92055 92055-1023 2
"0" RING,FUEL TAP LEV 92055A 92055-1111 1
"0" RING,FUEL TANK 92055B 92055-1112 1
BAND,FUEL TANK 92072 92072-042 1
DAMPER RUBBER-FL TANK 92075 92075-101 2
DAMPER RUBBER,FL TNK 92075A 92075-215 1
SCREW PAN HEAD 5X10 220 220B0510 2
