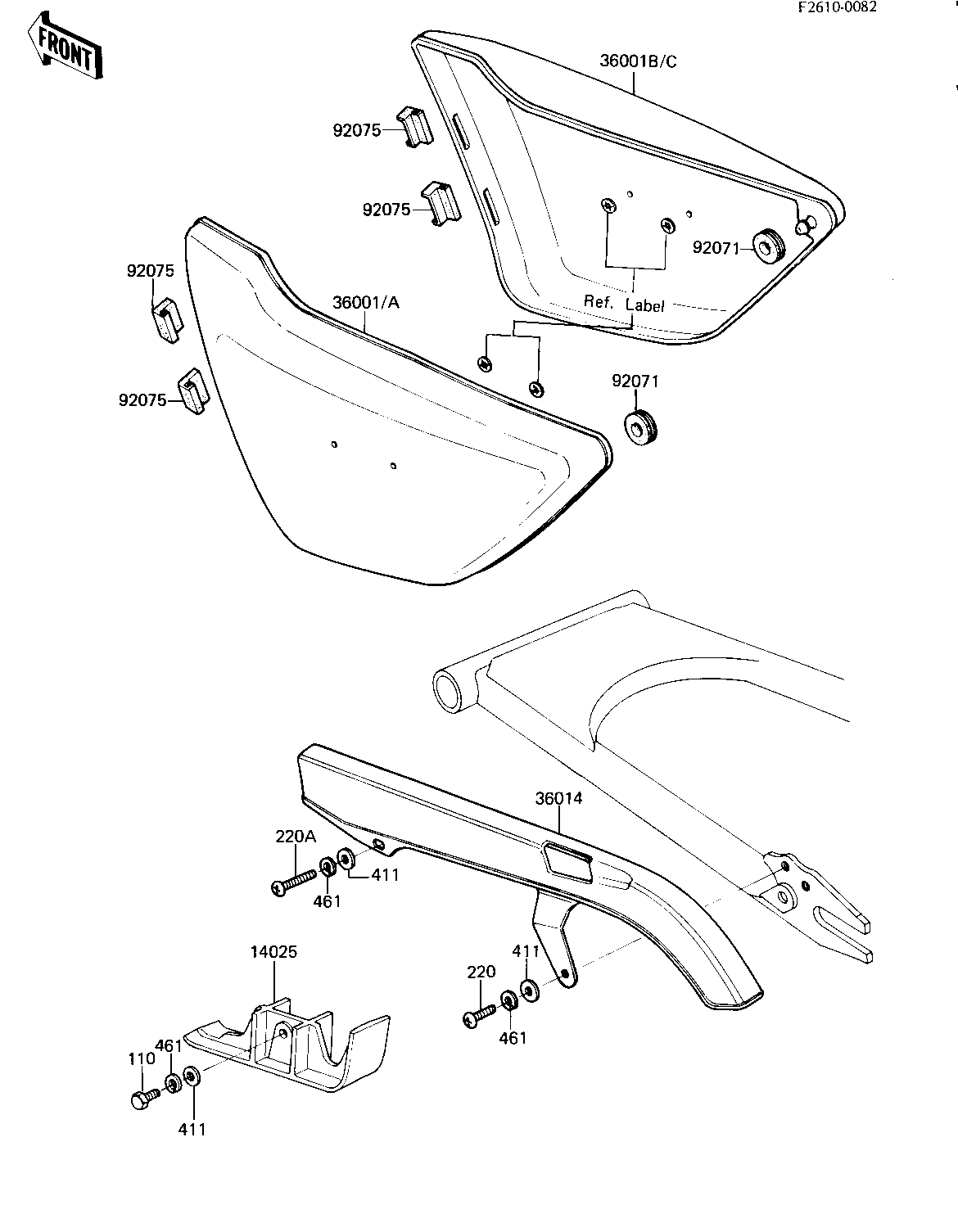

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,DRIVE BELT 14025 14025-1381 1
COVER-SIDE,L.M.RED 36001 36001-1091-E2 1
COVER-SIDE,EBONY 36001A 36001-1091-8G 1
COVER-SIDE,L.M.RED 36001B 36001-1092-E2 1
COVER-SIDE,EBONY 36001C 36001-1092-8G 1
CASE-CHAIN 36014 36014-1050 1
GROMMET 92071 92071-056 2
PROTECTOR SIDE COVER 9207 31082-005 4
BOLT-UPSET 6X14 110 112B0614 1
SCREW PAN HEAD 6X12 220 220B0612 1
SCREW PAN HEAD 6X50 220A 220B0650 1
WASHER PLAIN 6MM 411 411B0600 3
WASHER SPRING 6MM 461 461F0600 3
