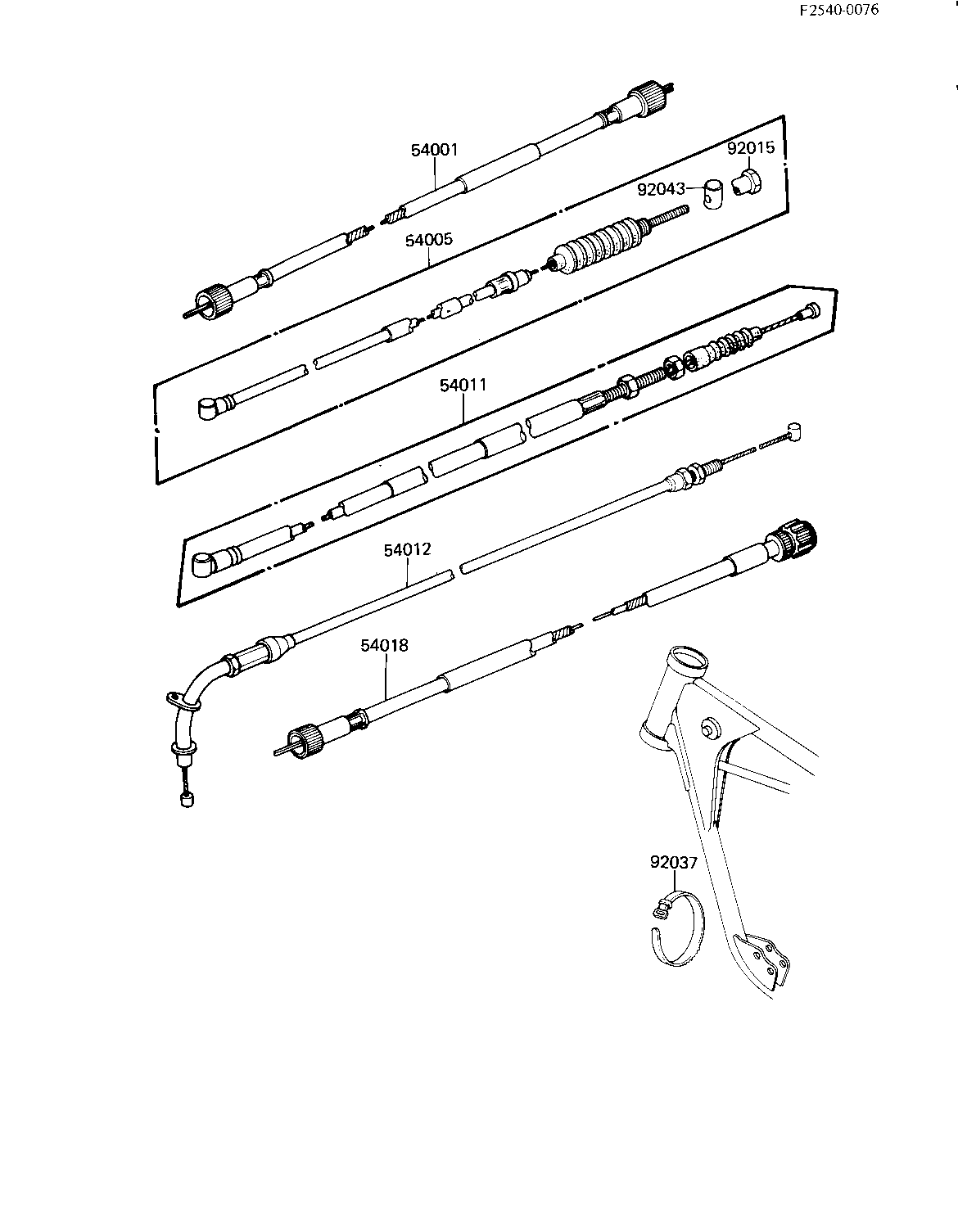

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,SPEEDOMETER 54001 54001-1025 1
CABLE,FRONT BRAKE 54005 54005-1022 1
CABLE-CLUTCH 54011 54011-1079 1
CABLE,THROTTLE CNTRL 54012 54012-1060 1
CABLE,TACHOMETER 54018 54018-024 1
NUT-BRAKE CABLE ADJST 92015 92015-041 1
PIN BRAKE ROD 92043 92043-053 1
BAND,WIRING HARNESS 92072 92072-056 1
