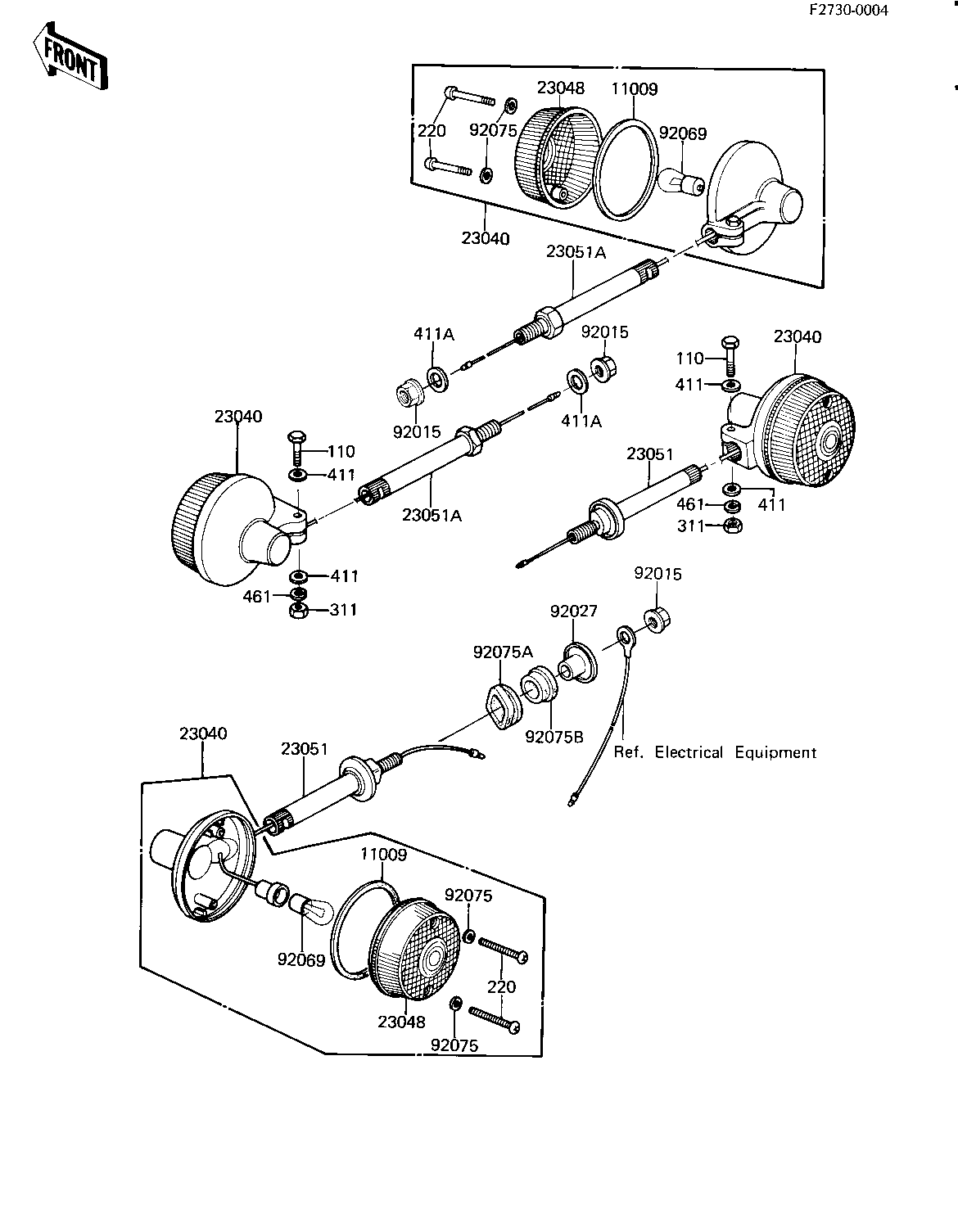

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-SIG LAMP LENS 11009 23050-003 4
LAMP,TURN SIGNAL 23040 23040-054 4
LENS,TURN SIGNAL LAMP 23048 23048-1001 4
BRACKET,TURN SIGNAL 23051 23051-1014 2
BRACKET,SIGNAL LAMP 23051A 23051-1024 2
NUT,FLANGED,10MM 92015 92015-1428 4
COLLAR 92027 92027-147 2
BULB 12V 32CP 92069 92069-055 4
WASHER-PLAIN,4MM 92075 23058-002 8
DAMPER RUBBER 92075A 92075-128 2
DAMPER RUBBER,SIG LM 92075B 92075-158 2
BOLT-UPSET 110 112G0630 4
SCREW-PAN HEAD,4X20 220 220E0420A 8
NUT 6MM 311 311B0600 4
WASHER PLAIN 6MM 411 411B0600 8
WASHER-PLAIN,10MM 411A 411D1000 2
WASHER SPRING 6MM 461 461F0600 4
