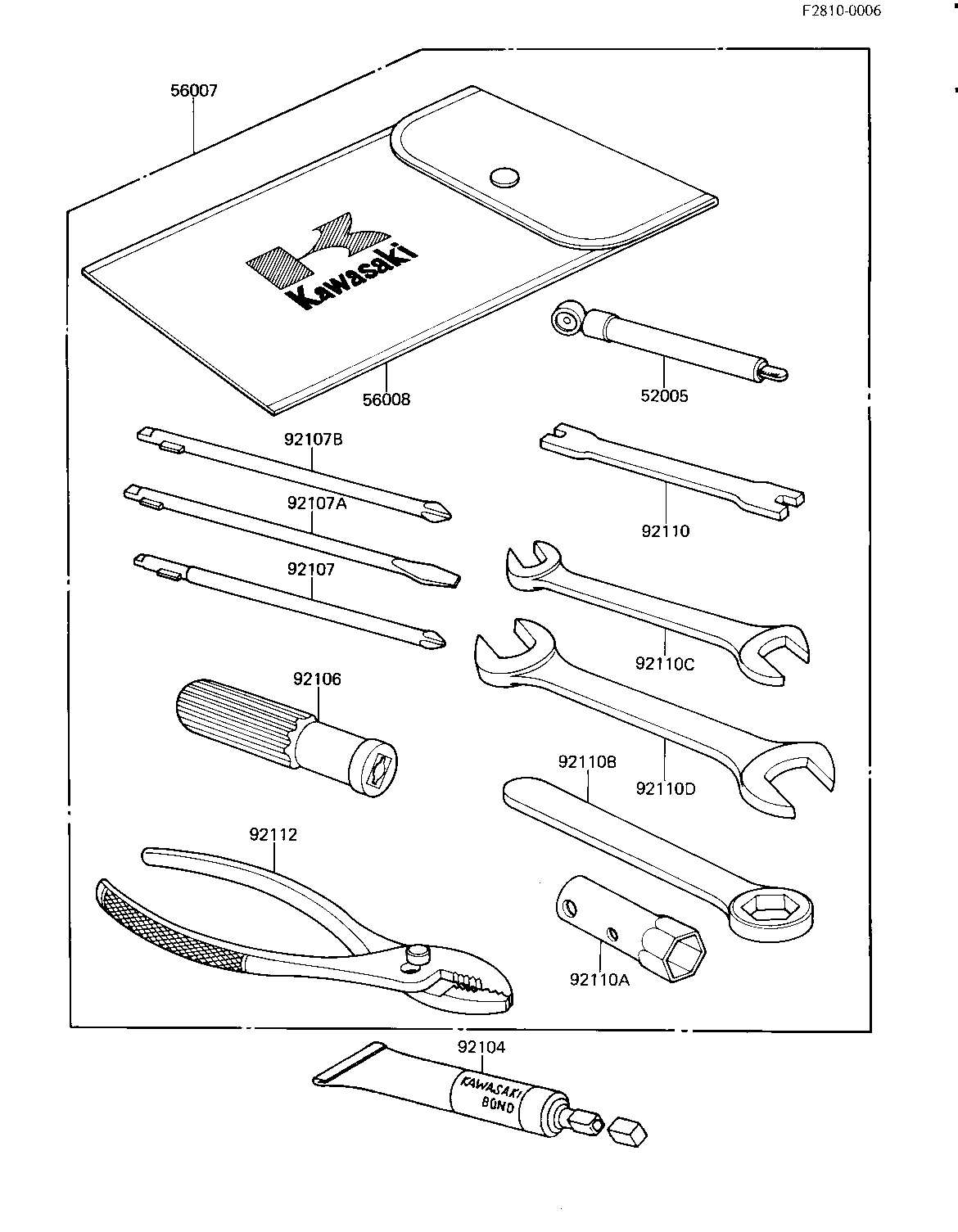

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GAUGE,AIR,3.5KG/CM2 52005 52005-1031 1
TOOL KIT 56007 56007-1072 1
BAG,TOOL 56008 56008-008 1
LIQUID GASKET 92104 92104-002 1 (OPTION)
GRIP,SCREW DRIVER 92106 92106-1001 1
TOOL-DRIVER 92107 92107-1052 1
92107-1052 (Canada) 92107A 92107-007 1
92107-1002 (Canada) 92107B 92107-008 1
TIGHTENER,SPOKE 92110 92108-011 1
WRENCH,BOX,17X21 92110A 92110-012 1
TOOL-WRENCH,BOX END,2 92110B 92110-1148 1
TOOL-WRENCH,OPEN END 92110C 92110-1038 1
TOOL-WRENCH,OPEN END, 92110D 92110-1153 2
PLIERS,160MM 92112 92112-003 1
