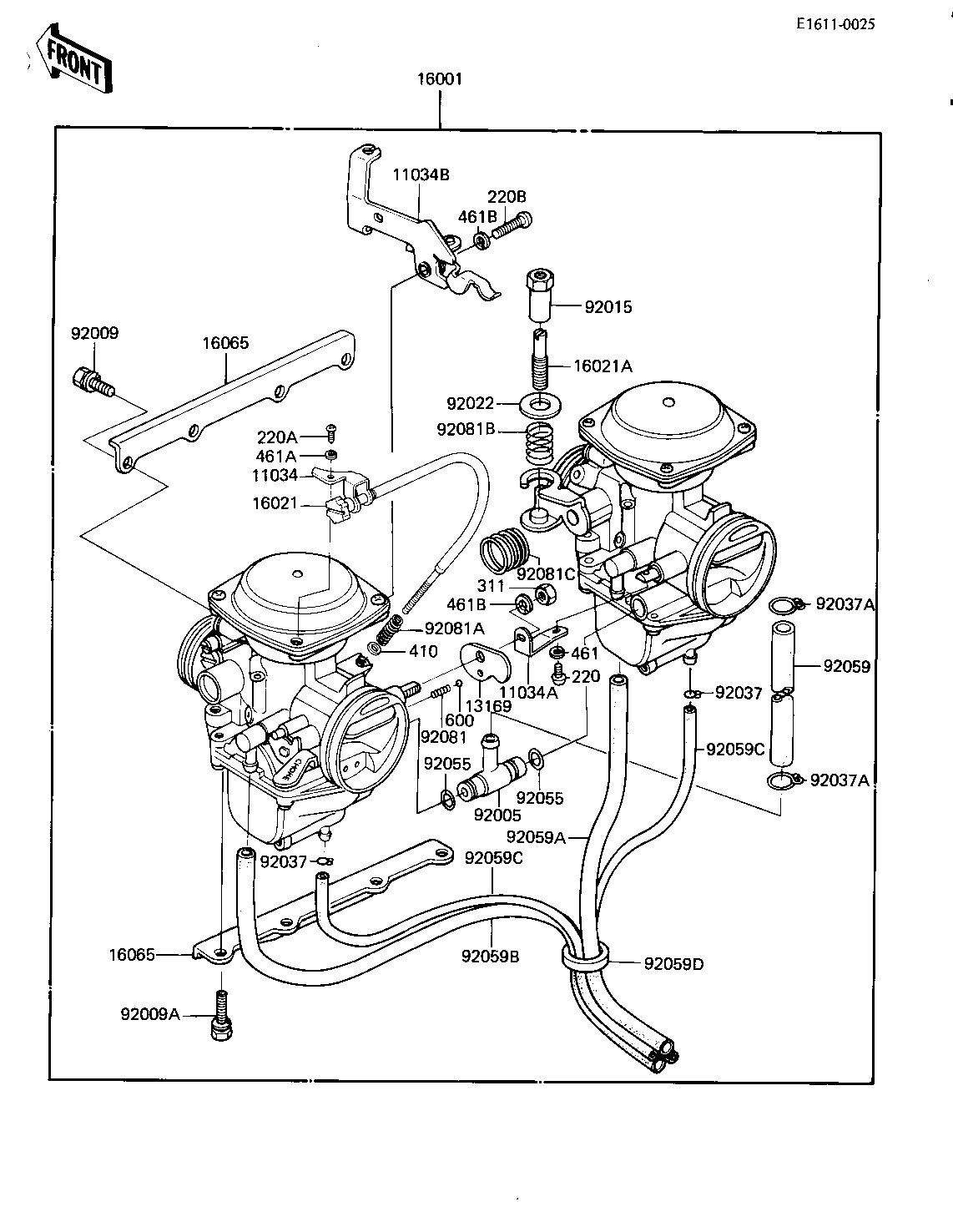

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
STAY,STOP SCREW | 11034 | 11034-1202 | 1 | ||
BRACKET,CHOKE LEVER | 11034A | 11034-1203 | 1 | ||
PLATE,STAY | 11034B | 11034-1826 | 1 | ||
CAM,CHOKE LINK | 13169 | 13169-1151 | 1 | ||
CARBURETOR | 16001 | 16001-1363 | 1 | ||
SCREW,THROTTLE STOP | 16021 | 16021-1007 | 1 | ||
SCREW,SLOTTED | 16021A | 16021-1027 | 1 | ||
PLATE,STAY | 16065 | 16065-1012 | 2 | ||
FITTING,FUEL HOSE | 92065 | 92005-1032 | 1 | ||
SCREW,6X16 | 92009 | 92009-1129 | 4 | ||
BOLT,HEX HEAD,6X22 | 92009A | 92009-1006 | 4 | ||
NUT,5M/M | 92015 | 92015-1118 | 1 | ||
WASHER | 92022 | 92022-1204 | 1 | ||
CLAMP,TUBE,OVERFLOW | 92037 | 92037-1142 | 2 | ||
CLAMP,TUBE | 92037A | 92037-1682 | 2 | ||
"O" RING | 92055 | 92055-1004 | 2 | ||
HOSE,FUEL INLET | 92059 | 92059-1001 | 1 | ||
HOSE | 92059A | 92059-110 | 1 | ||
TUBE,4,5X8X450 | 92059B | 92059-1106 | 1 | ||
HOSE,FUEL OVERFLOW | 92059C | 92059-111 | 2 | ||
TUBE,CLAMP | 92059D | 92059-1114 | 1 | ||
SPRING | 92081 | 92081-1004 | 1 | ||
SPRING,STOP SCREW | 92081A | 92081-1062 | 1 | ||
SPRING | 92081B | 92081-1252 | 1 | ||
SPRING,THROTTLE RETRN | 92081C | 92081-1453 | 1 | ||
SCREW-PAN-HEAD 3X6 | 220 | 220B0306 | 1 | ||
SCREW PAN HEAD 4X10 | 220A | 220B0410 | 1 | ||
SCREW PAN HEAD 5X20 | 220B | 220B0520 | 1 | ||
NUT,5MM | 311 | 311B0500 | 1 | ||
WASHER PLAIN 5MM | 410 | 410B0500 | 1 | ||
WASHER SPRING 3MM | 461 | 461F0300 | 1 | ||
WASHER SPRING 4MM | 461A | 461F0400 | 1 | ||
WASHER SPRING 5MM | 461B | 461F0500 | 2 | ||
BALL,STEEL,1/8" | 600 | 600A0400 | 1 |
STAY,STOP SCREW | |
REF # | 11034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,CHOKE LEVER | |
REF # | 11034A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,STAY | |
REF # | 11034B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAM,CHOKE LINK | |
REF # | 13169 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURETOR | |
REF # | 16001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,THROTTLE STOP | |
REF # | 16021 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,SLOTTED | |
REF # | 16021A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,STAY | |
REF # | 16065 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FITTING,FUEL HOSE | |
REF # | 92065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,6X22 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,5M/M | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE,OVERFLOW | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
"O" RING | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOSE,FUEL INLET | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE | |
REF # | 92059A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,4,5X8X450 | |
REF # | 92059B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE,FUEL OVERFLOW | |
REF # | 92059C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,CLAMP | |
REF # | 92059D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,STOP SCREW | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,THROTTLE RETRN | |
REF # | 92081C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-HEAD 3X6 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 4X10 | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 5X20 | |
REF # | 220B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,5MM | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN 5MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 3MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 4MM | |
REF # | 461A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 5MM | |
REF # | 461B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BALL,STEEL,1/8" | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
