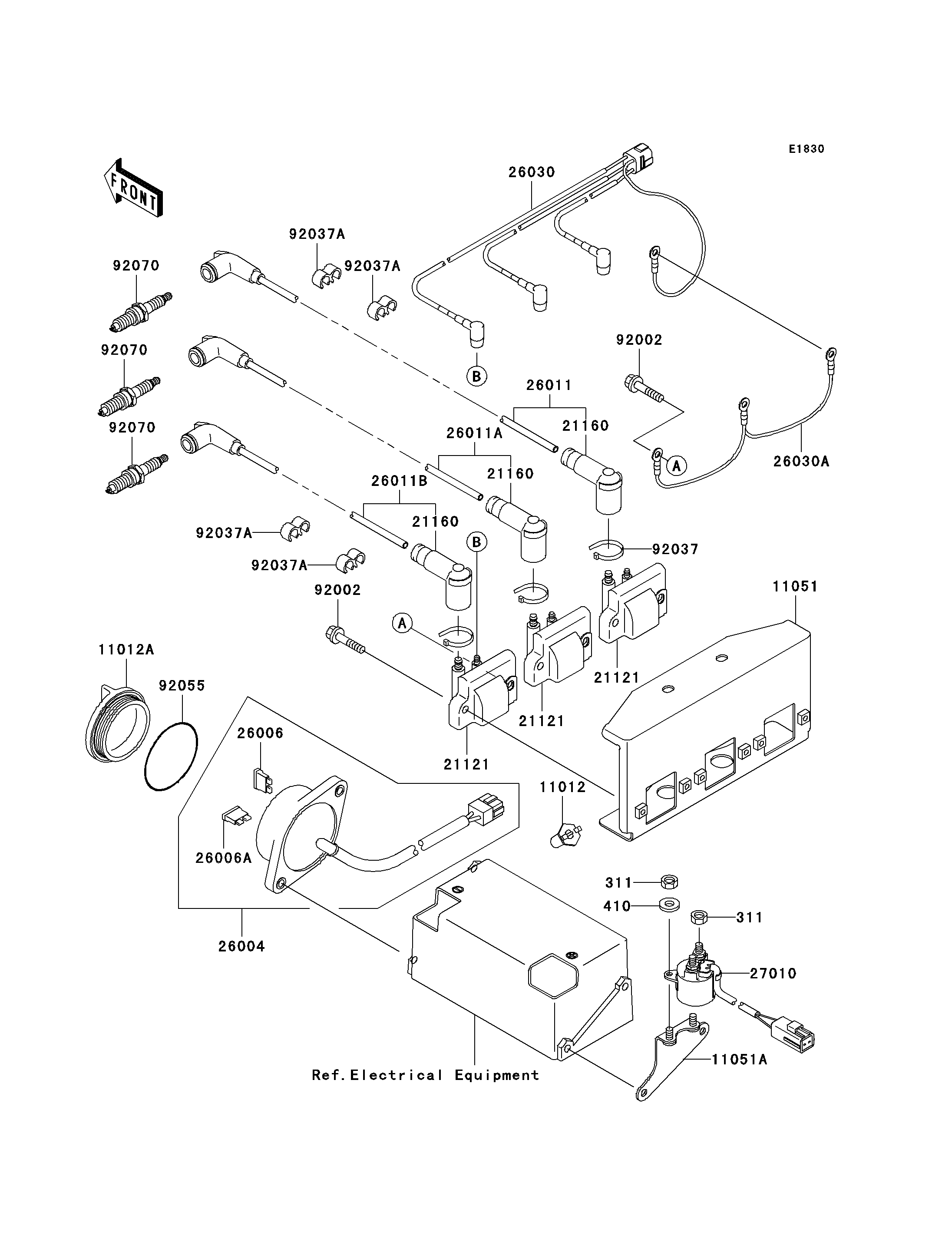

2001 1100 STX D.I. - Ignition System(JT1100-F1)
311
311
410
11012
11012A
11051
11051A
21121
21121
21121
21160
21160
21160
26004
26006
26006A
26011
26011A
26011B
26030
26030A
27010
92002
92002
92037
92037A
92037A
92037A
92037A
92055
92070
92070
92070
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT-HEX,6MM | 311 | 311R0600 | 4 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 2 | ||
| CAP,HOLDER | 11012 | 11012-3768 | 3 | ||
| CAP | 11012A | 11012-3791 | 1 | ||
| BRACKET | 11051 | 11051-3797 | 1 | ||
| BRACKET | 11051A | 11051-3807 | 1 | ||
| COIL-IGNITION | 21121 | 21121-3718 | 3 | ||
| CAP-ASSY-PLUG | 21160 | 21160-3702 | 3 | ||
| FUSE-ASSY | 26004 | 26004-3722 | 1 | ||
| FUSE,10A-R | 26006 | 26006-1007 | 2 | ||
| FUSE,20A-Y | 26006A | 26006-1051 | 2 | ||
| WIRE-LEAD,#1 | 26011 | 26011-3887 | 1 | ||
| WIRE-LEAD,#2 | 26011A | 26011-3888 | 1 | ||
| WIRE-LEAD,#3 | 26011B | 26011-3889 | 1 | ||
| HARNESS | 26030 | 26030-3730 | 1 | ||
| HARNESS | 26030A | 26030-3737 | 1 | ||
| SWITCH | 27010 | 27010-3774 | 1 | ||
| BOLT,6X25 | 92002 | 92002-3714 | 6 | ||
| CLAMP | 92037 | 92037-1173 | 3 | ||
| CLAMP,HOSE | 92037A | 92037-1603 | 4 | ||
| RING-O | 92055 | 92055-1292 | 1 | ||
| PLUG-SPARK,PZFR7G-G(NGK),SOLID | 92070 | 92070-3705 | 3 |
| NUT-HEX,6MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP,HOLDER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION | |
| REF # | 21121 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PLUG | |
| REF # | 21160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| FUSE-ASSY | |
| REF # | 26004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE,10A-R | |
| REF # | 26006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FUSE,20A-Y | |
| REF # | 26006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,#1 | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,#2 | |
| REF # | 26011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,#3 | |
| REF # | 26011B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS | |
| REF # | 26030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS | |
| REF # | 26030A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,PZFR7G-G(NGK),SOLID | |
| REF # | 92070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
