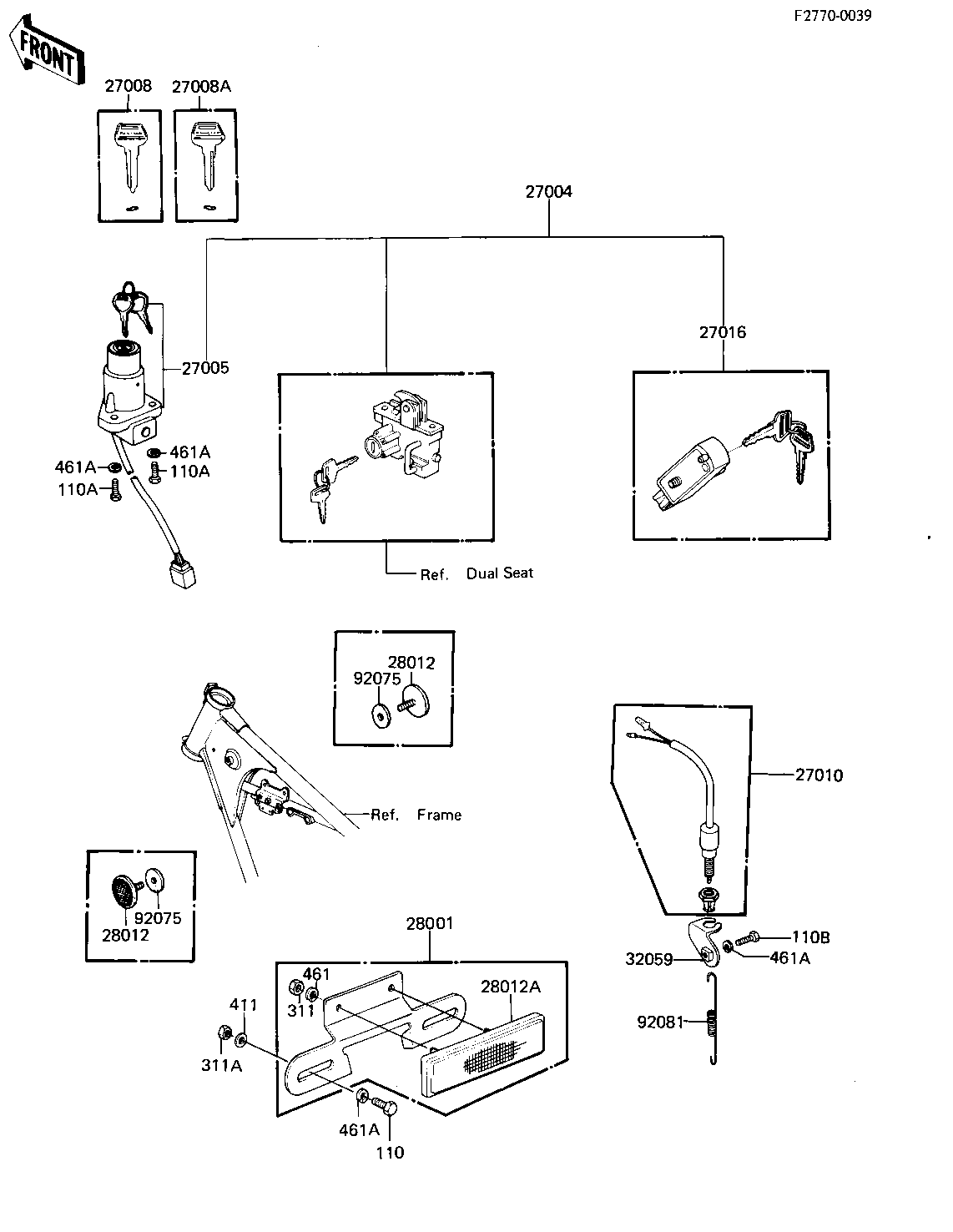

1982 CSR Belt - IGNITION SWITCH/LOCKS/REFLECTORS
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LOCK-ASSY,IGNITION | 27004 | 27004-5117 | 1 | ||
SWITCH-ASSY-IGNITION | 27005 | 27005-1027 | 1 | ||
KEY,BLANK | 27008 | 27008-1034 | 1 | (OPTION) | |
KEY,BLANK | 27008A | 27008-1035 | 1 | (OPTION) | |
SWITCH,BRAKE LIGHT | 27010 | 27010-025 | 1 | ||
LOCK-ASSY,HELMET | 27016 | 27016-5029 | 1 | ||
REFLECTOR ASSY,RR | 28001 | 28001-1012 | 1 | ||
REFLECTOR,REFLEX | 28012 | 28012-016 | 2 | ||
REFLECTOR,REAR REFLEX | 28012A | 28012-1005 | 1 | ||
BRACKET-SWITCH,BRAKE | 32059 | 32059-1006 | 1 | ||
DAMPER RUBBER,REFLECT | 92075 | 92094-011 | 2 | ||
SPRING-BRAKE LAMP SW | 92081 | 27011-011 | 1 | ||
BOLT-UPSET,6X12 | 110 | 112G0612 | 2 | ||
BOLT-UPSET,6X16 | 110A | 112G0616 | 2 | ||
BOLT-UPSET | 110B | 112G0618 | 1 | ||
NUT,5MM | 311 | 311B0500 | 2 | ||
NUT 6MM | 311A | 311B0600 | 2 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
WASHER SPRING 5MM | 461 | 461F0500 | 2 | ||
WASHER SPRING 6MM | 461A | 461F0600 | 5 |
