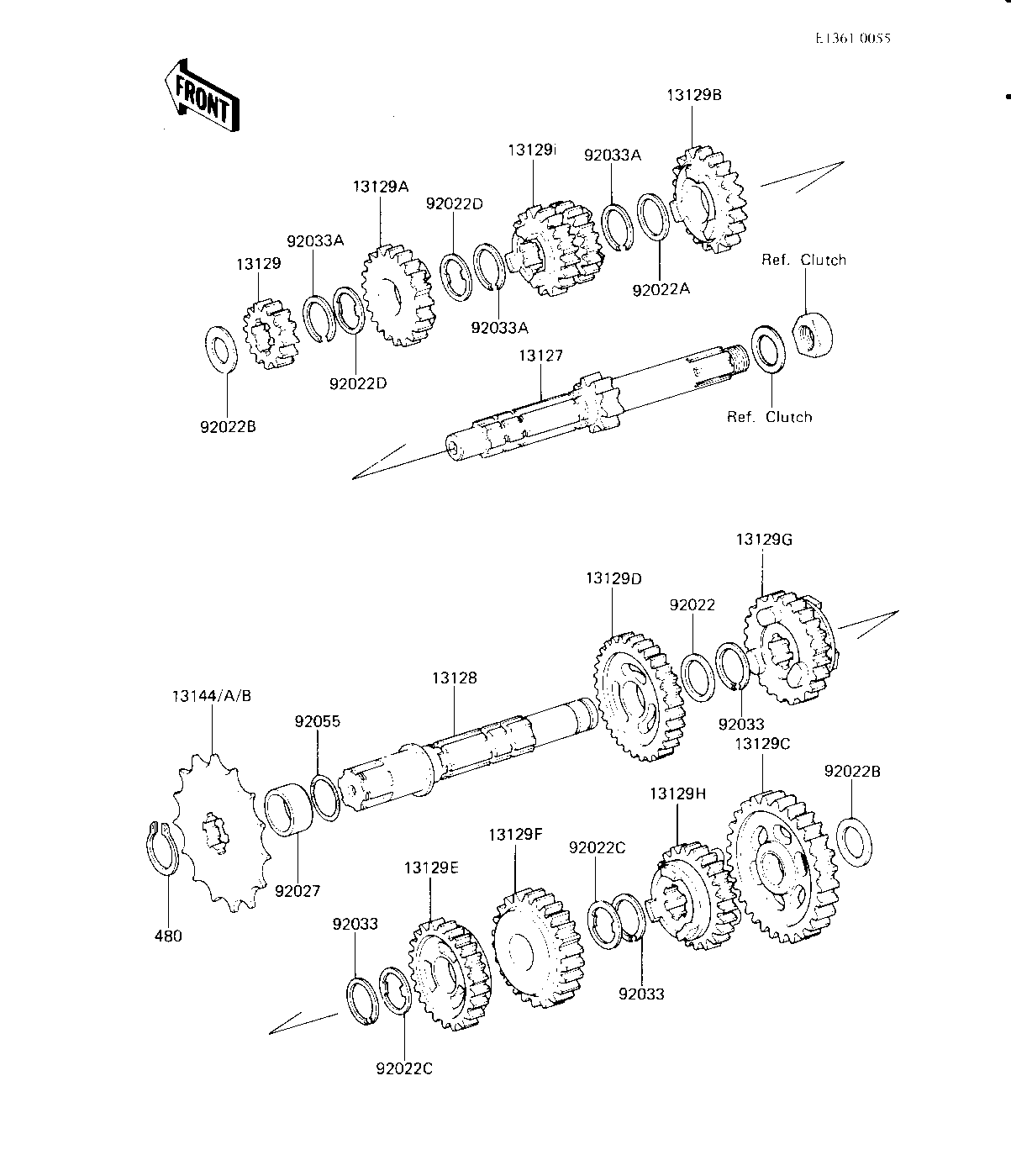

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION IN | 13127 | 13127-1045 | 1 | ||
| SHAFT-TRANSMISSION OU | 13128 | 13128-1038 | 1 | ||
| GEAR,INPUT,2ND,16T | 13129 | 13129-1300 | 1 | ||
| GEAR,INPUT-5TH,24T | 13129A | 13129-1302 | 1 | ||
| GEAR,INPUT,TOP,22T | 13129B | 13129-1303 | 1 | ||
| GEAR,OUTPUT,LOW,30T | 13129C | 13129-1304 | 1 | ||
| GEAR,OUTPUT,2ND,28T | 13129D | 13129-1305 | 1 | ||
| GEAR,OUTPUT,3RD,28T | 13129E | 13129-1306 | 1 | ||
| GEAR,OUTPUT,4TH,26T | 13129F | 13129-1307 | 1 | ||
| GEAR,OUTPUT,5TH,25T | 13129G | 13129-1308 | 1 | ||
| GEAR,OUTPUT,TOP,21T | 13129H | 13129-1309 | 1 | ||
| GEAR,INPUT,3RD&4TH,20 | 13129I | 13129-1340 | 1 | ||
| ENGINE SPROCKET,11T | 13144 | 13144-1036 | 1 | (OPTION) | |
| SPROCKET-OUTPUT,12T | 13144A | 13144-1049 | 1 | (OPTION) | |
| SPROCKET-OUTPUT 13T | 13144B | 13144-1050 | 1 | ||
| WASHER-PLAIN | 92022 | 92022-198 | 1 | ||
| WASHER | 92022A | 92022-252 | 1 | ||
| WASHER,THRUST,15MM | 92022B | 92022-279 | 2 | ||
| WASHER-LOCK | 92022C | 92024-039 | 2 | ||
| WASHER,LOCK | 92022D | 92024-059 | 2 | ||
| COLLAR,20X25X10.8 | 92027 | 92027-1445 | 1 | ||
| CIRCLIP,25MM | 92033 | 92033-025 | 3 | ||
| CIRCLIP,18MM | 92033A | 92033-029 | 3 | ||
| "0" RING | 92055 | 92055-022 | 1 | ||
| CIRCLIP, 20MM | 480 | 480J2000 | 1 |
