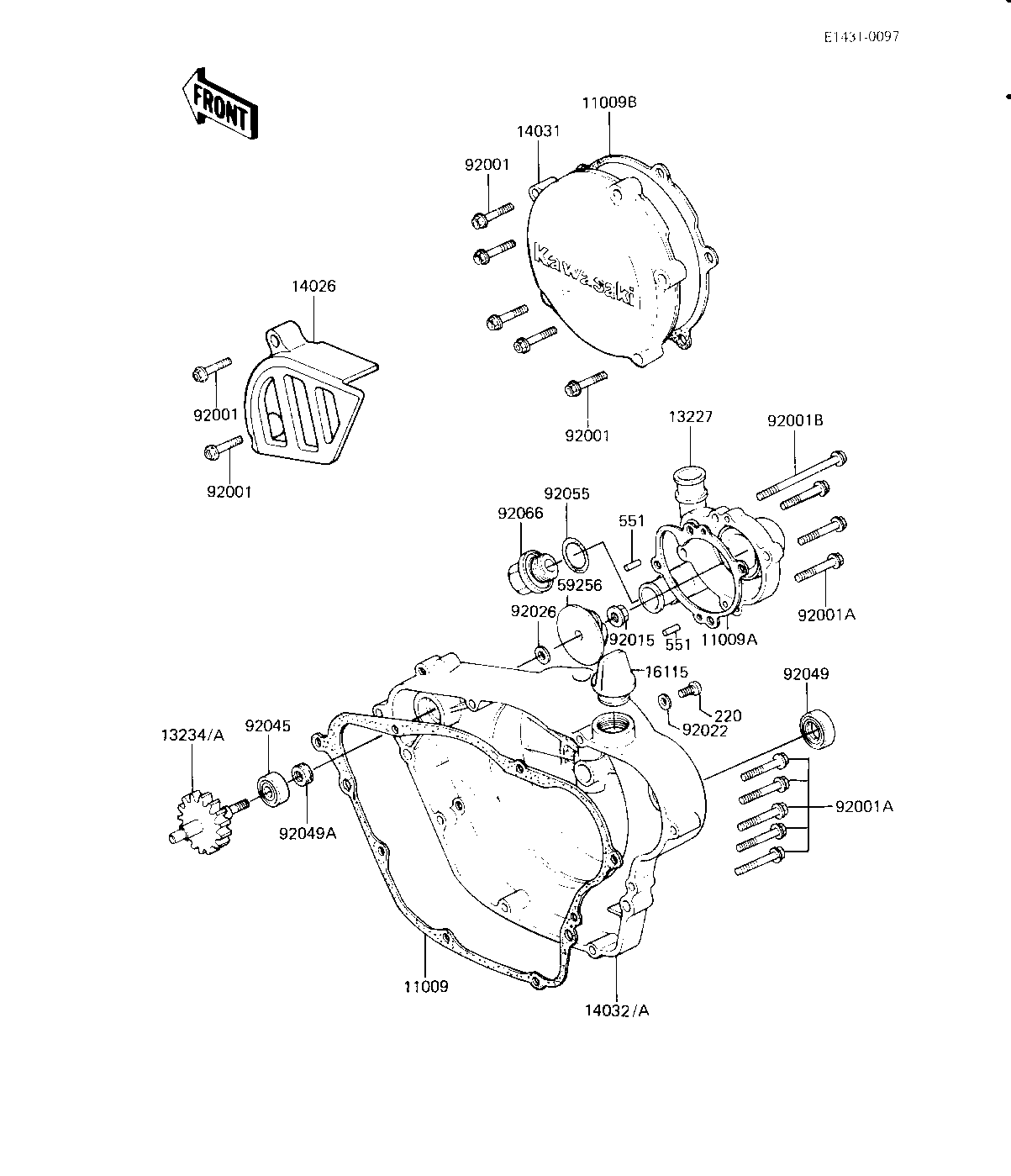

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,CLUTCH COVER | 11009 | 11009-1264 | 1 | ||
GASKET,WATER PUMP HOU | 11009A | 11009-1265 | 1 | ||
GASKET,GENERATOR COVE | 11009B | 11009-1266 | 1 | ||
HOUSING,WATER PUMP | 13227 | 13227-1004 | 1 | ||
SHAFT-COMP,WATER PUMP | 13234A | 13234-1009 | 1 | ||
COVER-CHAIN | 14026 | 14026-1119 | 1 | ||
COVER-GENERATOR | 14031 | 14031-1074 | 1 | ||
COVER-CLUTCH | 14032A | 14032-5020 | 1 | ||
FILLER,OIL | 16115 | 16115-018 | 1 | ||
IMPELLER,WATER PUMP | 59256 | 59256-1002 | 1 | ||
BOLT-FLANGED-SMALL | 92001 | 132G0625 | 7 | ||
BOLT-FLANGED-SMALL | 92001A | 132G0630 | 10 | ||
BOLT-FLANGED-SMALL | 92001B | 132G0670 | 1 | ||
NUT-6MM | 92015 | 92015-1078 | 1 | ||
WASHER OIL PUMP BANJO | 92022 | 92022-077 | 1 | ||
WASHER,THRUST | 92026 | 92026-094 | 1 | ||
BEARING-BALL | 92045 | 92045-1212 | 1 | ||
OIL SEAL SB16244 | 92049 | 92049-002 | 1 | ||
SEAL-OIL,MHSD8X18X10J | 92049A | 92049-1366 | 1 | ||
RING-O | 92055 | 92055-1146 | 1 | ||
PLUG | 92066 | 92066-066 | 1 | ||
SCREW PAN HEAD 6X8 | 220 | 220B0608 | 1 | ||
PIN,DOWEL,4X8 | 551 | 551A0408 | 2 |
GASKET,CLUTCH COVER | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,WATER PUMP HOU | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,GENERATOR COVE | |
REF # | 11009B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING,WATER PUMP | |
REF # | 13227 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-COMP,WATER PUMP | |
REF # | 13234A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-CHAIN | |
REF # | 14026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-GENERATOR | |
REF # | 14031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-CLUTCH | |
REF # | 14032A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILLER,OIL | |
REF # | 16115 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
IMPELLER,WATER PUMP | |
REF # | 59256 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 92001B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER OIL PUMP BANJO | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,THRUST | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL SB16244 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,MHSD8X18X10J | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X8 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,DOWEL,4X8 | |
REF # | 551 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
