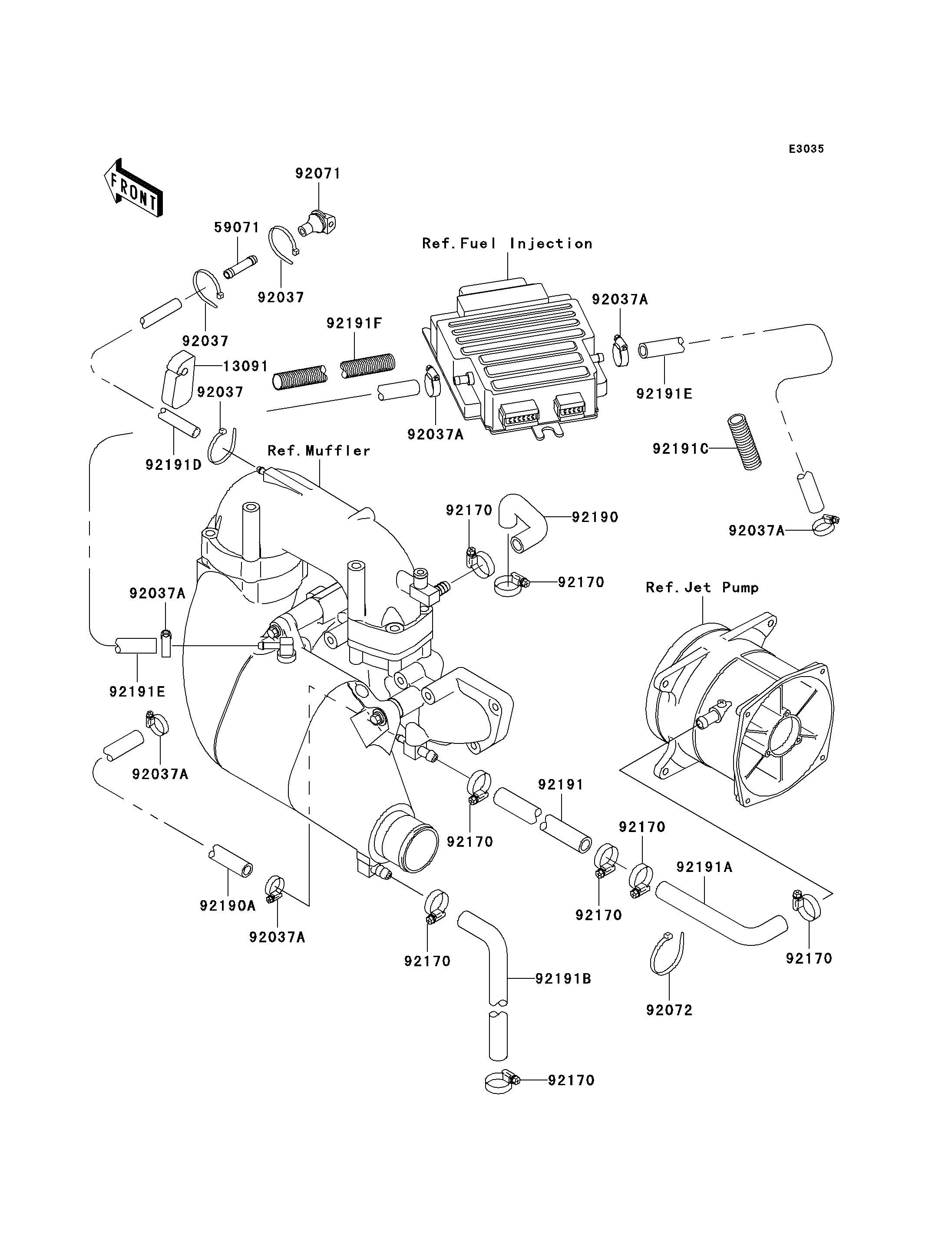

Parts Diagrams |
13091
59071
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92071
92072
92170
92170
92170
92170
92170
92170
92170
92170
92190
92190A
92191
92191A
92191B
92191C
92191D
92191E
92191E
92191F
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER | 13091 | 13091-3712 | 1 | ||
| JOINT | 59071 | 59071-3764 | 1 | ||
| CLAMP | 92037 | 92037-1173 | 3 | ||
| CLAMP | 92037A | 92037-3726 | 6 | ||
| GROMMET | 92071 | 92071-3815 | 1 | ||
| BAND,L=201 | 92072 | 92072-3778 | 1 | ||
| CLAMP | 92170 | 92170-3718 | 8 | ||
| TUBE,HEAD-EXHAUSTPIPE | 92190 | 92190-3955 | 1 | ||
| TUBE,MANIFOLD-COVER | 92190A | 92190-3974 | 1 | ||
| TUBE,EXHAUSTMANIFOLD-HULL | 92191 | 92191-3745 | 1 | ||
| TUBE,PUMP-HULL | 92191A | 92191-3785 | 1 | ||
| TUBE,CHAMBER-TAIL PIPE | 92191B | 92191-3850 | 1 | ||
| TUBE | 92191C | 92191-3868 | 1 | ||
| TUBE,7X12X1590 | 92191D | 92191-3874 | 1 | ||
| TUBE,5.8X11.8X620 | 92191E | 92191-3875 | 2 | ||
| TUBE | 92191F | 92191-3916 | 1 |
| HOLDER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=201 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| TUBE,HEAD-EXHAUSTPIPE | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,MANIFOLD-COVER | |
| REF # | 92190A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,EXHAUSTMANIFOLD-HULL | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,PUMP-HULL | |
| REF # | 92191A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,CHAMBER-TAIL PIPE | |
| REF # | 92191B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92191C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,7X12X1590 | |
| REF # | 92191D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,5.8X11.8X620 | |
| REF # | 92191E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92191F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
