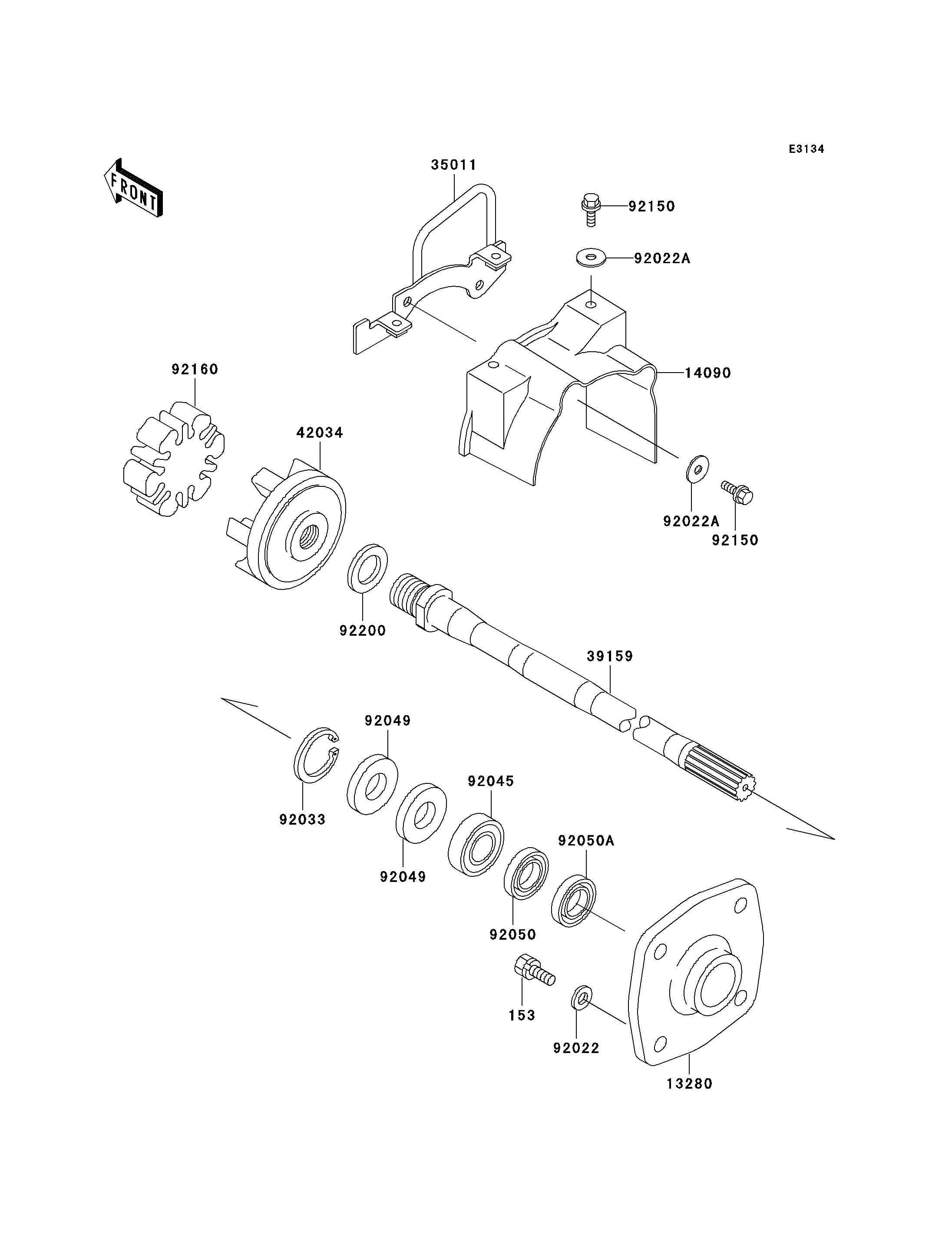

2001 1100 STX D.I. - Drive Shaft

DOWNLOAD PDF
SELECT A NEW PART
153
13280
14090
35011
39159
42034
92022
92022A
92022A
92033
92045
92049
92049
92050
92050A
92150
92150
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WS-SMALL 153 153R0830 4
HOLDER 13280 13280-3730 1
COVER,COUPLING 14090 14090-3789 1
STAY 35011 35011-3715 1
SHAFT-DRIVE 39159 39159-3732 1
COUPLING 42034 42034-3709 1
WASHER,8.2X18X1.5 92022 92022-1964 4
WASHER,6.5X20X1.5 92022A 92022-3710 4
RING-SNAP,42MM 92033 92033-3713 1
BEARING-BALL,60042RD 92045 92045-3705 1
SEAL-OIL,S620426 92049 92049-3707 2
SEAL-OIL,SCY20368 92050 92050-502 1
SEAL-OIL,SC20367 92050A 92050-503 1
BOLT,6X18 92150 92150-3729 4
DAMPER,COUPLING 92160 92160-3883 1
WASHER,24X32X2.0 92200 92200-3739 1
