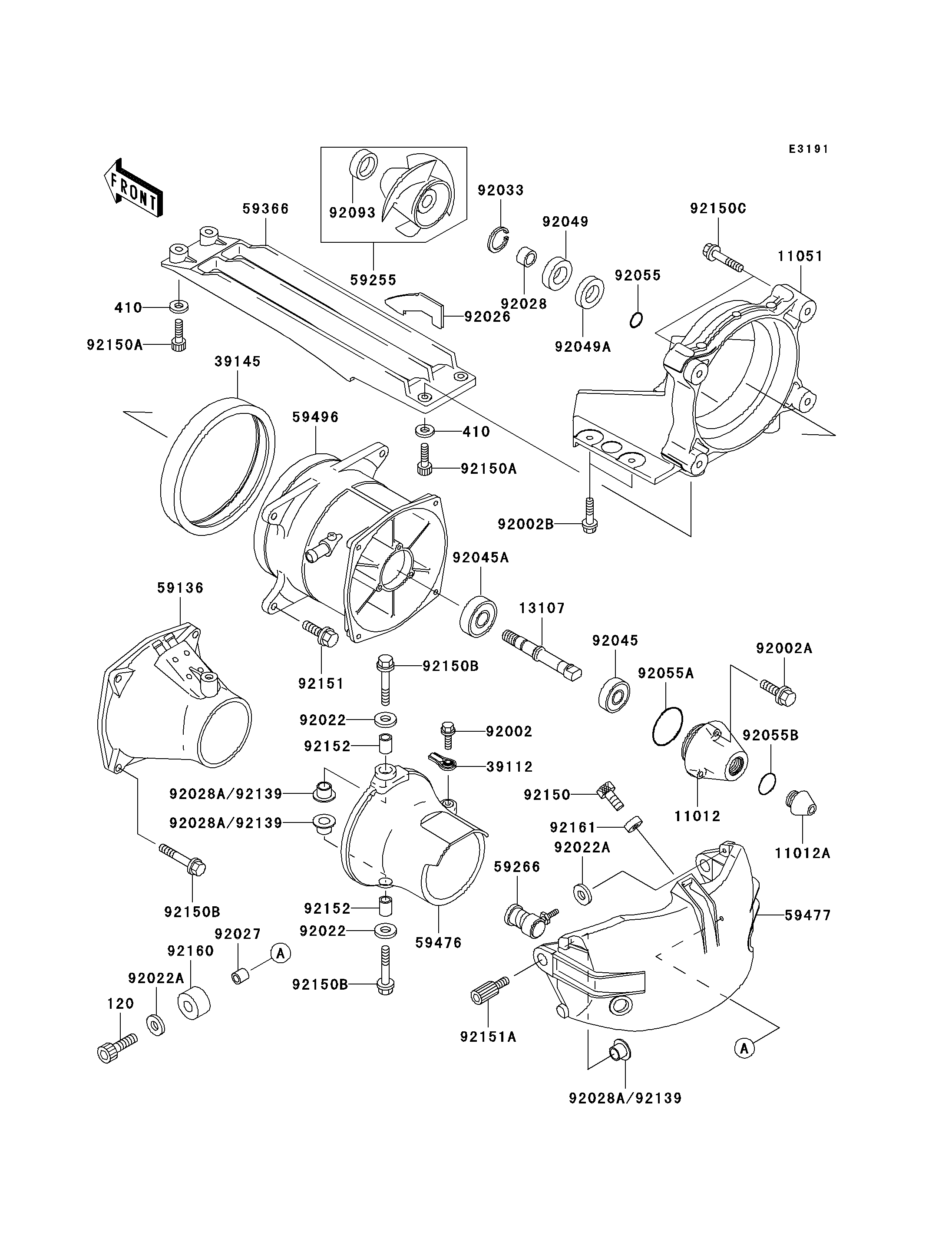

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11012
11012
11012A
11012A
11051
11051
13107
13107
39112
39112
39145
39145
59136
59136
59255
59255
59266
59266
59366
59366
59476
59476
59477
59477
59496
59496
92002
92002
92002A
92002A
92002B
92002B
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92026
92026
92027
92027
92028
92028
92028A
92028A
92028A
92028A
92028A
92028A
92033
92033
92045
92045
92045A
92045A
92049
92049
92049A
92049A
92055
92055
92055A
92055A
92055B
92055B
92093
92093
92150
92150
92150A
92150A
92150A
92150A
92150B
92150B
92150B
92150B
92150B
92150B
92150C
92150C
92151
92151
92151A
92151A
92152
92152
92152
92152
92160
92160
120
120
410
410
410
410
92161
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-3785 | 1 | ||
| CAP | 11012A | 11012-3786 | 1 | ||
| BRACKET | 11051 | 11051-3763 | 1 | ||
| SHAFT,JETPUMP | 13107 | 13107-3752 | 1 | ||
| RODEND-TIE | 39112 | 39112-3703 | 1 | ||
| TRIM-SEAL | 39145 | 39145-3742 | 1 | ||
| NOZZLE-PUMP | 59136 | 59136-3747 | 1 | ||
| IMPELLER-COMP | 59255 | 59255-3717 | 1 | ||
| JOINT-BALL | 59266 | 59266-3707 | 1 | ||
| GRATE | 59366 | 59366-3719 | 1 | ||
| NOZZLE-STRG | 59476 | 59476-3739 | 1 | ||
| BUCKET-REVERSE | 59477 | 59477-3707 | 1 | ||
| VANE-GUIDE | 59496 | 59496-3718 | 1 | ||
| BOLT,6X25 | 92002 | 92002-3714 | 1 | ||
| BOLT,6X30 | 92002A | 92002-3726 | 3 | ||
| BOLT,6X20 | 92002B | 92002-3755 | 4 | ||
| WASHER,PLAIN | 92022 | 92022-3026 | 2 | ||
| WASHER | 92022A | 92022-567 | 2 | ||
| SPACER | 92026 | 92026-3742 | 3 | ||
| COLLAR,6.2X10X10 | 92027 | 92027-3705 | 1 | ||
| BUSHING | 92028 | 92028-3756 | 1 | ||
| BUSHING | 92028A | 92028-3757 | 4 | ||
| RING-SNAP | 92033 | 92033-3725 | 1 | ||
| BEARING-BALL,62022RD | 92045 | 92045-3721 | 1 | ||
| BEARING-BALL | 92045A | 92045-3727 | 1 | ||
| SEAL-OIL,SCJ30X50X7 | 92049 | 92049-3720 | 1 | ||
| SEAL-OIL,SCY30X50X7 | 92049A | 92049-3721 | 1 | ||
| RING-O,OIL FILTER | 92055 | 92055-1011 | 1 | ||
| RING-O | 92055A | 92055-3741 | 1 | ||
| RING-O | 92055B | 92055-3744 | 1 | ||
| SEAL,JET PUMP | 92093 | 92093-3739 | 1 | ||
| BOLT,SOCKET,6X10 | 92150 | 92150-3759 | 1 | ||
| BOLT,SOCKET,6X18 | 92150A | 92150-3775 | 4 | ||
| BOLT,8X35 | 92150B | 92150-3792 | 6 | ||
| BOLT,FLANGED,8X30 | 92150C | 92150-3803 | 2 | ||
| BOLT,10X30 | 92151 | 92151-3706 | 4 | ||
| BOLT | 92151A | 92151-3716 | 2 | ||
| COLLAR,8.2X11.8X15 | 92152 | 92152-3703 | 2 | ||
| DAMPER | 92160 | 92160-3739 | 1 | ||
| BOLT-SOCKET,6X20 | 120 | 120R0620 | 1 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 4 | ||
| DAMPER | 92161 | 92161-3717 | 1 |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,JETPUMP | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RODEND-TIE | |
| REF # | 39112 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM-SEAL | |
| REF # | 39145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE-PUMP | |
| REF # | 59136 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| IMPELLER-COMP | |
| REF # | 59255 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-BALL | |
| REF # | 59266 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRATE | |
| REF # | 59366 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE-STRG | |
| REF # | 59476 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUCKET-REVERSE | |
| REF # | 59477 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VANE-GUIDE | |
| REF # | 59496 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X30 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.2X10X10 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 92028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,62022RD | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 92045A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,SCJ30X50X7 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,SCY30X50X7 | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,OIL FILTER | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,JET PUMP | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X10 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X18 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X35 | |
| REF # | 92150B |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X30 | |
| REF # | 92150C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X30 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92151A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,8.2X11.8X15 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X20 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
