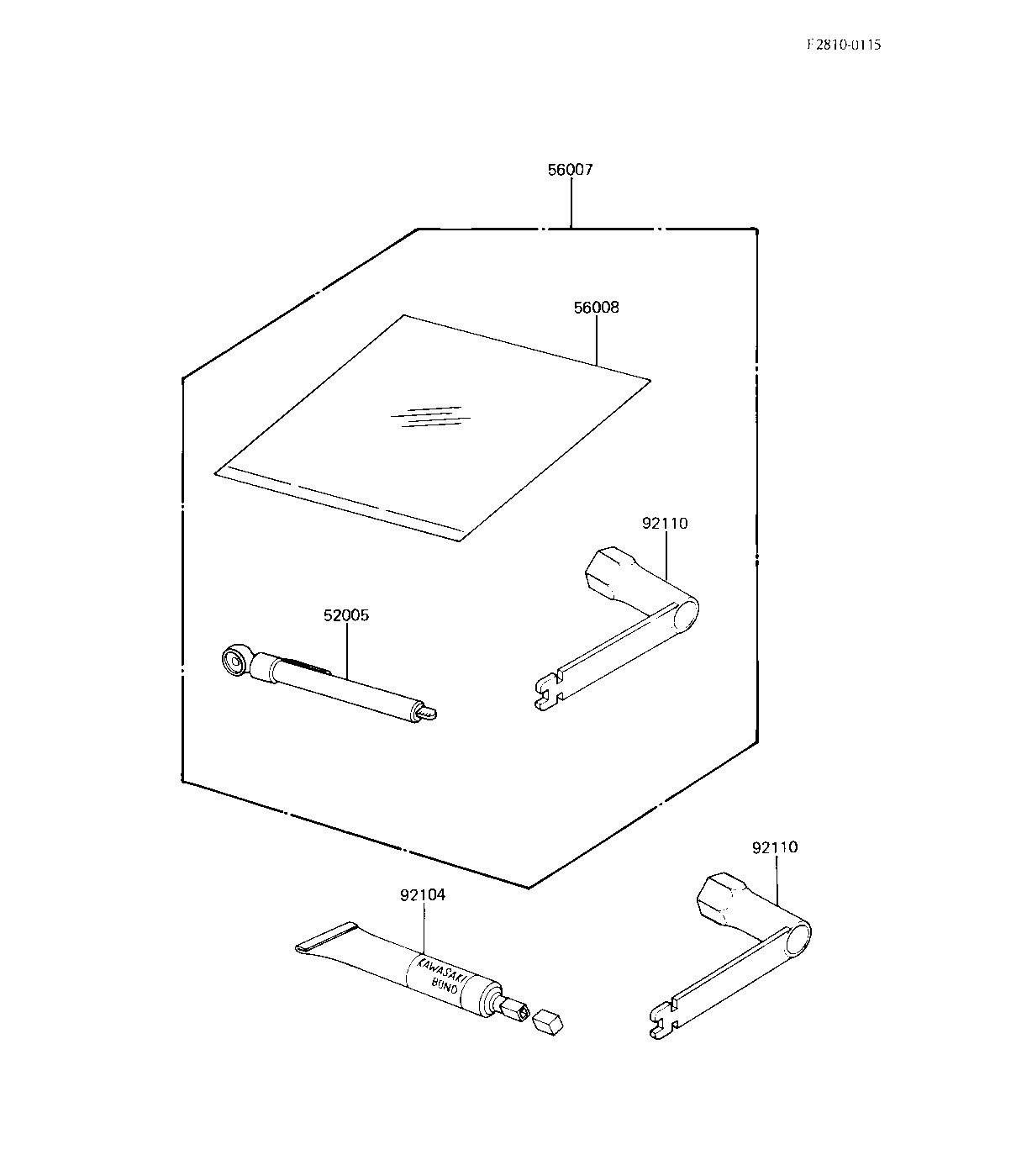

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GAUGE,AIR 52005 52005-4002 1
TOOLKIT 56007 56007-1142 1
BAG 56008 56008-1018 1
LIQUID GASKET 92104 92104-002 1
TOOL-WRENCH,BOX&SPOKE 92110 92110-1041 1
