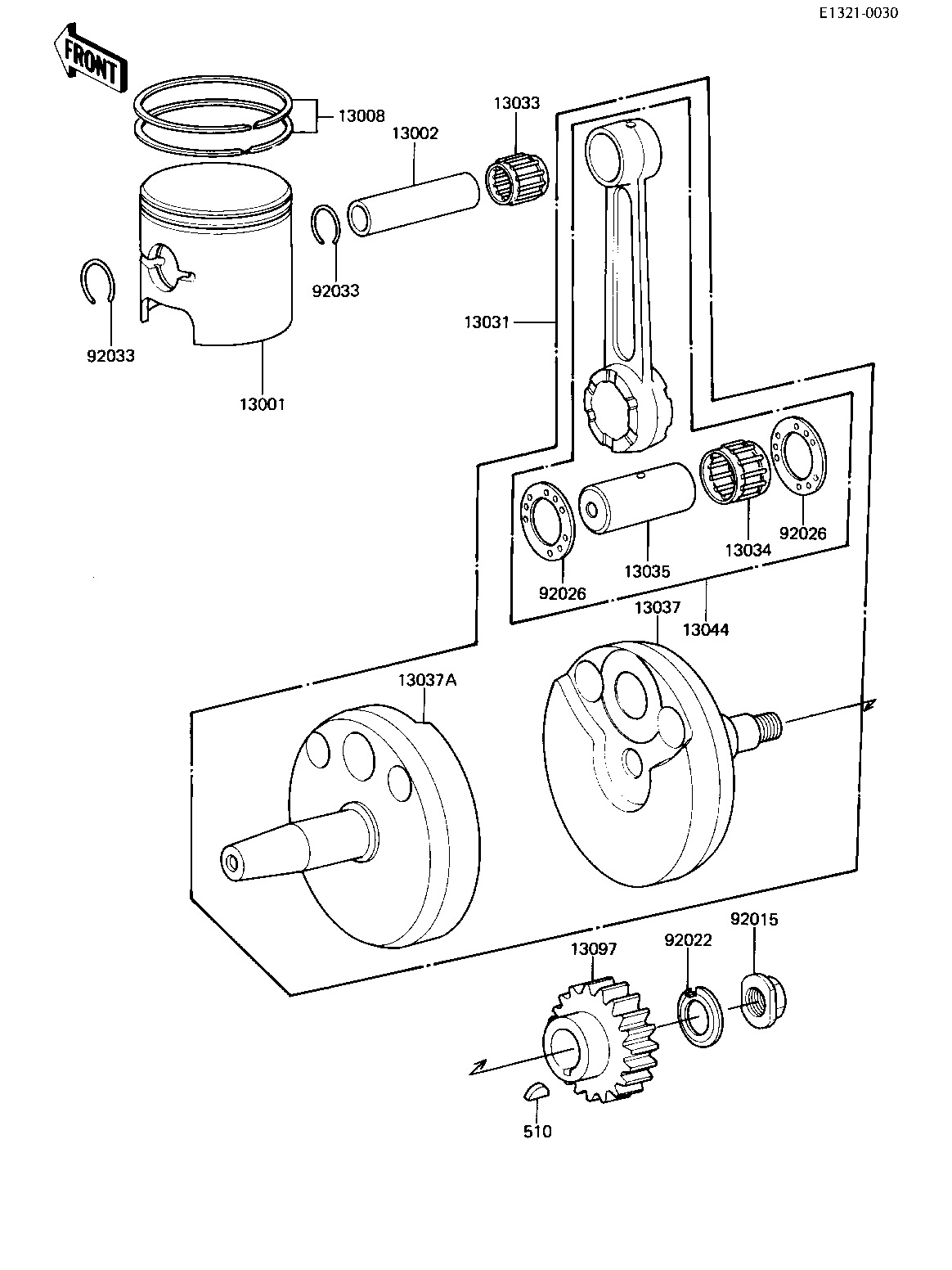

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON,S.T.D 13001 13001-1034 1
PIN-PISTON 13002 13002-017 1
RING SET,STD 13008 13008-5026 1
CRANKSHAFT ASSY 13031 13031-1049 1
BEARING-SMALL END 13033 13033-1010 1
BEARING,BIG END NEEDL 13034 13034-049 1
PIN,CRANK 13035 13035-034 1
CRANKSHAFT RH 13037 13037-1069 1
CRANKSHAFT LH 13037A 13037-1097 1
CONNECTING ROD SET 13044 13044-5007 1
GEAR,PRIMARY 13097 13097-1028 1
NUT,CRANKSHAFT 92015 92015-069 1
WASHER,LOCK 92022 92024-061 1
SPACER 92026 92026-1241 2
CIRCLIP-PISTON PIN 92033 92036-015 2
WOODRUFF KEY 510 510A5100 1
