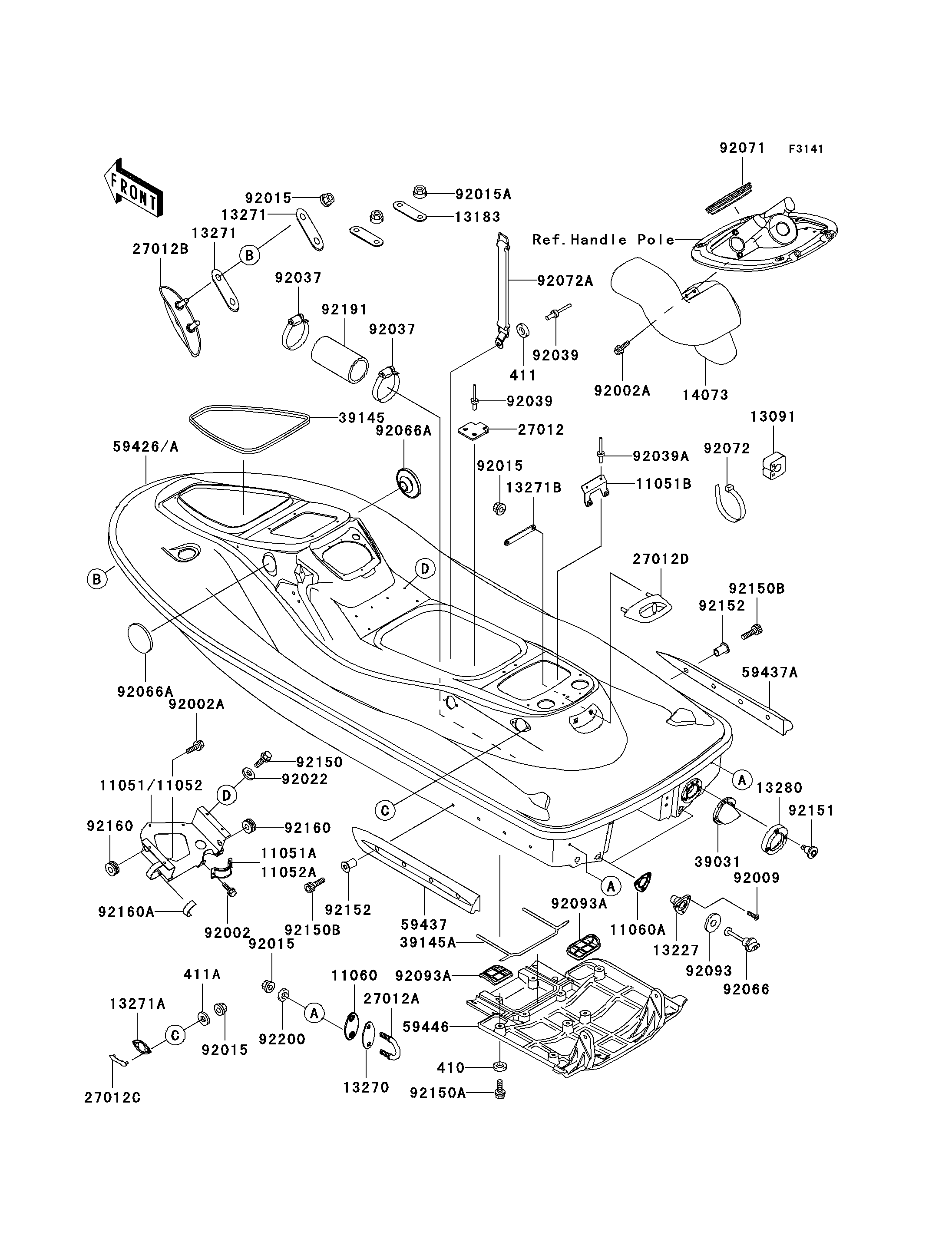

2001 1100 STX D.I. - Hull

DOWNLOAD PDF
SELECT A NEW PART
11051
11051
11051A
11051A
11051B
11051B
11060
11060
11060A
11060A
13091
13091
13183
13183
13227
13227
13270
13270
13271
13271
13271
13271
13271A
13271A
13271B
13271B
13280
13280
14073
14073
27012
27012
27012A
27012A
27012B
27012B
27012C
27012C
27012D
27012D
39031
39031
39145
39145
39145A
39145A
59437
59437
59437A
59437A
59446
59446
92002
92002
92002A
92002A
92002A
92002A
92009
92009
92015
92015
92015
92015
92015
92015
92015
92015
92015A
92015A
92022
92022
92037
92037
92037
92037
92039
92039
92039
92039
92039A
92039A
92066
92066
410
410
411
411
411A
411A
92066A
92066A
92066A
92066A
92071
92071
92072
92072
92072A
92072A
92093
92093
92093A
92093A
92093A
92093A
92150
92150
92150A
92150A
92150B
92150B
92150B
92150B
92151
92151
92152
92152
92152
92152
92160
92160
92160
92160
92160A
92160A
92191
92191
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,EMM&CONDENSOR 11051 11051-3734 1
BRACKET,FILTER 11051A 11051-3801 1
BRACKET,BREATHER-BILGE 11051B 11051-3802 1
GASKET,U HOOK,RR 11060 11060-3800 2
GASKET,DRAIN PLUG 11060A 11060-3801 2
HOLDER 13091 13091-3780 2
PLATE 13183 13183-3809 2
HOUSING,DRAIN PLUG 13227 13227-3711 2
PLATE 13270 13270-3860 2
PLATE 13271 13271-3724 2
PLATE,CARGO NET HOOK 13271A 13271-3755 4
PLATE,REAR TOWING HOOK 13271B 13271-3774 1
HOLDER,EXHAUST VALVE 13280 13280-3718 1
DUCT 14073 14073-3781 1
HOOK 27012 27012-3787 1
HOOK 27012A 27012-3797 2
HOOK,BOW,F.BLACK 27012B 27012-3822-6Z 1
HOOK,CARGO NET,G.SILVER 27012C 27012-3828-F2 4
HOOK,REAR TOWING,F.BLACK 27012D 27012-3836-6Z 1
CAP-END 39031 39031-3704 1
TRIM-SEAL,L=1412 39145 39145-3748 1
TRIM-SEAL,JET PUMP COVER 39145A 39145-3768 1
STABILIZER,LH,F.BLACK 59437 59437-3733-6Z 1
STABILIZER,RH,F.BLACK 59437A 59437-3734-6Z 1
COVER-JET PUMP 59446 59446-3752 1
BOLT,6X16 92002 92002-3728 2
BOLT,6X20 92002A 92002-3755 3
SCREW,TAPPING,4X16 92009 92009-3849 6
NUT,FLANGED,8MM 92015 92015-3709 16
NUT,6MM 92015A 92015-3767 4
WASHER,6.2X20X2 92022 92022-3714 4
CLAMP 92037 92037-509 2
RIVET,4.8MM 92039 92039-3719 3
RIVET 92039A 92039-3755 2
PLUG,RR,DRAIN 92066 92066-3744 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 10
WASHER-PLAIN,5MM 411 411S0500 1
WASHER-PLAIN,8MM 411A 411S0800 8
PLUG 92066A 92066-3772 2
GROMMET 92071 92071-3812 1
BAND,L=201 92072 92072-3778 2
BAND,314X18 92072A 92072-3814 1
SEAL 92093 92093-3720 2
SEAL 92093A 92093-3765 2
BOLT,6X18 92150 92150-3729 4
BOLT,SOCKET,6X18 92150A 92150-3775 10
BOLT,SOCKET,6X30 92150B 92150-3822 8
BOLT,SOCKET,M6,SHOULDER 92151 92151-3746 3
COLLAR 92152 92152-3715 8
DAMPER 92160 92160-1012 2
DAMPER 92160A 92160-3793 1
TUBE,39X51X90 92191 92191-3744 1
WASHER 92200 92200-3779 4
HULL-COMP,P.BEIGE 59426 59426-3899-QF 1 US
