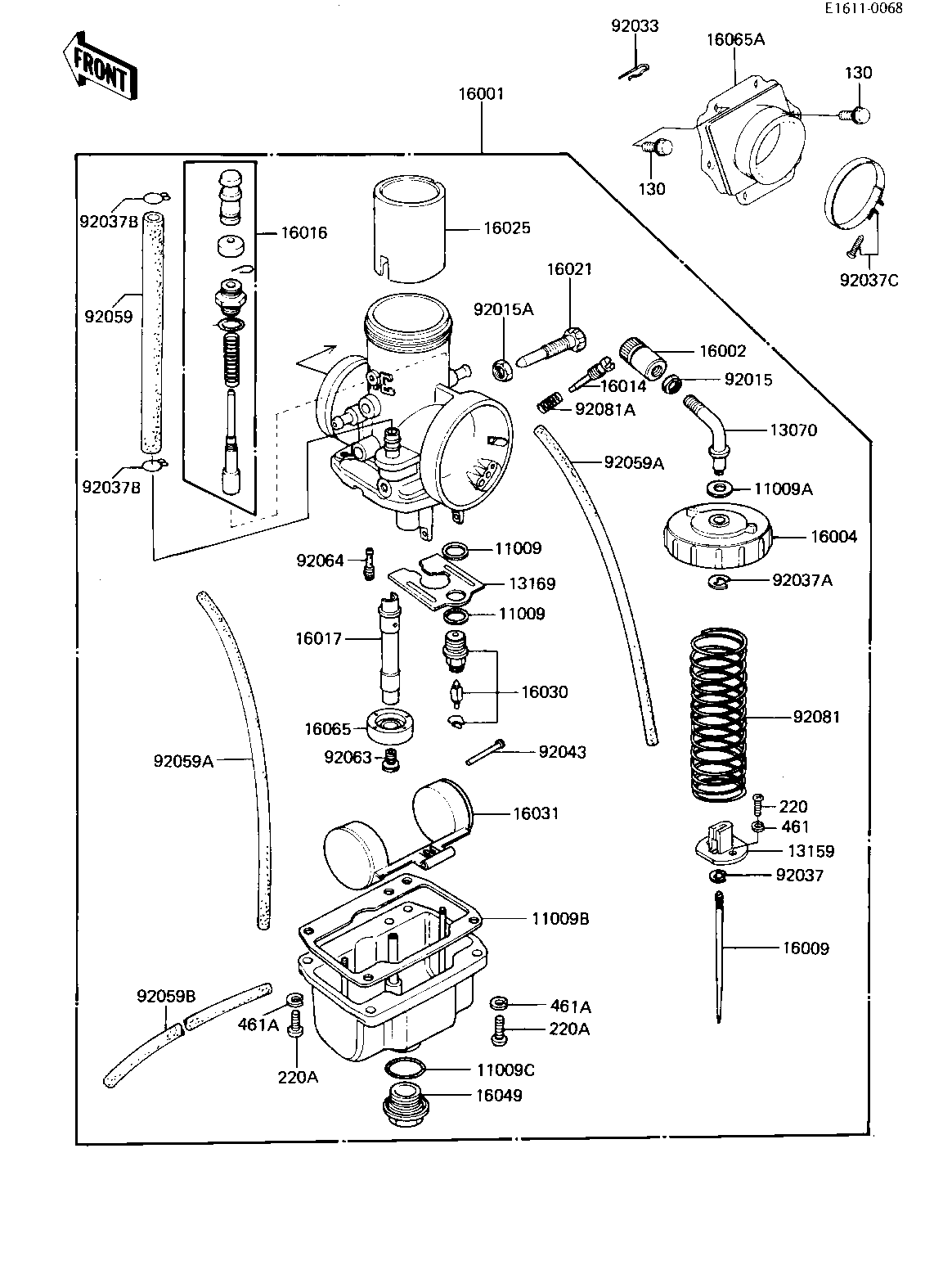

1982 KX250 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT VALVE 11009 11009-1076 2
GASKET,CABLE GUIDE 11009A 11009-1191 1
GASKET,FLOAT CHAMBER 11009B 16019-028 1
GASKET-COVER 11009C 16038-009 1
GUIDE,CABLE 13070 13070-1014 1
CONNECTOR,THROTTLE 13159 13159-1010 1
PLATE,FLOAT CHAMBER 13169 13169-1520 1
CARBURETOR 16001 16001-1477 1
ADJUSTER,CABLE 16002 16002-1006 1
TOP,MIXING CHAMBER 16004 16004-1010 1
JET NEEDLE,6I2 16009 16009-1116 1
SCREW 16014 16014-006 1
PLUNGER,STARTER 16016 16016-1026 1
NEEDLE JET,R-8 16017 16017-1111 1
SCREW,THROT VLV ADJST 16021 16021-1030 1
VALVE,THROTTLE,CA3.0 16025 16025-1071 1
VALVE-FLOAT 16030 16030-1015 1
FLOAT 16031 16031-030 1
COVER,MAIN JET 16049 16049-1005 1
HOLDER-CARBURETOR 16065 16065-1052 1
HOLDER-CARBURETOR 16065A 16065-1048 1
NUT CABLE ADJUST LOCK 92015 16003-004 1
NUT-CABLE ADJUST LOCK 92015A 16003-006 1
CIRCLIP 92033 92036-018 1
CIRCLIP 92037 16008-010 1
CIRCLIP,CABLE GUIDE 92037A 16008-011 1
CLAMP,CARB CONECT HOS 92037B 92037-056 2
CLAMP,CARBURETOR HLDR 92037C 92037-116 1
PIN,FLOAT 92043 16032-008 1
HOSE,FUEL,6.5OX11.5O 92059 92059-1026 1
TUBE,3.5X6.5X410 92059A 92059-1142 2
TUBE,3.5X6.5X300 92059B 92059-1235 1
MAIN JET,#165R 92063 92063-1020 1
PILOT JET,#A15 92064 92064-1018 1
SPRING,THROTTLE VALVE 92081 16006-028 1
SPRING-THR STOP SCREW 92081A 16022-007 1
SPRING-THR STOP SCREW 130 16022-007 6
SCREW PAN HEAD 3X8 220 220B0308 2
UNAVAILABLE IN PRICE BOOK 220A 214B0516A 4
WASHER SPRING 3MM 461 461F0300 2
WASHER SPRING 5MM 461A 461F0500 4
