Part Item Information

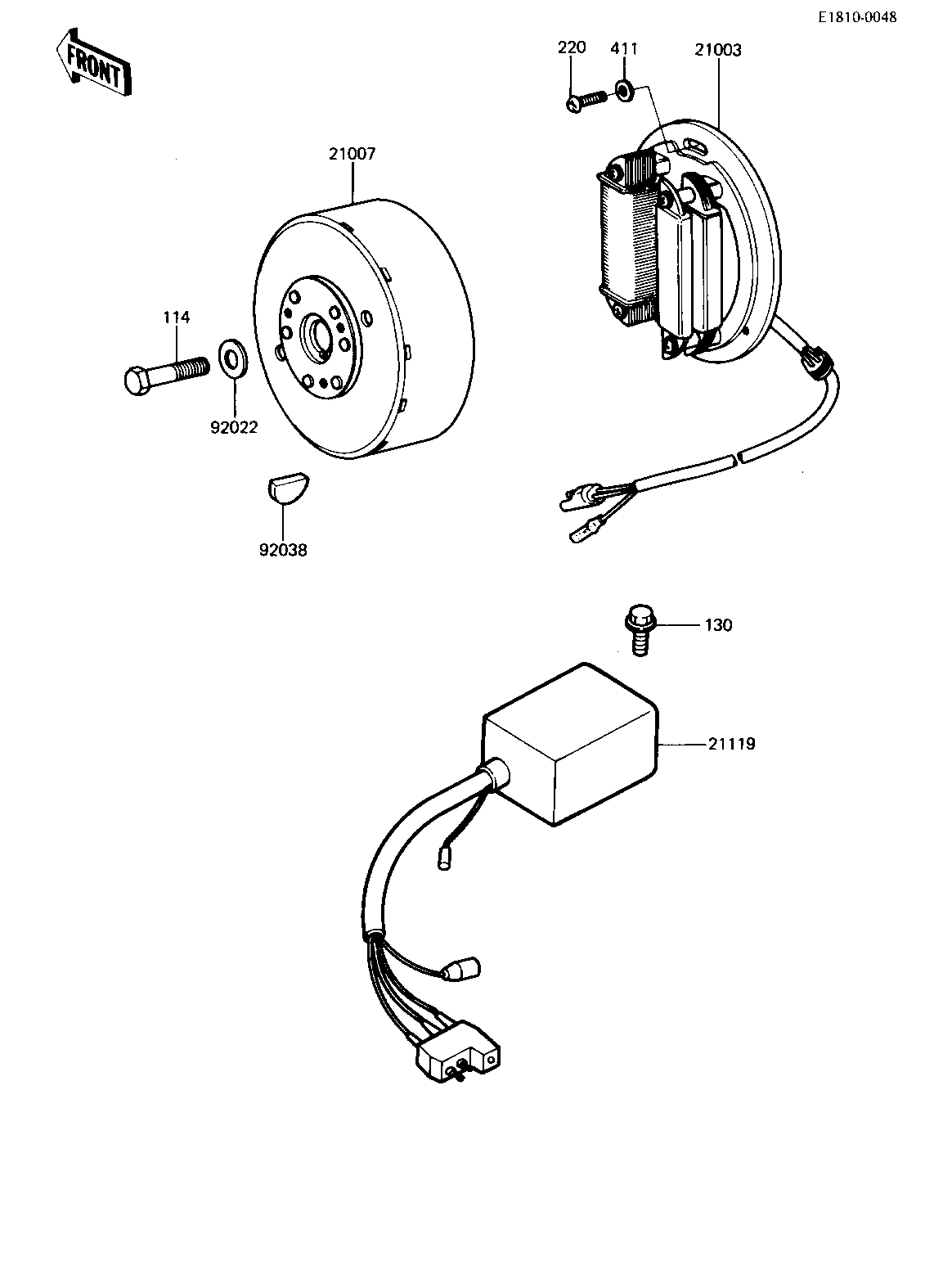

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-1060 1
ROTOR 21007 21007-1049 1
IGNITER 21119 21119-1044 1
WASHER,PLAIN,8MM 92022 92022-276 1
WOODRUFF KEY 92038 92038-001 1
BOLT-HEX HEAD 8X30 114 114G0830 1
BOLT-FLANGED,6X16 130 130G0616 1
SCREW PAN HEAD 6X16 220 220B0616 2
WASHER PLAIN 6MM 411 411B0600 2
