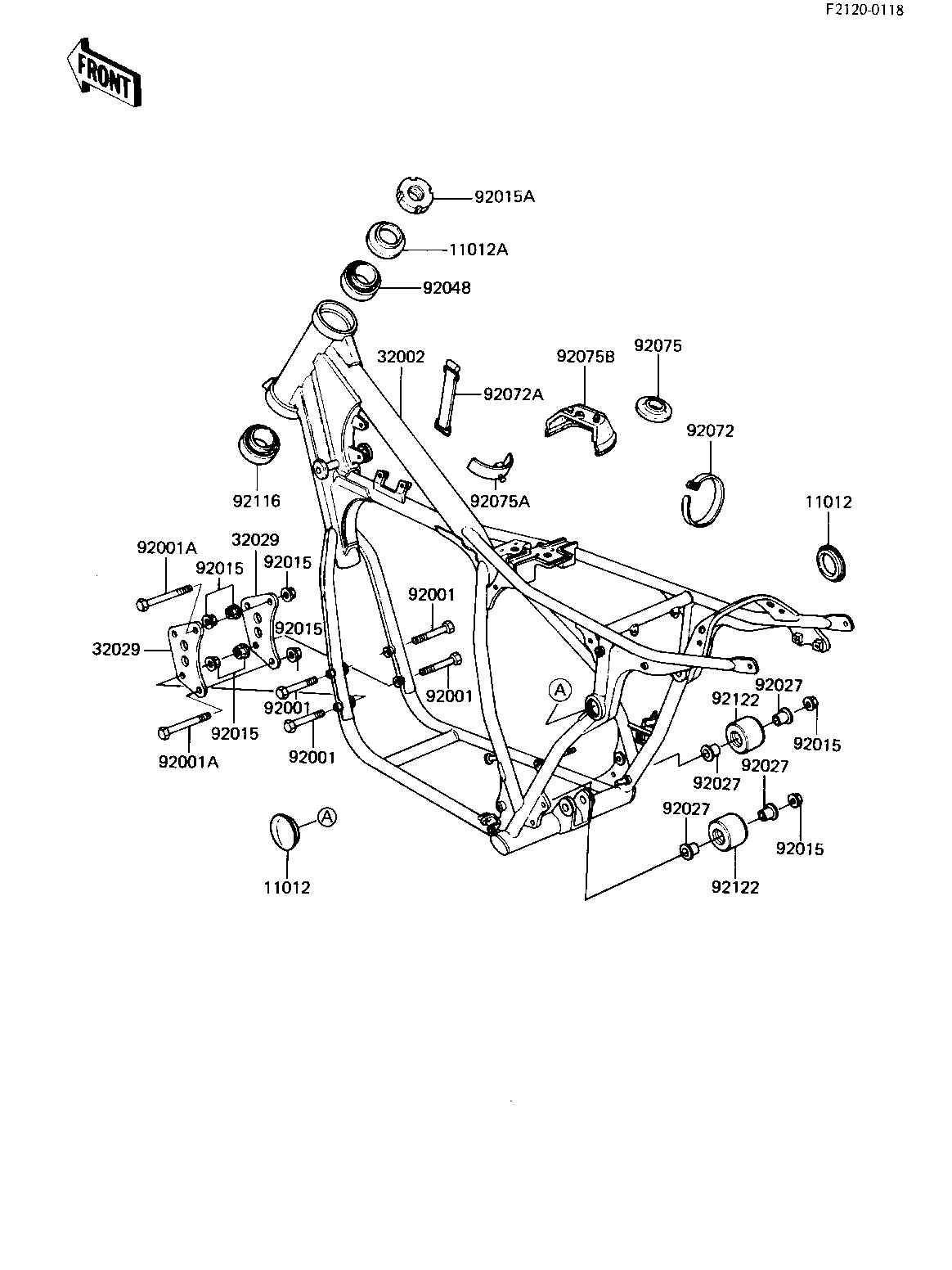

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,UNI TRAK 11012 11012-1211 2
CAP,STEERING STEM 11012A 46098-015 1
FRAME-COMP 32002 32002-1377 1
BRACKET-ENGINE 32029 32029-1333 2
BOLT,8X57 92001 92001-1493 4
BOLT,8X72 92001A 92001-1494 2
NUT-8MM 92015 92015-1143 8
NUT 92015A 92015-1546 1
COLLAR,CHAIN GUIDE 92027 92027-1383 4
BEARING,STEERING STEM 92048 92047-017 1
BAND,SHORT 92072 92072-030 3
BAND,RESERVE TANK 92072A 92072-1085 1
DAMPER,RESERVE TANK 92075 92075-1358 1
DAMPER,RESERVE TANK 92075A 92075-1359 1
DAMPER 92075B 92075-1366 1
BEARING,ROLLER,32006 92116 92116-1008 1
ROLLER,CHAIN GUIDE 92122 92122-1021 2
