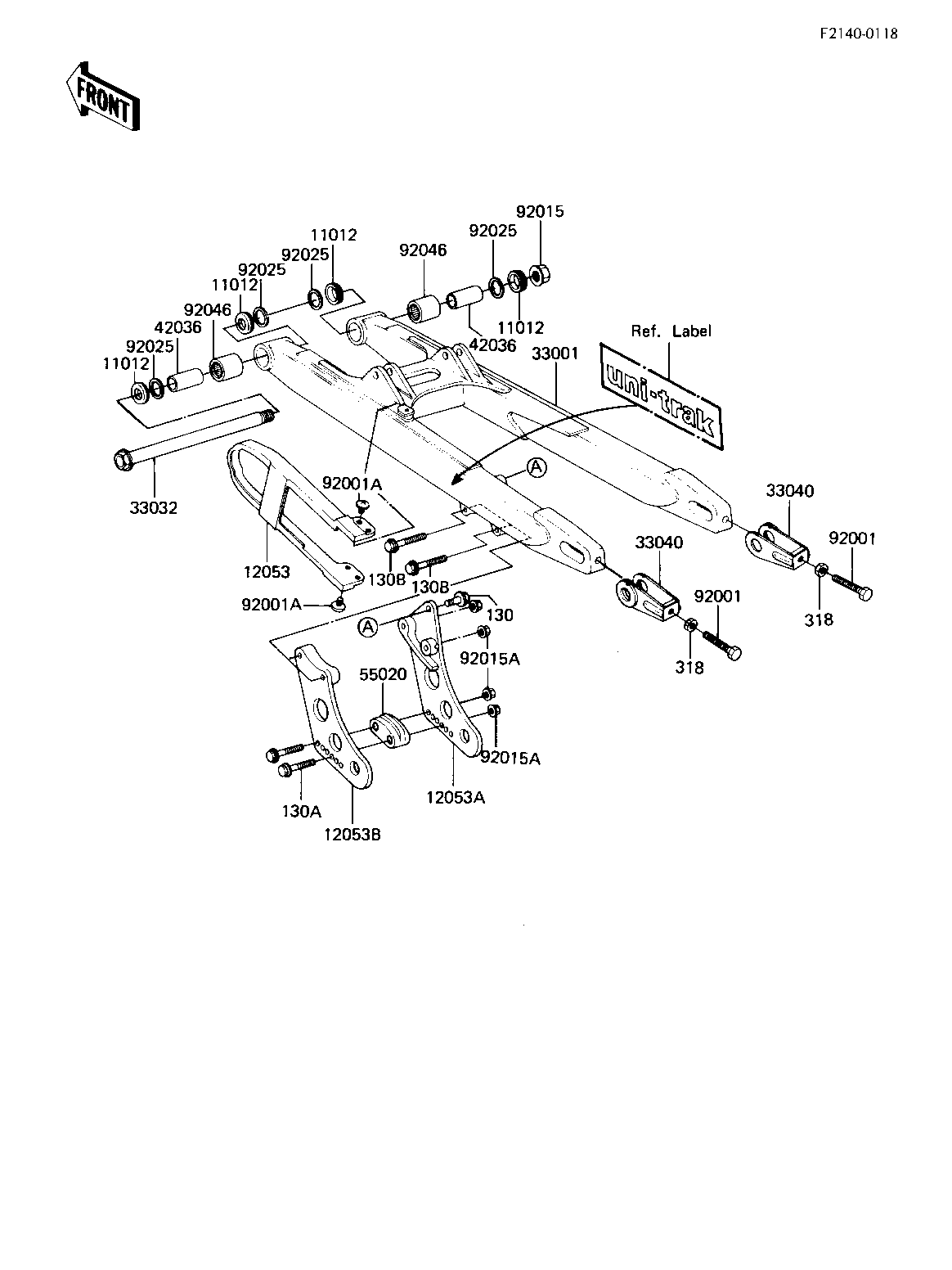

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 11012-1207 4
GUIDE-CHAIN 12053 12053-1062 1
GUIDE-CHAIN 12053A 12053-1063 1
GUIDE-CHAIN 12053B 12053-1064 1
ARM-COMP-SWING 33001 33001-1125 1
SHAFT-SWING ARM 33032 33032-1042 1
ADJUSTER,CHAIN 33040 33040-4004 2
SLEEVE,SWING ARM 42036 42036-1056 2
GUARD,CHAIN 55020 55020-1060 1
BOLT,CHAIN ADJUSTER 92001 92001-1027 2
SCREW,6X10 92001A 92009-1286 2
NUT,14MM 92015 92015-1407 1
NUT-6MM 92015A 92015-1078 4
SHIM,SWING ARM 92025 92025-1116 4
BRG,NEEDLE,HMK2030 92046 92046-1031 2
BOLT,FLANGED,6X14 130 130G0614 1
BOLT,FLANGED,6X45 130A 130G0645 2
BOLT,FLANGED,6X55 130B 130G0655 2
NUT 8MM 318 318G0800 2
