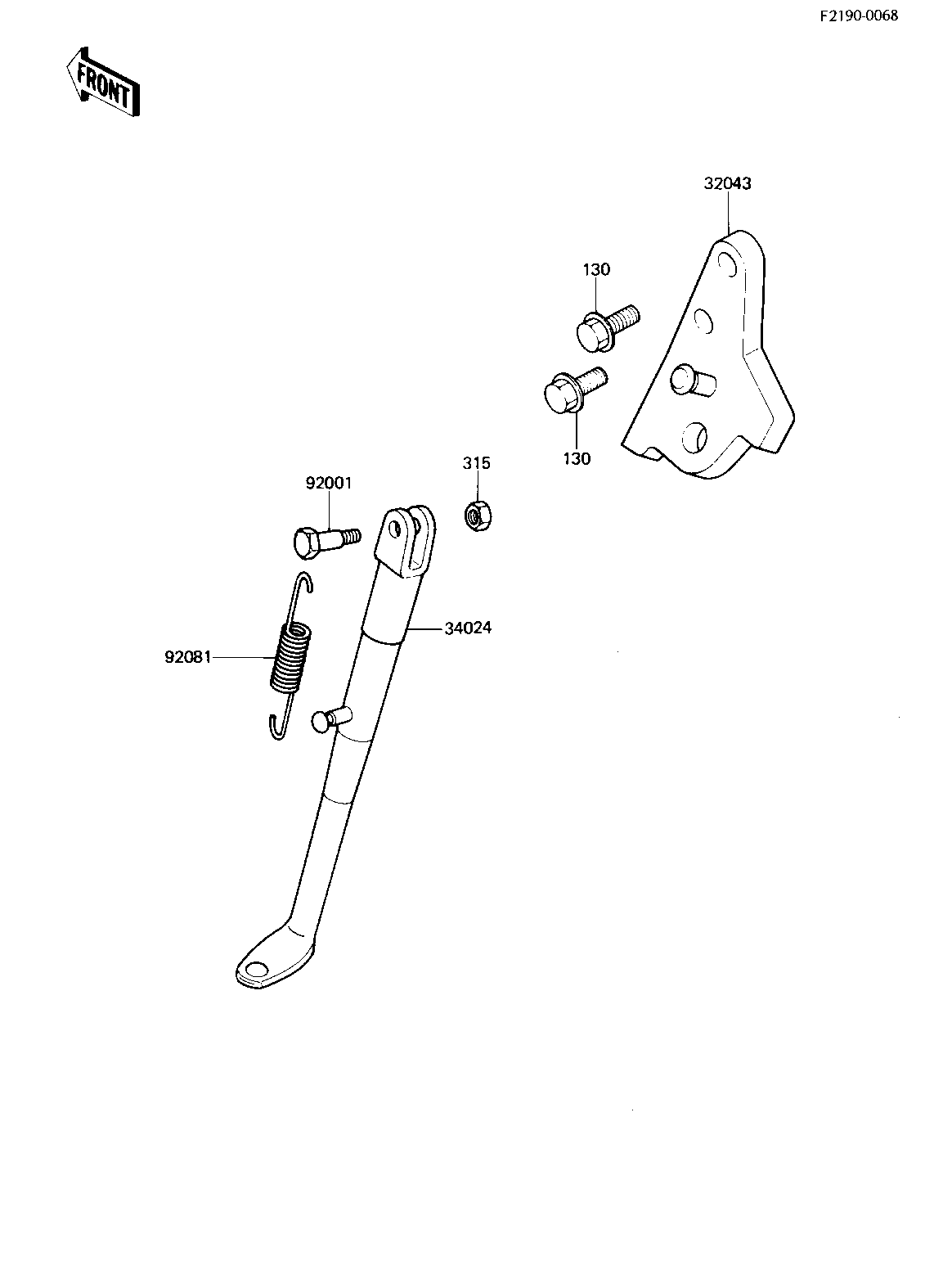

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE 32043 32043-1100 1
STAND-SIDE 34024 34024-1041 1
BOLT, SIDE STAND FIT 92001 92003-157 1
SPRING-SIDE STAND 92081 34025-004 1
BOLT-FLANGED,10X16 130 130G1016 2
NUT 10MM 315 315B1000 1
