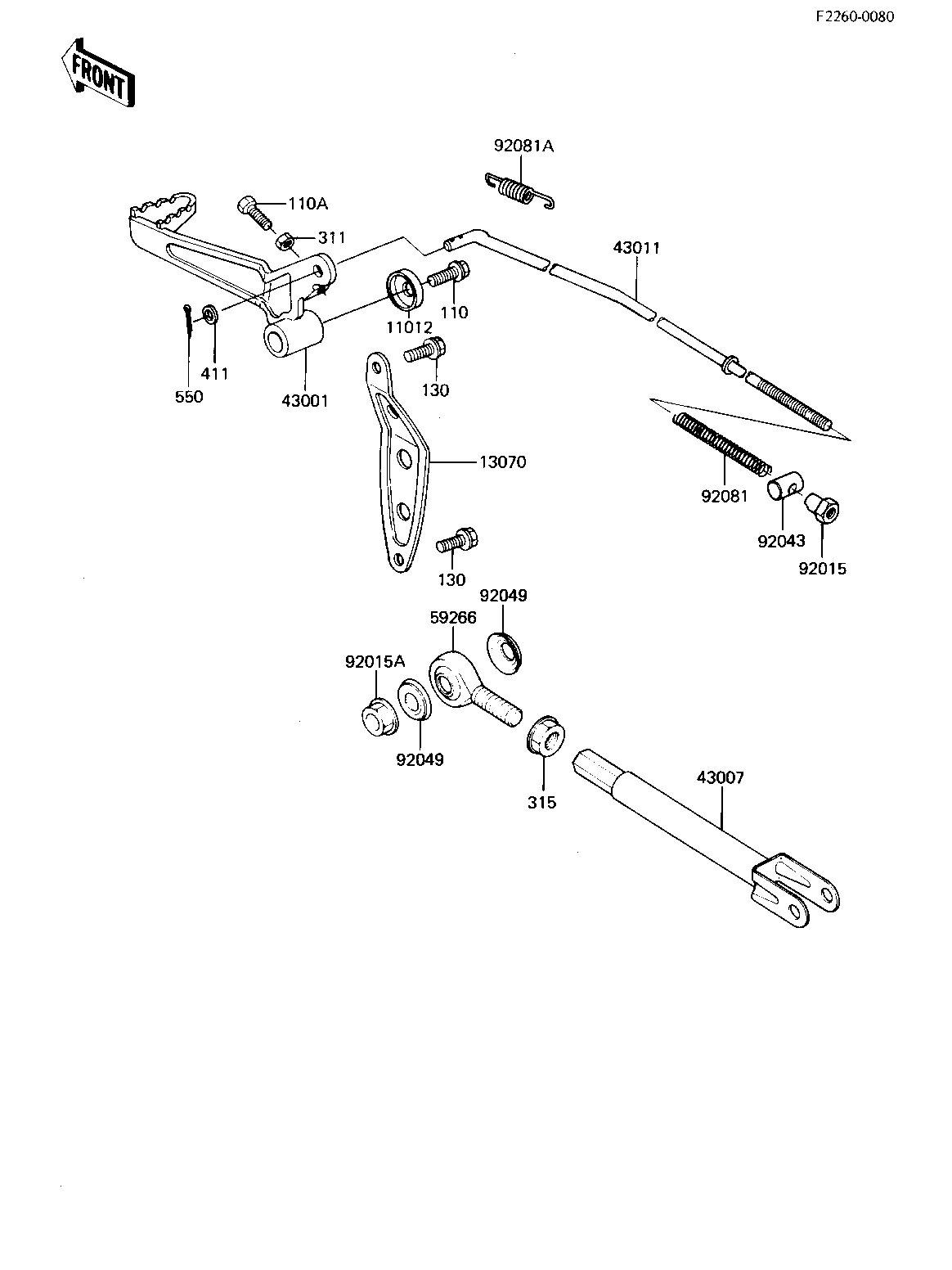

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1204 1
GUIDE,BRAKE ROD 13070 13070-1052 1
LEVER-BRAKE 43001 43001-1074 1
ROD-TORQUE 43007 43007-1032 1
ROD-BRAKE 43011 43011-1043 1
JOINT,BALL 59266 59266-1005 1
NUT-BRAKE ROD ADJUST 92015 92015-042 1
NUT,10MM 92015A 92015-1415 1
PIN,BRAKE 92043 92043-1024 1
OIL SEAL,BALL JOINT 92049 92049-1072 2
SPRING,BRAKE ROD 92081 43012-001 1
SPRING 92081A 92081-1456 1
BOLT,6X10 110 112G0610 1
BOLT-UPSET 110A 112G0622 1
BOLT,FLANGED,6X12 130 130G0612 2
NUT 6MM 311 311B0600 1
NUT 10MM 315 315G1000 1
WASHER PLAIN 6MM 411 411B0600 1
PIN COTTER 2.0X15 550 550D2015 1
